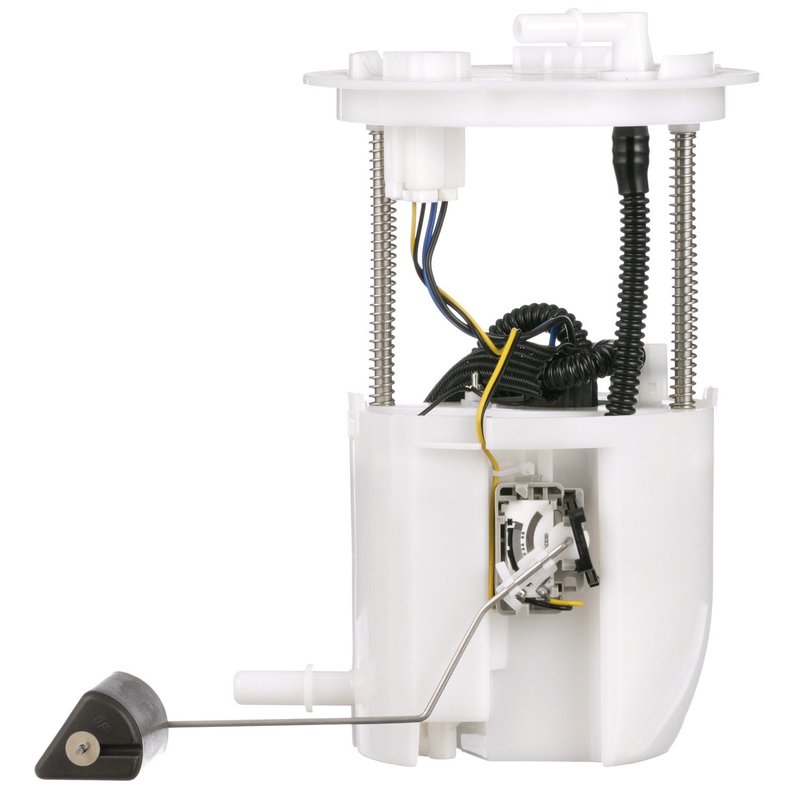

Delphi FG1757 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1757 fuel pump module assembly is designed specifically for Ford Flex vehicles, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for efficient operation.

• Compatible with Ford Flex models
• 12.0 Volt electric fuel pump
• Includes fuel level sender assembly with float arm
• Internal strainer and quick connect outlet
• Maximum pressure rating of 109 psi with system pressure at 55 psi
• Blade-type terminals, 4 male terminals included
• Gasket and seal included for secure installation

Technical Specifications and Features

The Delphi FG1757 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features a 0.375-inch outlet outside diameter with a quick connect outlet type for easy integration. The module includes an internal strainer to protect the pump from debris and a fuel level sender assembly to provide accurate fuel gauge readings. The pump delivers an average flow rating of 34 liters per hour and maintains system pressure at 55 psi, with a maximum pressure capacity of 109 psi. The assembly uses blade-type male terminals, with four terminals total, ensuring secure electrical connections. A gasket and seal are included to prevent leaks during installation.

Application and Common Issues Addressed

• Restores proper fuel delivery in Ford Flex vehicles
• Resolves fuel gauge inaccuracies with integrated sender assembly
• Eliminates fuel pump noise and inconsistent pressure
• Prevents engine stalling caused by fuel starvation
• Replaces worn or damaged in-tank fuel pump modules

Installation Notes and Tips

Installation of the Delphi FG1757 fuel pump module assembly requires removal of the fuel tank to access the in-tank module. Ensure the vehicle is depressurized before beginning work. The included gasket and seal should be properly seated to avoid fuel leaks. The quick connect outlet simplifies fuel line connection, and the blade-type terminals require secure attachment to the vehicle’s wiring harness. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford Flex vehicles. It undergoes rigorous testing to ensure durability and reliable performance. The product includes a fuel level sender assembly and comes with an instruction sheet to assist with installation. Warranty coverage details should be confirmed with the point of purchase or Delphi’s official documentation.
