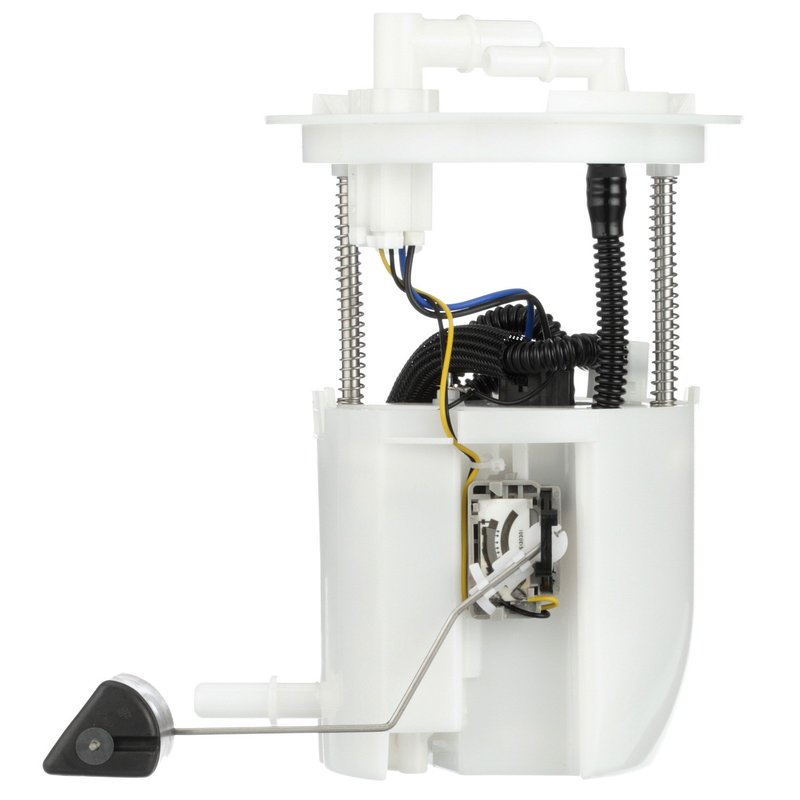

Delphi FG1758 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1758 fuel pump module assembly is designed for reliable fuel delivery in select Ford and Lincoln vehicles. Engineered as an in-tank electric fuel pump, it supports gas fuel systems with integrated components to maintain consistent pressure and flow.

• Compatible with Ford Edge and Lincoln MKX models
• 12.0-volt electric pump with an average flow rating of 51 liters per hour
• Includes internal strainer and fuel level sender assembly
• Features a 0.375-inch outlet outside diameter with quick connect outlet type
• Equipped with a regulator and four male blade terminals for secure electrical connections
• Designed for left-side installation within the fuel tank
• System pressure rated at 65 psi for optimal fuel delivery

Technical Details and Specifications

The Delphi FG1758 fuel pump module assembly operates at 12 volts and is intended for gasoline fuel systems. It features an internal strainer inlet type to filter fuel before delivery, reducing contaminants that could affect engine performance. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. Electrical connections are made via four male blade terminals, ensuring compatibility with factory wiring harnesses. The outlet uses a quick connect type with two outlets, each having a 0.375-inch outside diameter, facilitating straightforward installation and secure fuel line attachment. The pump maintains a system pressure of 65 psi, supporting consistent fuel flow and engine efficiency.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Ford Edge and Lincoln MKX vehicles
• Addresses issues with inconsistent fuel pressure or flow leading to engine hesitation
• Resolves inaccurate fuel level readings due to malfunctioning sender assemblies
• Eliminates fuel delivery interruptions caused by clogged or damaged internal strainers
• Corrects electrical connection problems with reliable blade terminal design

Installation Notes and Tips

Installation of the Delphi FG1758 fuel pump module assembly requires removal of the fuel tank or access through the service panel, depending on vehicle configuration. Ensure the vehicle is depressurized before beginning work to prevent fuel spray. Verify the orientation of the module for left-side installation and confirm all electrical connections are secure with the four male blade terminals. Use the included seal and follow the instruction sheet carefully to avoid leaks. The quick connect outlet design simplifies fuel line attachment but verify proper seating to prevent fuel leaks.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford and Lincoln vehicles. It undergoes rigorous testing to ensure consistent performance and durability. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Refer to the product documentation or manufacturer for exact warranty terms.
