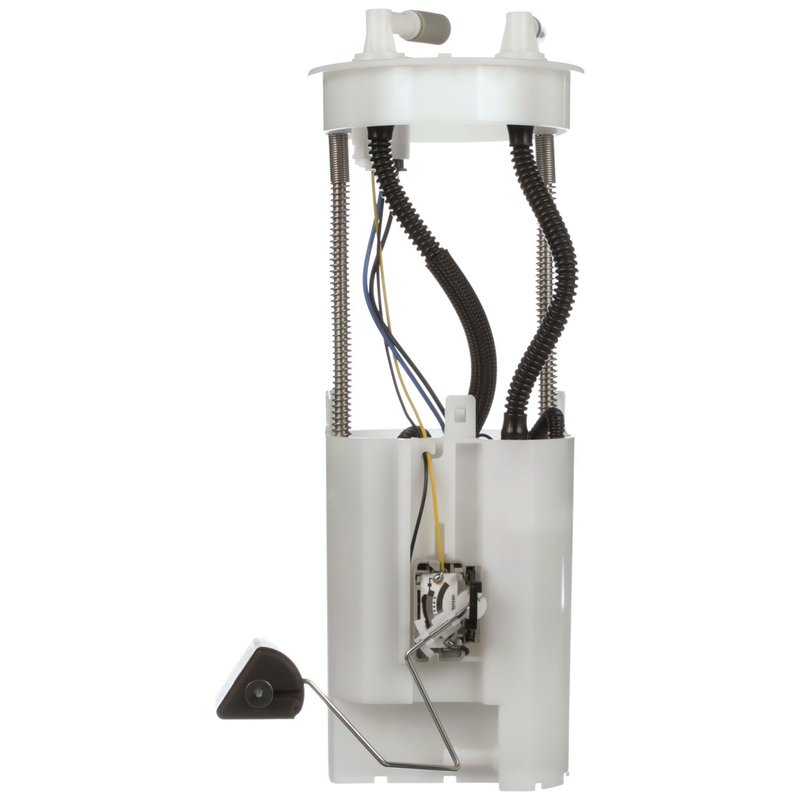

Delphi FG1759 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly for Acura RDX

The Delphi FG1759 fuel pump module assembly is designed specifically for the Acura RDX, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a seamless replacement.

• 12.0 Volt electric fuel pump with an average flow rating of 65
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer inlet and strainer included to protect the fuel system
• Regulator and gasket/seal included for proper fuel pressure and leak prevention
• Quick connect outlet type with 0.375 inch outside diameter for easy installation
• Four male blade terminals with lock ring included for secure electrical connections
• Designed for in-tank installation on the left side of the fuel tank
• System pressure rated at 51 psi to meet factory specifications

Technical Details and Features

The Delphi FG1759 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an internal electric pump with a resistance range from 158 ohms when empty to 10 ohms when full, ensuring accurate fuel level readings. The module includes a built-in regulator to maintain consistent fuel pressure at 51 psi, which is critical for optimal engine performance. The assembly comes with a strainer inlet and internal strainer to filter out contaminants, protecting the fuel injectors and engine components. The quick connect outlet with a 0.375 inch diameter allows for straightforward connection to the fuel lines. Four male blade terminals provide reliable electrical connectivity, secured by the included lock ring and gasket to prevent leaks and maintain system integrity.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Acura RDX models requiring a standard replacement fuel pump module. It is designed for in-tank installation on the left side, making it suitable for vehicles with this specific configuration. The Delphi FG1759 is ideal for addressing fuel delivery issues and restoring proper fuel system function in the Acura RDX.

• Resolves fuel delivery interruptions and engine stalling
• Corrects inaccurate fuel gauge readings due to faulty sender assembly
• Eliminates fuel leaks with included gasket and lock ring
• Prevents fuel contamination with integrated strainer components
• Maintains proper fuel pressure for consistent engine performance

Installation Notes and Tips

When installing the Delphi FG1759 fuel pump module assembly, ensure the vehicle’s battery is disconnected to avoid electrical hazards. The module is designed for in-tank installation on the left side, so proper access to the fuel tank is necessary. Use the included lock ring and gasket to secure the module and prevent leaks. Verify all electrical connections are tight and correctly oriented with the four male blade terminals. It is recommended to inspect the fuel tank for debris before installation to prolong the life of the new pump module.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG1759 is a standard replacement grade part, backed by Delphi’s quality control processes. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure customer confidence in the product’s reliability.
