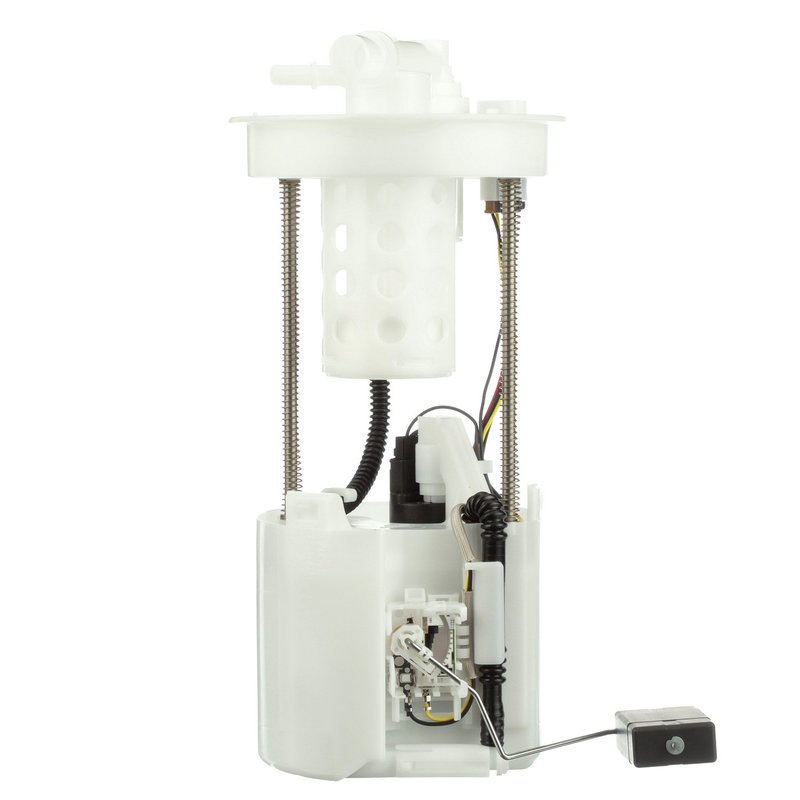

Delphi FG1769 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Honda Insight

The Delphi FG1769 fuel pump module assembly is designed specifically for Honda Insight models requiring a reliable in-tank electric fuel pump. This assembly ensures consistent fuel delivery with integrated components to maintain optimal engine performance.

• 12.0 Volt electric fuel pump with internal strainer inlet
• Includes fuel level sender assembly with float arm
• Regulator and gasket/seal included for secure installation
• Blade-type male terminals with 4-terminal configuration
• Quick connect outlet with 0.375 inch outside diameter
• Lock ring and strainer included for proper fitment
• System pressure rated at 43 psi for stable fuel flow

Technical Details and Features

The Delphi FG1769 fuel pump module assembly is engineered as a standard replacement part for Honda Insight vehicles. Operating at 12 volts, this electric pump features an internal strainer inlet and a quick connect outlet with a 0.375 inch diameter, ensuring compatibility with the vehicle’s fuel system. The assembly includes a fuel level sender with a float arm, allowing accurate fuel gauge readings. The regulator is integrated to maintain consistent system pressure at 43 psi. The module comes with a lock ring, gasket, and seal to secure the pump within the fuel tank and prevent leaks. The blade-type male terminals (4 in total) provide reliable electrical connections. Resistance values range from 780 ohms when empty to 20 ohms when full, supporting proper fuel level sensing. Average current draw is approximately 10 amps during operation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Honda Insight models requiring part number FG1769. It is designed for in-tank installation and supports gasoline fuel systems. The assembly addresses common fuel delivery issues such as:

• Intermittent or no fuel pump operation
• Inaccurate fuel level readings
• Fuel pressure drops causing engine hesitation
• Fuel leaks due to worn seals or gaskets
• Electrical connection failures at the pump terminals

Installation Notes and Tips

When installing the Delphi FG1769 fuel pump module assembly, ensure the vehicle’s fuel tank is properly depressurized before removal. Use the included lock ring to secure the module firmly in place and verify the gasket and seal are correctly positioned to prevent leaks. Connect the blade-type male terminals carefully to avoid damage. Confirm the quick connect outlet is fully engaged to maintain fuel system integrity. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure durability and reliable performance in Honda Insight vehicles. While specific warranty terms may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship under normal use.
