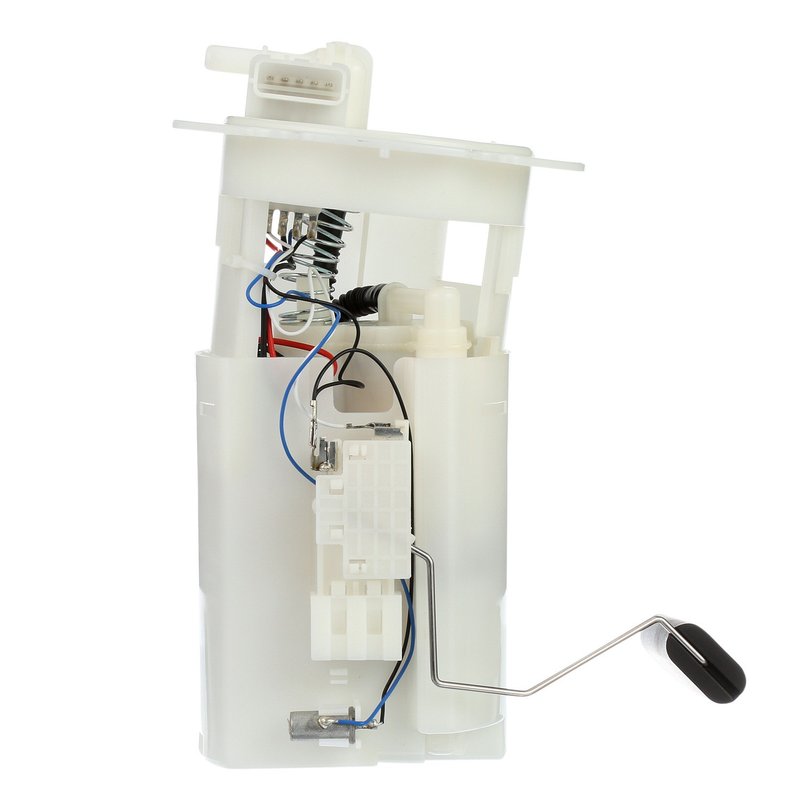

Delphi FG1783 Fuel Pump Module Assembly

Delphi FG1783 Fuel Pump Module Assembly Overview

The Delphi FG1783 fuel pump module assembly is designed specifically for Nissan Altima models requiring a reliable in-tank electric fuel pump. This assembly ensures consistent fuel delivery with integrated components to maintain optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Maximum pressure rating of 94 psi and system pressure of 51 psi
• Blade-type male terminals with 5 terminal quantity
• Regulator and strainer included for fuel flow control and filtration
• Average flow rating of 22 and average current draw of 7 amps

Technical Details and Features

The Delphi FG1783 fuel pump module assembly is engineered for gas fuel systems in Nissan Altima vehicles. It operates at 12 volts and features an internal electric pump designed to deliver a steady fuel flow rate of 22 liters per hour. The assembly includes a built-in fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump’s internal strainer inlet helps prevent debris from entering the fuel system, while the quick connect outlet with a 0.375-inch outside diameter allows for secure and efficient fuel line connections.

With a maximum pressure capacity of 94 psi and a system pressure of 51 psi, this module maintains consistent fuel delivery under various driving conditions. The blade-type male terminals (five in total) ensure reliable electrical connections. Resistance values range from 81 ohms when empty to 6 ohms when full, supporting proper fuel level sensor operation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Nissan Altima models requiring a standard replacement fuel pump module. It is designed for in-tank installation and supports gasoline fuel systems. The Delphi FG1783 is suitable for addressing common fuel delivery issues in these vehicles.

• Resolves fuel delivery interruptions and engine stalling
• Replaces faulty or worn-out fuel pump modules
• Corrects inaccurate fuel level readings due to sensor failure
• Improves fuel system pressure consistency
• Prevents fuel contamination with integrated strainer

Installation Notes and Tips

When installing the Delphi FG1783 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. The module is designed for in-tank installation and requires careful handling of the float arm and electrical terminals. Verify that the quick connect outlet and blade terminals are securely connected to prevent leaks and electrical issues. Follow the included instruction sheet for detailed installation steps and torque specifications.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for Nissan Altima vehicles. The product includes a fuel level sender assembly and strainer to maintain system integrity. While specific warranty details are not provided here, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
