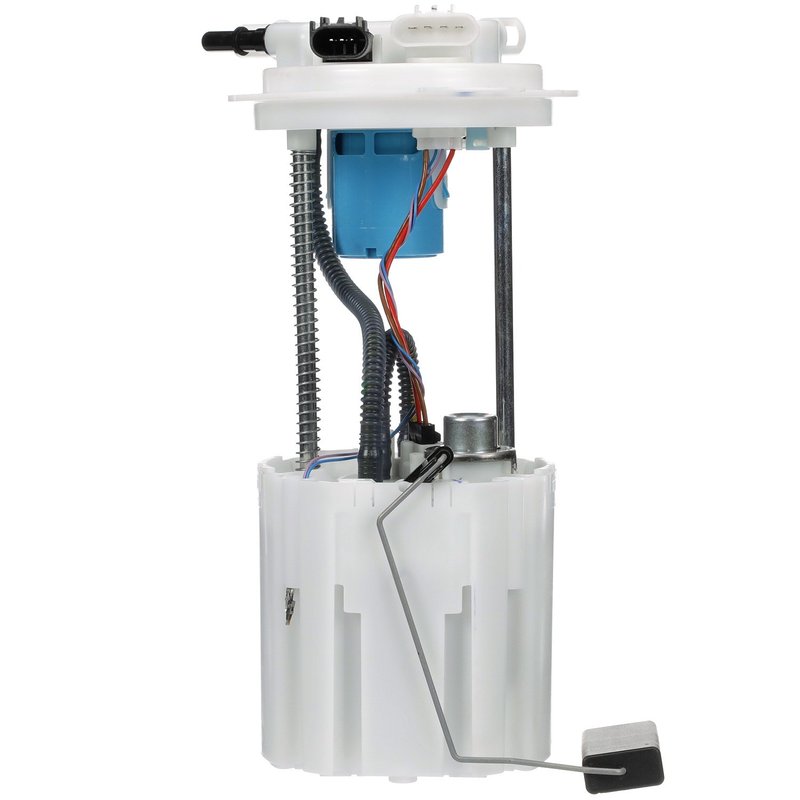

Delphi FG1804 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Pontiac Sky and Saturn Solstice

The Delphi FG1804 fuel pump module assembly is designed specifically for in-tank installation in Pontiac Sky and Saturn Solstice models. This electric fuel pump module ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet with 0.375 inch diameter
• Four male blade terminals for secure electrical connections
• System pressure rated at 51 psi for reliable fuel flow
• Includes gasket and seal for proper installation
• Vapor pressure sensor integrated for emissions control
• Standard replacement grade for direct fit and function

Detailed Product Features and Specifications

The Delphi FG1804 fuel pump module assembly is engineered for gasoline fuel systems in Pontiac Sky and Saturn Solstice vehicles. It operates at 12 volts and features an electric pump type with an average current draw of 10 amps. The module includes an internal strainer inlet and a quick connect outlet with an outside diameter of 0.375 inches, supporting three outlet connections. The assembly comes with a fuel level sender assembly, including a float arm, to provide accurate fuel gauge readings. Four male blade terminals ensure reliable electrical connectivity, while the included gasket and seal help maintain a secure, leak-free installation. The system pressure is rated at 51 psi, and the module incorporates a vapor pressure sensor to assist with emissions management. Resistance values range from 40 ohms when empty to 250 ohms when full, ensuring precise fuel level measurement.

Compatible Vehicles and Applications

• Designed for use in Pontiac Sky models requiring a fuel pump module assembly
• Compatible with Saturn Solstice fuel systems needing a standard replacement pump
• Ideal for addressing fuel delivery issues such as inconsistent fuel pressure or inaccurate fuel gauge readings
• Suitable for replacing faulty or worn fuel pump modules in specified vehicles
• Supports gasoline fuel systems with in-tank pump configuration

Installation Notes and Tips

When installing the Delphi FG1804 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The included gasket and seal should be properly seated to prevent leaks. Verify electrical connections using the four male blade terminals and confirm the quick connect outlet fittings are secure. This module does not include a lock ring, so reuse the original or acquire a compatible replacement if necessary. Follow the vehicle manufacturer’s service manual for detailed installation procedures and torque specifications.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for fit, form, and function. The FG1804 is a standard replacement grade part, providing reliable performance for Pontiac Sky and Saturn Solstice vehicles. This product includes a warranty covering defects in materials and workmanship, ensuring confidence in your purchase and long-term durability.
