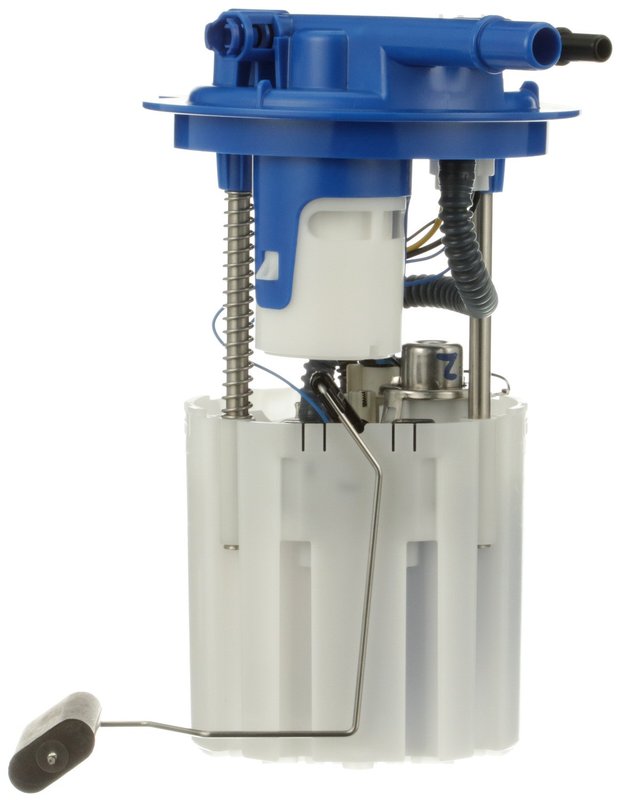

Delphi FG1806 Fuel Pump Module Assembly

Fuel Pump Module Assembly for OE-Style Fuel Delivery

The Delphi FG1806 fuel pump module assembly is a standard replacement for in-tank fuel system service on select 2008 Chevrolet Uplander and 2008 Pontiac Montana applications. Built with Delphi OE heritage and fuel system knowledge, it includes the pump module, float arm, seals, instruction sheet, and integrated fuel level sender components for a complete repair.

Key Features

• In-tank electric fuel pump module assembly
• 12-volt operation with 58 psi system pressure
• Fuel regulator included
• Fuel level sender assembly included
• Strainer included with internal strainer design
• Quick-connect outlet with 3 outlets
• Blade terminals, 4 terminals, male terminal gender
• Gasket or seal included
• Fuel type: flex fuel applications
• Vapor pressure sensor included

Detailed Description

Delphi FG1806 is an in-tank fuel pump module assembly engineered for direct fuel delivery service on the 2008 Chevrolet Uplander and 2008 Pontiac Montana. It features a standard replacement design with an electric pump, integrated regulator, fuel level sender assembly, and vapor pressure sensor, helping restore proper fuel system operation in vehicles that rely on precise pressure and fuel level reporting. Delphi’s OE background is reflected in the module’s construction and application coverage, making FG1806 a practical choice for fuel system repair.

This part cross-references Monroe Shocks & Struts (e.g., CFG1806, E3800M) for the same application. The Delphi FG1806 is also identified by part number FG1806 for ordering and catalog lookup.

What It Helps Fix

• Hard starting caused by weak or failing fuel pump output
• Engine stalling from inconsistent fuel pressure
• Fuel gauge inaccuracies from a worn sender assembly
• Fuel delivery issues in flex-fuel vehicles
• Check engine concerns related to fuel pressure or vapor sensor faults

Installation Notes and Tips

Fits 2008 Chevrolet Uplander, N/A. Fits 2008 Pontiac Montana, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify outlet style, terminal configuration, and system pressure before installation. The module uses quick-connect outlets and blade terminals, and the package includes seals and an instruction sheet. Part number FG1806 should be matched to the vehicle’s fuel system requirements before service begins.

Quality Assurance

Delphi builds this fuel pump module assembly using OE experience and aftermarket application knowledge developed over decades of supplying major automakers. FG1806 is a standard replacement fuel pump module assembly for select Chevrolet and Pontiac models, with components and specifications aligned to the listed applications.
