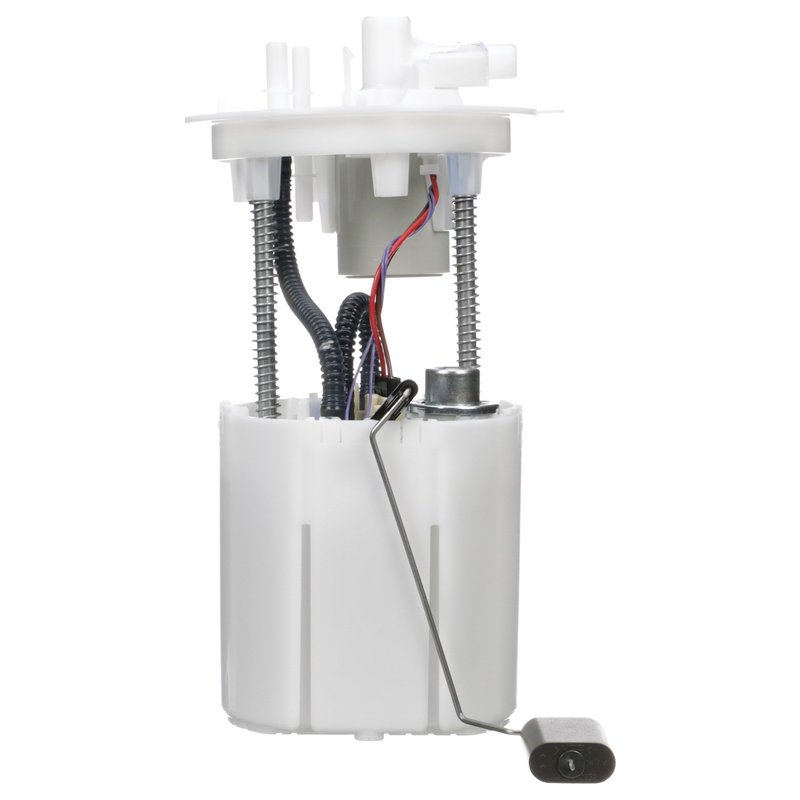

Delphi FG1814 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

Delphi FG1814 Fuel Pump Module Assembly

Brand Delphi FG1814
Outlet Outside Diameter 0.375
Voltage 12.0
Fuel Type Gas
Regulator Included Yes
Maximum Pressure 94.0
Terminal Type Blade
Gasket Or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick connect
Outlet Quantity 3
In Tank or External In tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw 10
Average Flow Rating 32
Pump Type Electric
Fuel Level Sender Assembly Included Yes
Item Grade Standard replacement
Package Contents Fuel pump module assembly w/float arm, seal, instruction sheet
System Pressure 84 psi
Vapor Pressure Sensor No
Fits Chevrolet · 2 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

OE heritage. Built with 100 years of OE experience and supplier knowledge.

Complete assembly. Includes regulator, strainer, seal, and fuel level sender.

Cross-references Spectra Premium SP6743M, 13589299 and 13592647 for the same application. See all 6.

$347.43Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $347.43
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG1814 Fuel Pump Module Assembly

Delphi FG1814 is an in-tank electric fuel pump module assembly for gas applications, built with OE heritage and application knowledge drawn from Delphi’s long history supplying major automakers. It includes the fuel level sender assembly, regulator, strainer, gasket or seal, and a quick-connect outlet layout for service replacement on select vehicles.

Key Features

  • In-tank electric fuel pump module assembly for gasoline systems
  • Fits 2014-2015 Chevrolet Impala, N/A
  • Fuel pump module assembly with float arm and fuel level sender assembly included
  • Regulator included for system control
  • Strainer and gasket or seal included
  • 12V operation with blade terminals and male terminal design
  • Quick-connect outlet type with three outlets
  • Maximum pressure rating of 94.0 and system pressure of 84 psi
  • Average flow rating of 32 and average current draw of 10

Detailed Description

Delphi FG1814 is a standard replacement fuel pump module assembly engineered for select Chevrolet Impala models from 2014-2015. It is designed for in-tank installation and supports gasoline fuel systems with an integrated regulator, internal strainer, and fuel level sender assembly. The module uses a 12-volt electric pump with blade terminals, a quick-connect outlet, and a 0.375-inch outlet outside diameter for service-friendly connection points. Delphi’s OE background is reflected in the component design and broad aftermarket coverage, making FG1814 a direct replacement choice for the listed Impala applications. This part cross-references Spectra Premium SP6743M for the same application. Delphi FG1814 is also referenced by part number 13589299 for the same application.

Common Problems This Part Can Address

  • Hard starting caused by weak fuel delivery
  • Engine stalling from inconsistent fuel pressure
  • Fuel gauge errors related to sender wear
  • Low fuel pressure under load
  • Noise or failure from an aging in-tank pump module

Installation Notes and Tips

Before installing a replacement fuel pump module assembly on a 2014-2015 Chevrolet Impala, clean the fuel tank to reduce the risk of contamination reaching the new pump. Delphi recommends using fuel tank cleaning kit FC01 for this application. Confirm connector style, outlet configuration, and system pressure requirements before installation, and replace the seal supplied with the module during service.

Quality Assurance

Delphi builds aftermarket fuel system components using OE experience and engineering knowledge developed through decades of supplying original equipment to global automakers. FG1814 is a standard replacement part intended to meet the needs of the listed vehicle applications with the included regulator, sender, strainer, and seal.

Related reading

This part fits 2 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2015ChevroletImpalaN/APartial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2014ChevroletImpalaN/APartial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Spectra Premium — SP6743M1358929913592647DFG1814M100152MU2184
