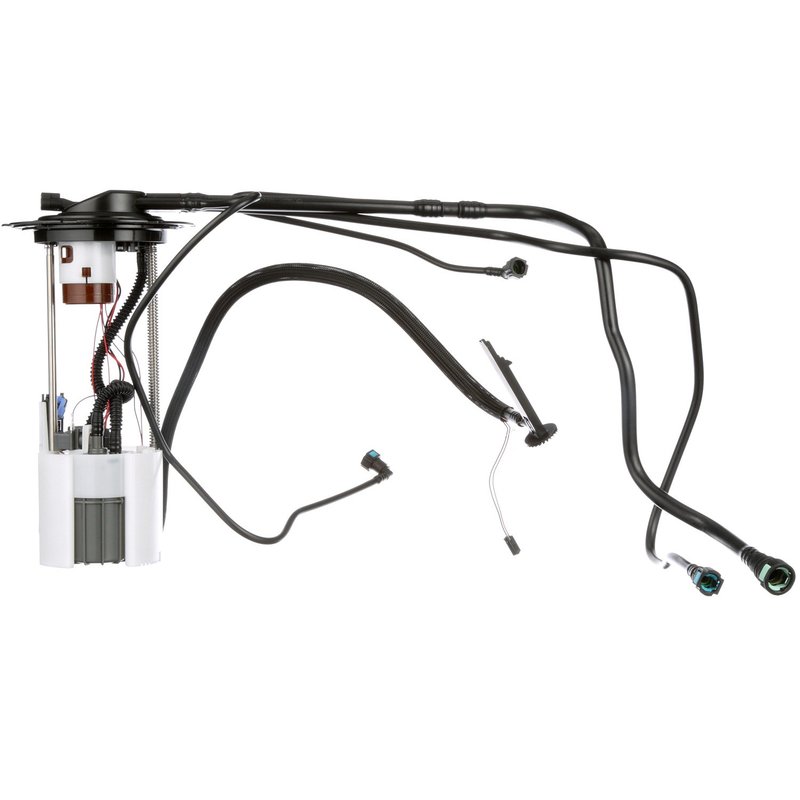

Delphi FG1846 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1846 fuel pump module assembly is designed for reliable fuel delivery in select Chevrolet and Pontiac vehicles. Engineered to meet OEM specifications, this in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Compatible with Chevrolet Equinox and Pontiac Torrent models
• 12.0 Volt electric pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, gasket, and lock ring for secure installation
• Quick connect outlet with 0.375 inch outside diameter and three outlet ports
• System pressure rated at 58 psi with a maximum pressure of 94 psi
• Six-pin male terminal type for reliable electrical connection
• Average flow rating of 18 gallons per hour and average current draw of 9 amps
• Includes vapor pressure sensor for accurate fuel system monitoring

Technical Details and Features

The Delphi FG1846 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet type and a quick connect outlet type with three outlets, facilitating efficient fuel flow. The module includes a fuel level sender assembly with resistance values ranging from 125 ohms (empty) to 20 ohms (full), providing accurate fuel level readings. The six-pin male terminal configuration ensures secure electrical connections, while the included lock ring and gasket help maintain a proper seal within the fuel tank. The pump maintains a system pressure of 58 psi and can handle a maximum pressure of 94 psi, supporting consistent engine performance under various driving conditions.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Equinox
• Pontiac Torrent

It is designed as a standard replacement part for the right position in the fuel tank, making it suitable for restoring fuel delivery systems in these specific models.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops causing engine performance issues
• Fuel pump noise or electrical connection problems
• Fuel system leaks from worn seals or gaskets

Installation Notes and Tips

When installing the Delphi FG1846 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Use the included lock ring and gasket to secure the module firmly in the fuel tank and prevent leaks. Verify the six-pin male terminals are properly connected to avoid electrical faults. It is recommended to inspect the fuel tank for debris before installation and replace any worn components to maintain system integrity. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty

The Delphi FG1846 fuel pump module assembly is manufactured to meet industry standards for durability and performance. It includes a fuel level sender assembly and vapor pressure sensor to support accurate fuel system operation. This standard replacement grade part is backed by Delphi’s quality control processes. Warranty coverage details should be confirmed with the point of purchase or Delphi’s official documentation.
