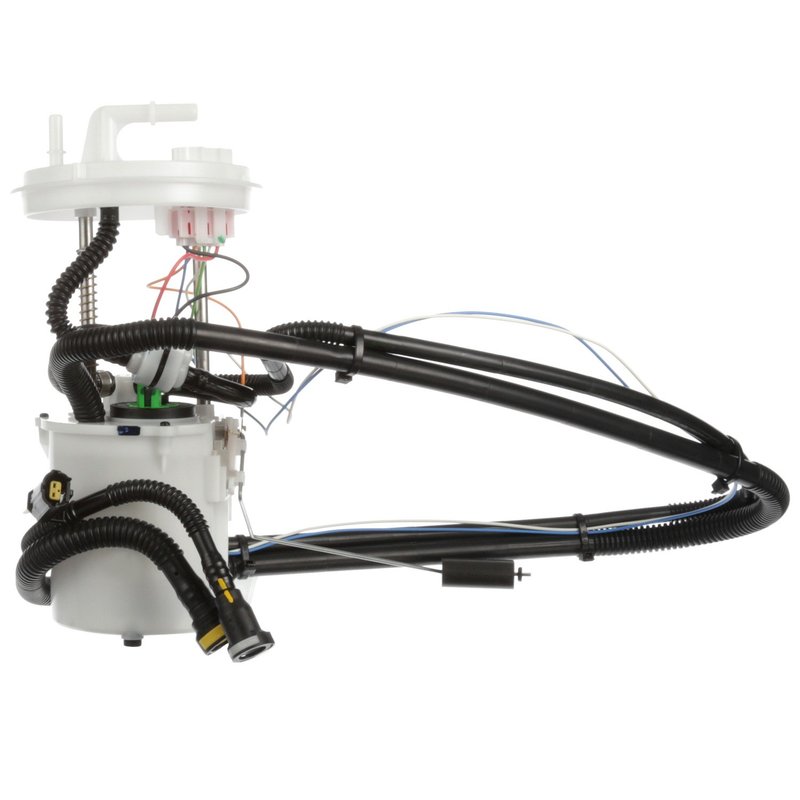

Delphi FG1885 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

Delphi FG1885 Fuel Pump Module Assembly

Brand Delphi FG1885
Average Current Draw 10
Fuel Level Sender Assembly Included Yes
Fuel Type Gas
Gasket Or Seal Included No
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer External
Item Grade Standard Replacement
Lock Ring Included No
Maximum Pressure 123.0
Outlet Outside Diameter 0.375
Outlet Quantity 1
Outlet Type Quick Connect
Package Contents Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 15.0
Resistance Ohms Full 160.0
Strainer Included Yes
System Pressure 48 psi
Terminal Gender Male
Terminal Quantity 6
Terminal Type Blade
Vapor Pressure Sensor No
Voltage 12.0
Fits Jaguar · 4 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

Includes regulator. Built with a fuel level sender and strainer for complete function.

OE heritage. Backed by Delphi's century of OE experience and supplier knowledge.

Cross-references DFG1885, E8577M and XR848122 for the same application. See all 3.

$405.94Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $405.94
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG1885 Fuel Pump Module Assembly

Delphi FG1885 is an in-tank fuel pump module assembly for gas applications, built with OE heritage and coverage for a wide range of vehicles and model years. It includes the fuel level sender assembly, regulator, and strainer for a direct replacement approach on select Jaguar S-Type models.

Key Features

  • In-tank electric fuel pump module assembly for gas fuel systems
  • 12.0-volt operation with a maximum pressure rating of 123.0
  • System pressure rated at 48 psi
  • Fuel level sender assembly included for integrated tank-level reporting
  • Regulator included for fuel delivery control
  • Strainer included; quick-connect outlet with 0.375 in. outside diameter
  • Blade-style terminals, 6-terminal male connection
  • Standard replacement grade for select OE-style service applications

Detailed Description

Delphi FG1885 fuel pump module assembly is engineered for select Jaguar S-Type applications and reflects Delphi’s OE-focused manufacturing background. The module is designed for in-tank installation and uses an electric pump with a quick-connect outlet, integrated regulator, and fuel level sender assembly to restore fuel delivery and tank-level signal performance. This part number, FG1885, is also referenced in interchange listings for DFG1885, E8577M, and XR848122.

Compatible With 2004 Jaguar S-Type, from chassis # N13089, without California Emission System. Compatible With 2005 Jaguar S-Type, without California Emission System. For 2004-2005 Jaguar S-Type fuel pump replacement, verify chassis break and emission-system details before ordering.

What It Helps Fix

  • Hard starting caused by weak or inconsistent fuel delivery
  • Engine stalling from insufficient fuel pressure
  • Fuel gauge readings that are inaccurate or intermittent
  • Loss of prime or poor pump operation in the tank
  • Fuel delivery issues tied to worn pump module components

Installation Notes and Tips

Before installing a replacement fuel pump module assembly, clean the fuel tank to reduce the risk of contamination-related failure. Delphi recommends using fuel tank cleaning kit FC01 for this application. Confirm the vehicle is a 2004 Jaguar S-Type from chassis # N13089 or a 2005 Jaguar S-Type without California Emission System, and verify connector, outlet, and sender specifications before installation.

Quality Assurance

Delphi draws on more than 100 years of OE experience and supplier knowledge used by major automakers. FG1885 is built as a standard replacement fuel pump module assembly with OE-oriented design and application coverage for select Jaguar S-Type models.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
2005JaguarS-TypeSportN/Awithout California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2005JaguarS-Type—N/Awithout California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2004JaguarS-TypeBaseN/AFrom Chassis # N13089; without California Emission System; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2004JaguarS-Type—N/Awithout California Emission System; From Chassis # N13089; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
DFG1885E8577MXR848122
