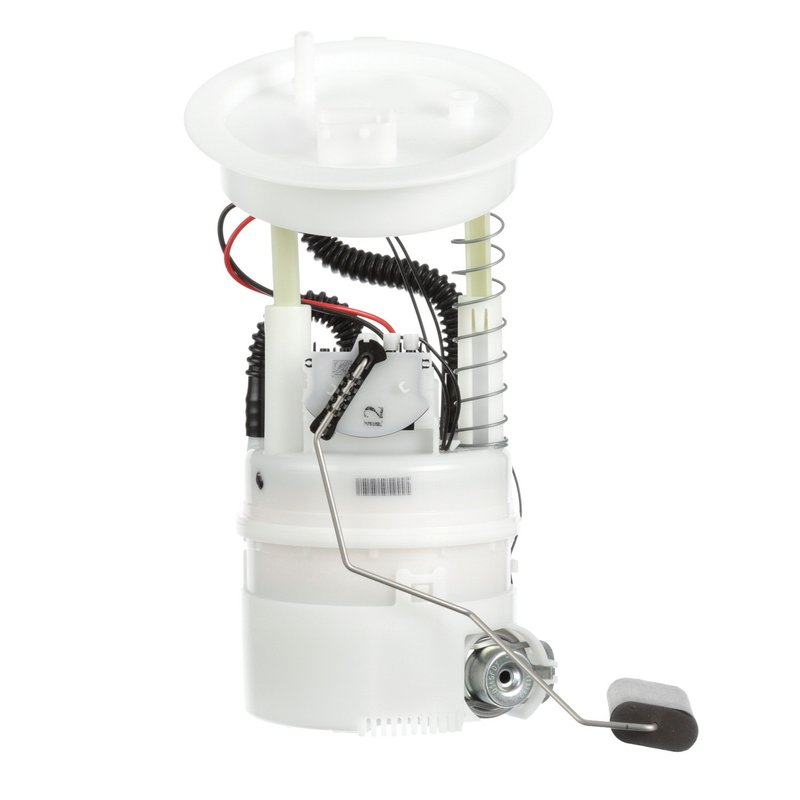

Delphi FG1899 Fuel Pump Module Assembly

Delphi FG1899 Fuel Pump Module Assembly

Delphi FG1899 is an in-tank electric fuel pump module assembly for gas applications, built as a standard replacement for select Mini models. It includes the fuel level sender assembly, regulator, strainer, gasket or seal, and float arm for a complete service replacement.

Compatible with 2011-2016 Mini Cooper Countryman and 2013-2016 Mini Cooper Paceman, this Delphi fuel pump module assembly is built around OE heritage and application knowledge developed through decades of supplying automakers. The FG1899 is a direct-fit fuel delivery component for vehicles that need stable pressure and accurate fuel level reporting.

Key Features

• Part number: FG1899
• In-tank electric fuel pump module assembly for gas fuel systems
• Includes fuel level sender assembly and float arm
• Regulator included for integrated fuel pressure control
• Strainer and gasket or seal included
• Quick-connect outlet with one outlet port
• 12.0-volt design with 75.0 maximum pressure and 70 psi system pressure
• Standard replacement grade for select Mini applications

Detailed Description

Delphi FG1899 is engineered as a fuel pump module assembly for vehicles using an in-tank fuel delivery setup. It features a pin-style, 4-terminal male connection, internal strainer, quick-connect outlet, and a fuel level sender assembly to support both fuel delivery and tank level monitoring. The module is specified for gas fuel systems and lists an average flow rating of 26 with an average current draw of 8.

Delphi’s OE background is reflected in the design approach behind FG1899, with application coverage focused on select Mini Cooper Countryman and Mini Cooper Paceman models. If you are replacing a worn pump, inaccurate sender, or a pressure-related fuel delivery issue, this module provides the core components needed for a proper repair. This part cross-references Bosch (e.g., E9167M) for the same application.

What It Helps Address

• Hard starting caused by weak fuel delivery
• Engine hesitation or stalling from low fuel pressure
• Incorrect fuel gauge readings from a failing sender
• Fuel pump noise or intermittent pump operation
• Pressure loss in the fuel system

Installation Notes and Tips

Fits 2011-2016 Mini Cooper Countryman and 2013-2016 Mini Cooper Paceman. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify connector style, outlet type, and system pressure requirements before installation. The package contents include the fuel pump module assembly with float arm, seal, and instruction sheet; lock ring is not included.

Quality Assurance

Delphi builds this replacement fuel pump module using OE experience and application knowledge developed from supplying major automakers. FG1899 is a standard replacement part designed to meet the needs of the listed Mini applications with the specified electrical and fuel system characteristics.
