Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

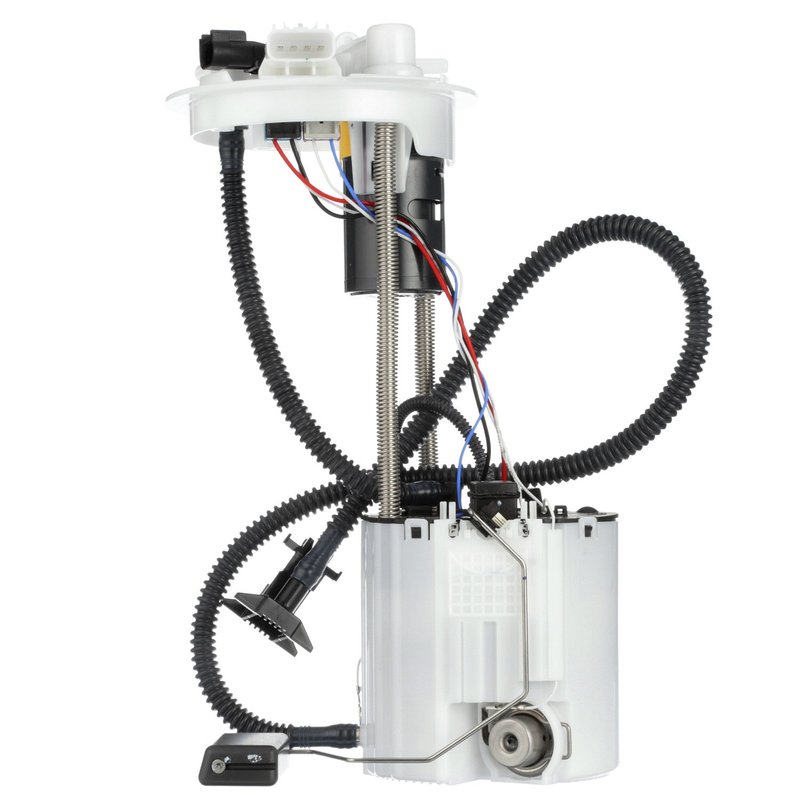

Delphi FG1909 Fuel Pump Module Assembly - Right
| Brand | Delphi FG1909 |
|---|---|
| Position | Right |
| Outlet Outside Diameter | 0.375 |
| Voltage | 12.0 |
| Regulator Included | Yes |
| Maximum Pressure | 83.0 |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 3 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 250.0 |
| Resistance Ohms Full | 40.0 |
| Internal Or External Strainer | Internal |
| Average Current Draw | 11 |
| Average Flow Rating | 42 |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Flex |
| Item Grade | Standard replacement |
| Package Contents | Fuel pump module assembly w/float arm, seals, instruction sheet |
| System Pressure | 51 psi |
| Vapor Pressure Sensor | Yes |
| Fits | Chevrolet and GMC · 12 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built from Delphi's century of original-equipment experience.
Complete assembly. Includes regulator, strainer, seals, and fuel level sender.
Cross-references 13506692, 13506696 and 13585232 for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Equinox and Terrain
The Delphi FG1909 fuel pump module assembly is a standard replacement for select Chevrolet Equinox and GMC Terrain applications. Built with OE heritage and backed by Delphi’s century of original-equipment experience, it combines the pump, fuel level sender, regulator, strainer, and seal components needed for a direct in-tank fuel system repair.
- Electric in-tank fuel pump module assembly
- 12.0-volt design with blade terminals and 4 terminal connections
- Maximum pressure: 83.0; system pressure: 51 psi
- Average flow rating: 42 with average current draw of 11
- Fuel level sender assembly included with resistance range of 250 ohms empty and 40 ohms full
- Regulator included, strainer included, and gasket/seal included
- Quick-connect outlet type with 3 outlets and 0.375 in. outlet outside diameter
- Fuel type: flex
- Vapor pressure sensor included
OE-Style Replacement Details
Delphi FG1909 is engineered for right-side applications and is listed for 2012-2015 Chevrolet Equinox, right; 2012-2015 GMC Terrain, right; 2016 Chevrolet Equinox, right; 2016 GMC Terrain, right; 2017 Chevrolet Equinox, N/A; and 2017 GMC Terrain, N/A. This part cross-references ACDelco and Delphi numbers such as 13506692 and DFG1909 for the same application. Delphi draws on OE development knowledge to deliver a fuel pump module assembly that matches the needs of modern flex-fuel systems and integrated tank modules.
Common Repair Uses
- Hard starting or extended crank conditions
- Fuel pressure loss or inconsistent fuel delivery
- Fuel gauge reading empty, full, or erratically
- Fuel pump noise or intermittent pump operation
- Fuel system faults related to the in-tank module or sender
Installation Notes and Tips
Before installing a new fuel pump module assembly, clean the fuel tank to reduce the risk of contamination-related failure. Delphi also recommends using fuel tank cleaning kit FC01 for the listed applications. Verify connector count, outlet style, and right-side fitment before installation, and inspect the tank sealing surface to help prevent leaks after service.
Quality Assurance
Delphi builds aftermarket parts using OE experience and application knowledge developed through long-term supplier relationships with major automakers. FG1909 is a standard replacement fuel pump module assembly designed to meet the requirements of the listed Chevrolet Equinox and GMC Terrain fitments.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Chevrolet | Equinox | FLEX | N/A | Module has 2 Electrical Connector(s); Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2017 | GMC | Terrain | FLEX | N/A | Module has 2 Electrical Connector(s); Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2016 | Chevrolet | Equinox | FLEX | Right | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | GMC | Terrain | FLEX | Right | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | Chevrolet | Equinox | FLEX | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2015 | GMC | Terrain | FLEX | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2014 | Chevrolet | Equinox | FLEX | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2014 | GMC | Terrain | FLEX | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2013 | Chevrolet | Equinox | FLEX | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2013 | GMC | Terrain | FLEX | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2012 | Chevrolet | Equinox | FLEX | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
| 2012 | GMC | Terrain | FLEX | Right | Except Partial Zero Emissions Vehicle; Fuel tank contamination is the leading cause of premature fuel pump failure - clean the fuel tank before installing the replacement pump to reduce contamination risk; Recommend using fuel tank cleaning kit FC01. |
