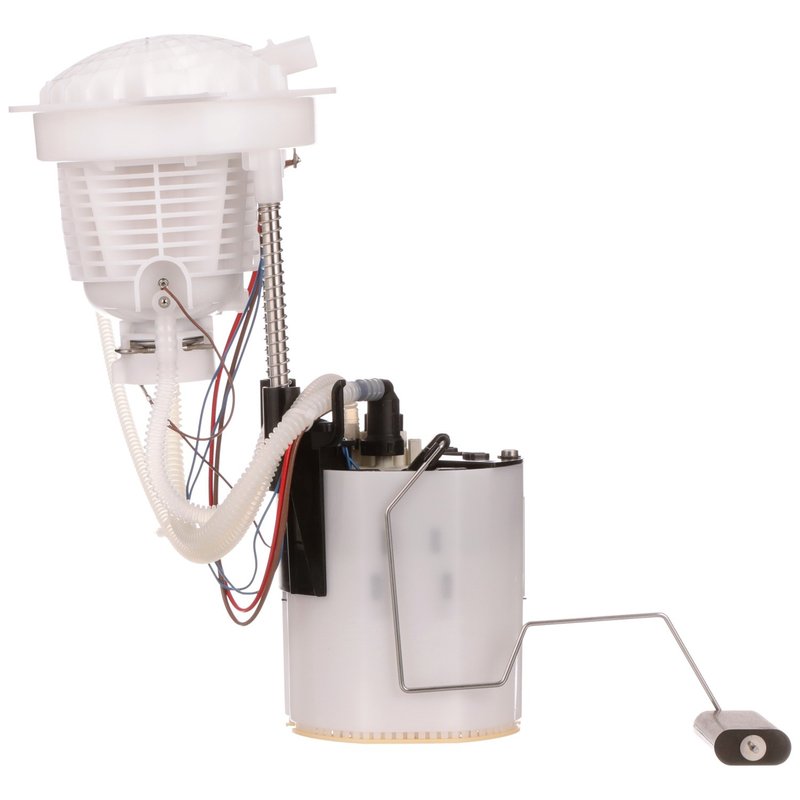

Delphi FG1911 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Sprinter 2500 and 3500

The Delphi FG1911 fuel pump module assembly is designed specifically for Dodge Sprinter 2500 and Sprinter 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for gasoline engines, supporting optimal vehicle performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt electrical systems
• Includes internal strainer and fuel feed line for clean fuel flow
• Regulator included to maintain system pressure at 55 psi
• Quick connect outlet with 0.375-inch outside diameter
• Blade-type male terminals, 4-terminal configuration
• Average flow rating of 37 liters per hour and 10 amps current draw
• Designed for gasoline fuel type with maximum pressure of 58 psi

Technical Details and Features

The Delphi FG1911 fuel pump module assembly is engineered as a standard replacement part for Dodge Sprinter 2500 and 3500 vehicles. It operates at 12 volts and features an internal strainer inlet to prevent contaminants from entering the fuel system. The module includes a fuel level sender assembly with resistance values ranging from 50 ohms (full) to 990 ohms (empty), providing accurate fuel level readings. The quick connect outlet type simplifies installation and maintenance, while the blade terminal design ensures secure electrical connections. The regulator maintains system pressure at 55 psi, with a maximum pressure rating of 58 psi, supporting consistent fuel delivery under various operating conditions.

Applications and Problem Resolution

• Restores proper fuel pressure and flow in Dodge Sprinter 2500 and 3500 gasoline engines
• Replaces faulty or worn fuel pump modules causing engine hesitation or stalling
• Addresses inaccurate fuel level readings due to damaged sender assemblies
• Eliminates fuel delivery interruptions caused by clogged strainers or electrical issues
• Supports smooth engine performance and fuel efficiency by maintaining system pressure

Installation Notes and Tips

Installation of the Delphi FG1911 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The quick connect outlet and blade terminals facilitate straightforward connections, but verify all fittings are secure to avoid leaks or electrical faults. It is recommended to inspect and clean the fuel tank and surrounding components during installation. Follow the included instructions carefully to ensure proper assembly and operation.

Quality Assurance and Warranty

Delphi manufactures the FG1911 fuel pump module assembly to meet or exceed OEM standards for durability and performance. This standard replacement part undergoes rigorous testing to ensure reliable operation within specified voltage, pressure, and flow parameters. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
