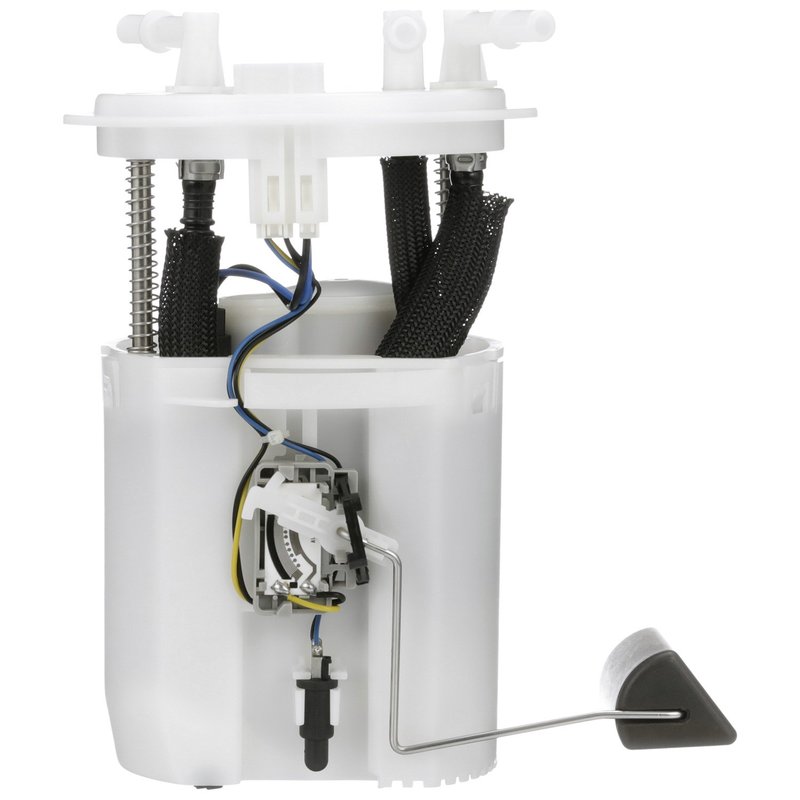

Delphi FG1914 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Subaru Forester and Impreza

The Delphi FG1914 fuel pump module assembly is designed specifically for Subaru Forester and Impreza models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

Key Features of Delphi FG1914 Fuel Pump Module

• 12.0 Volt electric fuel pump with an average flow rating of 40 liters per hour
• Includes internal strainer and fuel level sender assembly with float arm for precise fuel measurement
• Equipped with a fuel pressure regulator maintaining system pressure at 36 psi and maximum pressure of 94 psi
• Quick connect outlet type with 0.375 inch outside diameter and three outlet ports for secure fuel line connections
• Blade-type male terminals with six terminal quantity for reliable electrical connections
• Designed for gasoline fuel type with an average current draw of 10 amps

Detailed Description of the Delphi FG1914 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1914) is engineered as a standard replacement for Subaru Forester and Impreza vehicles. The in-tank electric pump features an internal strainer to prevent debris from entering the fuel system, enhancing longevity and performance. The integrated fuel level sender assembly with float arm provides accurate fuel gauge readings, helping drivers monitor fuel levels effectively. The module’s regulator maintains consistent fuel pressure at 36 psi, supporting stable engine operation under various driving conditions. With quick connect outlets and blade-type terminals, installation and electrical connections are straightforward and secure.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure causing engine stalling or no-start conditions
• Inaccurate fuel gauge readings due to faulty fuel level sender assembly
• Fuel pressure fluctuations leading to poor engine performance or hesitation
• Contaminated fuel supply caused by damaged or missing internal strainer
• Electrical connection problems resulting in pump malfunction

Installation Notes and Tips

• Compatible with Subaru Forester and Impreza models; verify vehicle year and specifications before installation
• Ensure the fuel tank is properly drained and depressurized prior to removal of the old fuel pump module
• Handle the float arm carefully to avoid damage during installation
• Check all electrical connections and terminals for corrosion or damage before reconnecting
• Follow manufacturer instructions included with the module for proper torque and sealing procedures

Quality Assurance and Warranty Information

The Delphi FG1914 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It undergoes rigorous testing to ensure reliable operation and durability. This product is offered as a standard replacement part and typically includes a limited warranty covering defects in materials and workmanship. Refer to the product documentation for specific warranty terms.
