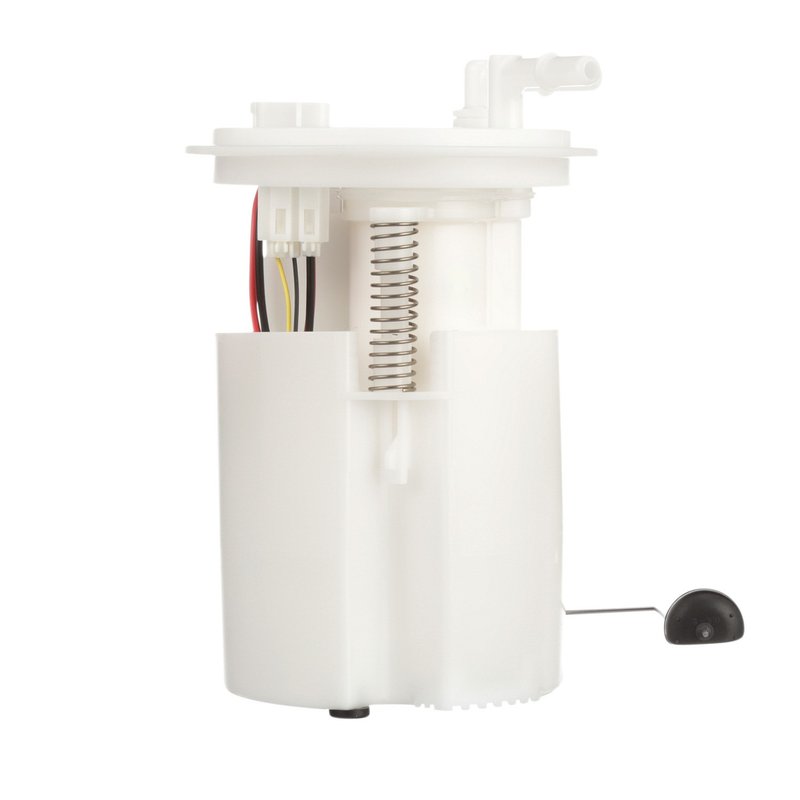

Delphi FG1916 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Subaru Legacy and Outback

The Delphi FG1916 fuel pump module assembly is designed specifically for Subaru Legacy and Outback models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for gasoline engines, supporting optimal vehicle performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Subaru Legacy and Outback gasoline engines
• 12.0-volt operation with a maximum pressure of 58 psi and system pressure of 54 psi
• Includes internal strainer and regulator for clean fuel flow and pressure control
• Quick connect outlet with 0.375-inch outside diameter and dual outlet quantity
• Blade-type male terminals with six terminal quantity for secure electrical connections
• Standard replacement grade with resistance values of 139 ohms empty and 8 ohms full
• Average current draw of 8 amps and minimum flow rating of 29 liters per hour

Product Features and Technical Specifications

The Delphi FG1916 fuel pump module assembly is engineered for in-tank installation, providing efficient fuel delivery to Subaru gasoline engines. It features a built-in fuel level sender assembly with a float arm, allowing accurate fuel level readings. The pump operates at 12 volts and maintains a system pressure of 54 psi, with a maximum pressure rating of 58 psi to meet engine demands. The internal strainer helps prevent contaminants from entering the fuel system, while the regulator ensures consistent pressure. The quick connect outlet design with a 0.375-inch outside diameter and two outlets supports reliable fuel flow. Electrical connections are secured via six blade-type male terminals, designed for compatibility with Subaru wiring harnesses.

Compatible Vehicles and Applications

• Subaru Legacy models requiring a standard replacement fuel pump module
• Subaru Outback models with gasoline fuel systems
• Replacement for fuel delivery issues such as low fuel pressure or inconsistent fuel gauge readings
• Ideal for resolving fuel pump failure symptoms in Subaru Legacy and Outback vehicles

Installation Notes and Tips

Installation of the Delphi FG1916 fuel pump module assembly should be performed by a qualified technician familiar with Subaru fuel systems. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The in-tank design requires careful handling to avoid damage to the internal strainer and float arm. Verify all electrical connections are secure and free of corrosion. After installation, check for proper fuel pressure and fuel level sender operation to confirm correct functionality.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1916 is a standard replacement grade part designed to provide reliable service life. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms.
