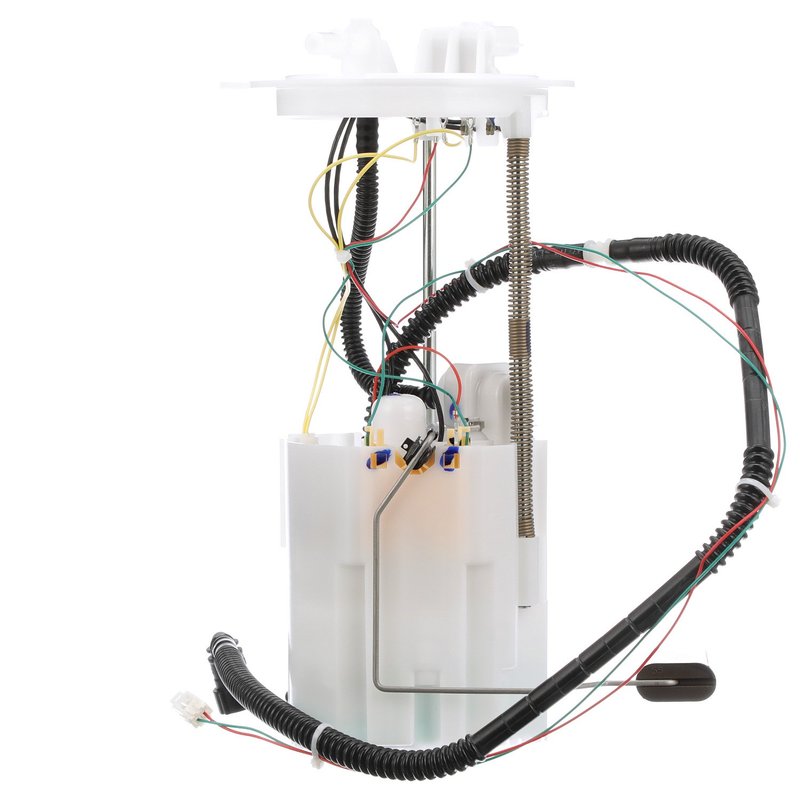

Delphi FG1932 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Nissan Rogue

The Delphi FG1932 fuel pump module assembly is designed specifically for Nissan Rogue models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel pressure and accurate fuel level readings, this module supports efficient engine performance and fuel system operation.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• In-tank design with internal strainer for fuel filtration
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals, 6-terminal configuration
• Standard replacement grade with system pressure rated at 51 psi
• Includes fuel pump module assembly with float arm and instruction sheet

Technical Details and Features

The Delphi FG1932 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type to prevent contaminants from entering the fuel system, ensuring clean fuel delivery. The outlet is a quick connect type with a 0.375 inch outside diameter, facilitating straightforward installation and secure fuel line connection. The module includes six blade-type male terminals for electrical connections, supporting an average current draw of 10 amps. Resistance values range from 141 ohms when empty to 45 ohms when full, providing accurate fuel level measurement through the included fuel level sender assembly. This module is intended as a standard replacement part, maintaining system pressure at 51 psi to meet Nissan Rogue fuel system requirements.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Nissan Rogue models that require the FG1932 part number. It is designed for in-tank installation and supports gasoline fuel delivery systems. The module is suitable for addressing fuel delivery and fuel level sensing needs in these vehicles.

• Resolves fuel delivery interruptions or inconsistent engine performance
• Replaces faulty or damaged fuel pump modules causing low fuel pressure
• Restores accurate fuel level readings when the sender assembly fails
• Eliminates fuel contamination issues with the internal strainer
• Addresses electrical connection problems with blade-type terminals

Installation Notes and Tips

Installation of the Delphi FG1932 fuel pump module assembly should be performed with care to avoid damage to the fuel system components. Ensure the vehicle’s battery is disconnected before beginning installation. The quick connect outlet simplifies fuel line attachment, but verify all connections are secure to prevent leaks. Since the module includes a float arm for fuel level sensing, handle it carefully to avoid bending or damage. Follow the included instruction sheet for detailed installation steps and torque specifications. It is recommended to inspect the fuel tank and clean any debris before installing the new module.

Quality Assurance and Warranty

Delphi manufactures the FG1932 fuel pump module assembly to meet OEM standards for fit, form, and function. This standard replacement part undergoes rigorous testing to ensure reliable operation within Nissan Rogue fuel systems. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
