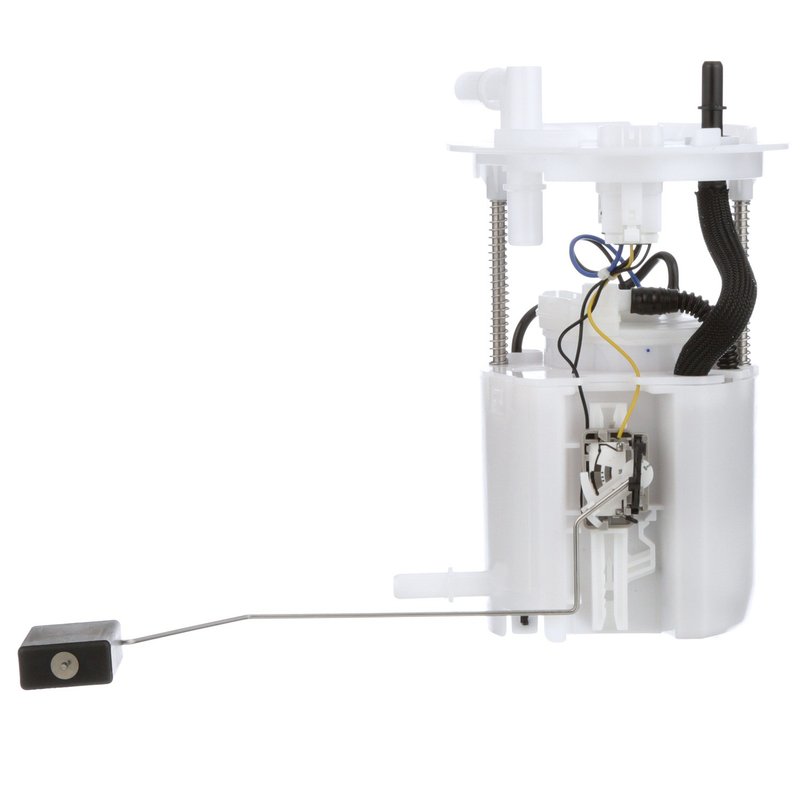

Delphi FG1935 Fuel Pump Module Assembly - Right

Reliable Fuel Pump Module Assembly for Ford and Lincoln Vehicles

The Delphi FG1935 fuel pump module assembly is designed to provide consistent fuel delivery for select Ford and Lincoln models. Engineered for gas-powered vehicles, this in-tank electric fuel pump module ensures optimal performance and fuel efficiency.

• Compatible with Ford Explorer, Lincoln Flex, and Lincoln MKT models
• 12-volt electric pump with a maximum pressure of 88 psi
• Includes fuel level sender assembly with float arm for accurate fuel readings
• Equipped with internal strainer and quick connect outlet for efficient fuel flow
• Comes with gasket and seal for secure installation
• Blade-type male terminals with four connections for reliable electrical contact
• Standard replacement grade for dependable operation

Technical Specifications and Features

The Delphi FG1935 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with an outside diameter of 0.375 inches, supporting two outlet connections. The pump delivers an average flow rating of 24 liters per hour and maintains a system pressure of 77 psi, with a maximum pressure rating of 88 psi. The module includes a fuel level sender assembly with resistance values ranging from 180 ohms when empty to 10 ohms when full, ensuring accurate fuel gauge readings. The assembly uses blade-type male terminals with four connections, facilitating secure electrical integration. This in-tank electric pump module is supplied with a gasket and seal to prevent leaks during installation.

Applications and Problem Resolution

• Restores proper fuel delivery in Ford Explorer, Lincoln Flex, and Lincoln MKT vehicles
• Resolves fuel pressure inconsistencies and engine performance issues
• Replaces faulty or worn fuel pump modules causing fuel gauge inaccuracies
• Addresses fuel system leaks with included gasket and seal
• Improves fuel flow and engine responsiveness in gas-powered vehicles

Installation Notes and Tips

Installation of the Delphi FG1935 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle's battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket and seal to secure the module and prevent fuel leaks. Verify that the blade-type male terminals are properly connected to the vehicle’s wiring harness. It is recommended to inspect the fuel tank and lines for debris or damage during installation. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for reliable performance. The FG1935 is a standard replacement grade part, designed for durability and consistent operation in compatible Ford and Lincoln vehicles. This product includes a limited warranty covering defects in materials and workmanship under normal use. For warranty details, refer to Delphi’s official documentation or contact authorized service providers.
