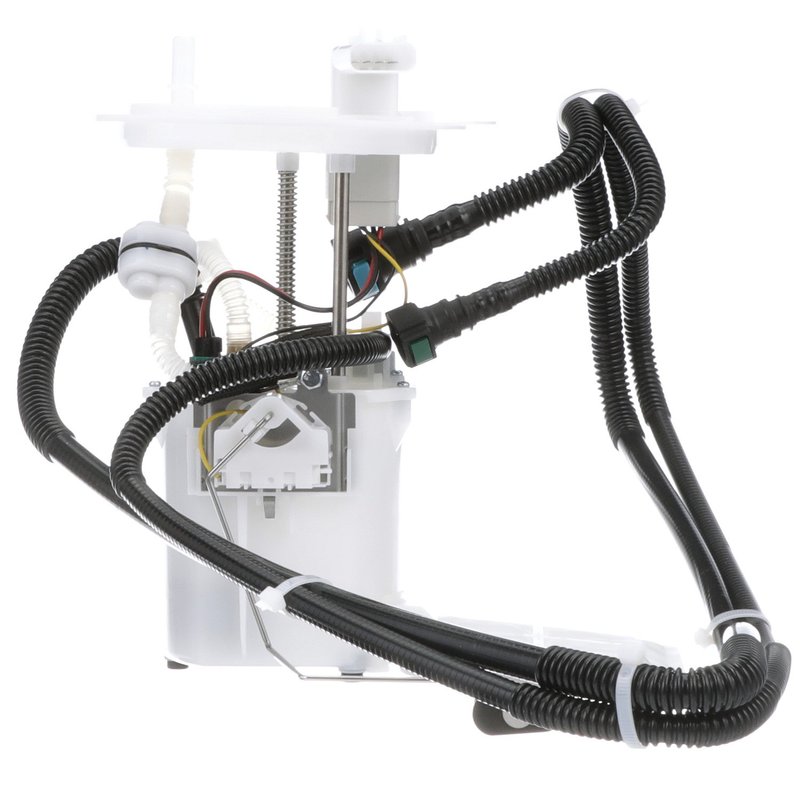

Delphi FG1941 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly for Lincoln LS

The Delphi FG1941 fuel pump module assembly is designed specifically for the Lincoln LS, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a seamless fit and function.

Key Features of Delphi FG1941 Fuel Pump Module

• 12.0 Volt electric fuel pump designed for gasoline fuel systems
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Integrated fuel pressure regulator maintaining up to 73 psi maximum pressure
• External strainer inlet and quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connections
• Includes gasket and seal for leak-free installation
• Standard replacement grade for dependable operation
• Minimum flow rating of 30 liters per hour ensuring adequate fuel supply
• Average current draw of 11 amps for efficient power consumption

Detailed Description of the Delphi FG1941 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1941) is engineered for the Lincoln LS, featuring an in-tank electric pump that delivers consistent fuel flow and pressure. The module includes a built-in fuel level sender assembly with a float arm, allowing the vehicle’s fuel gauge to provide accurate readings. The fuel pump operates at 12 volts and supports gasoline fuel systems, with a maximum pressure rating of 73 psi to meet engine demands. The external strainer inlet protects the pump from debris, while the quick connect outlet with a 0.375 inch diameter simplifies fuel line attachment. Four male blade terminals provide reliable electrical connections, and the included gasket and seal ensure a secure, leak-free installation. This standard replacement part is designed to maintain factory specifications and performance for the Lincoln LS.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Lincoln LS models experiencing fuel starvation or engine hesitation
• Replaces faulty or worn fuel pump modules causing inaccurate fuel gauge readings
• Solves issues related to inconsistent fuel pressure affecting engine performance
• Addresses fuel pump noise or failure due to clogged strainers or electrical faults
• Prevents fuel leaks with included gasket and seal components

Installation Notes and Tips

• Ensure vehicle battery is disconnected before beginning installation to avoid electrical hazards
• Verify compatibility with Lincoln LS model year and engine specifications prior to purchase
• Carefully remove the old fuel pump module from the fuel tank, taking care to avoid damage to the fuel tank or lines
• Replace the gasket and seal with those included in the package to prevent leaks
• Confirm all electrical connections are secure and terminals are properly seated
• Test fuel pump operation and fuel gauge accuracy after installation before reassembling vehicle components

Quality Assurance and Warranty Information

The Delphi FG1941 fuel pump module assembly is manufactured to meet industry standards for quality and durability. This standard replacement part undergoes rigorous testing to ensure reliable performance in the Lincoln LS. While specific warranty terms may vary, Delphi products typically include a limited warranty against defects in materials and workmanship. Consult product documentation or authorized sources for detailed warranty coverage.
