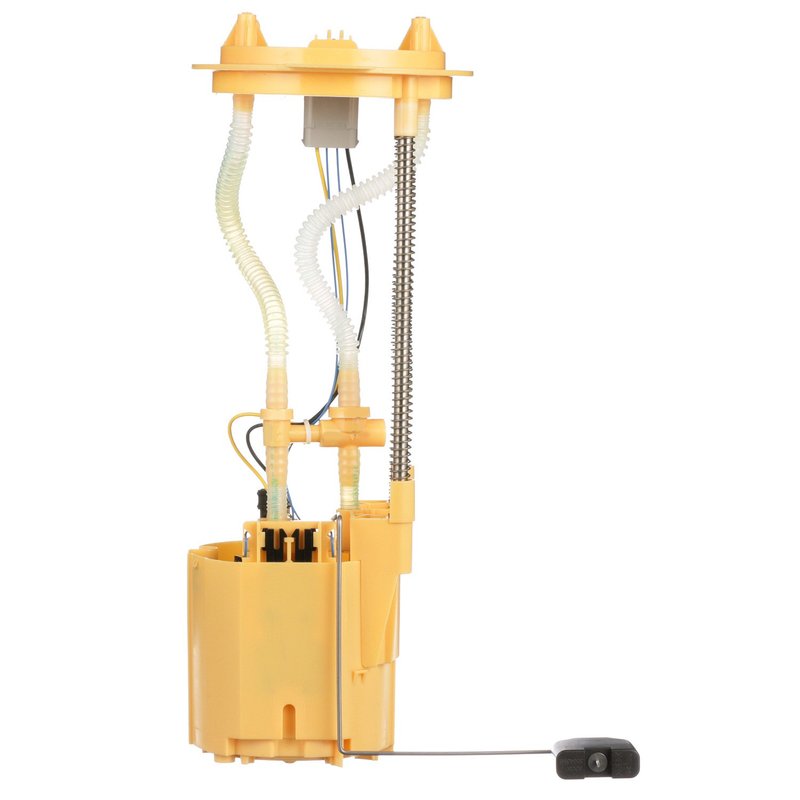

Delphi FG1944 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG1944 fuel pump module assembly is designed specifically for Dodge Ram 2500 and Ram 3500 diesel models. This in-tank electric fuel pump module ensures reliable fuel delivery with integrated components tailored for diesel fuel systems.

• Outlet outside diameter: 0.375 inches
• Voltage: 13.5 volts
• Fuel type: Diesel
• Includes fuel pressure regulator
• Maximum pressure rating: 15.0 psi
• Blade terminal type with 4 male terminals
• Internal strainer included for fuel filtration
• Quick connect outlet with two outlets
• Includes fuel level sender assembly with float arm
• Average current draw: 6 amps
• Average flow rating: 45 liters per hour
• Standard replacement grade

Detailed Product Description

The Delphi FG1944 fuel pump module assembly is engineered for in-tank installation on Dodge Ram 2500 and Ram 3500 diesel trucks. Operating at 13.5 volts, this electric pump module delivers a consistent flow rate of 45 liters per hour and maintains system pressure at 13 psi, with a maximum pressure capacity of 15 psi. The module features a built-in fuel pressure regulator to ensure optimal fuel delivery and system performance. It includes an internal strainer to protect the fuel system from contaminants and a fuel level sender assembly with a float arm for accurate fuel gauge readings. The quick connect outlet design with two outlets simplifies installation and connection to the fuel lines. The blade-type terminals (four male terminals) provide secure electrical connections. This module is a standard replacement part designed to meet OEM specifications for Dodge Ram diesel models.

Compatible Vehicles and Applications

• Designed for Dodge Ram 2500 diesel trucks
• Compatible with Dodge Ram 3500 diesel trucks
• Ideal for replacing faulty or worn fuel pump modules in these models
• Suitable for diesel fuel systems requiring in-tank electric fuel pumps

Installation Notes and Tips

• Ensure the vehicle battery is disconnected before installation
• Verify fuel tank is empty or at a safe level to avoid spills
• Use proper tools to remove the fuel tank lock ring (not included)
• Check all electrical connections for secure fitment on blade terminals
• Inspect the internal strainer and fuel lines for debris during installation
• Follow vehicle manufacturer guidelines for fuel system servicing

Quality Assurance and Warranty

The Delphi FG1944 fuel pump module assembly is manufactured to meet industry standards for durability and performance. It is a standard replacement grade part designed to match OEM specifications for Dodge Ram 2500 and Ram 3500 diesel trucks. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
