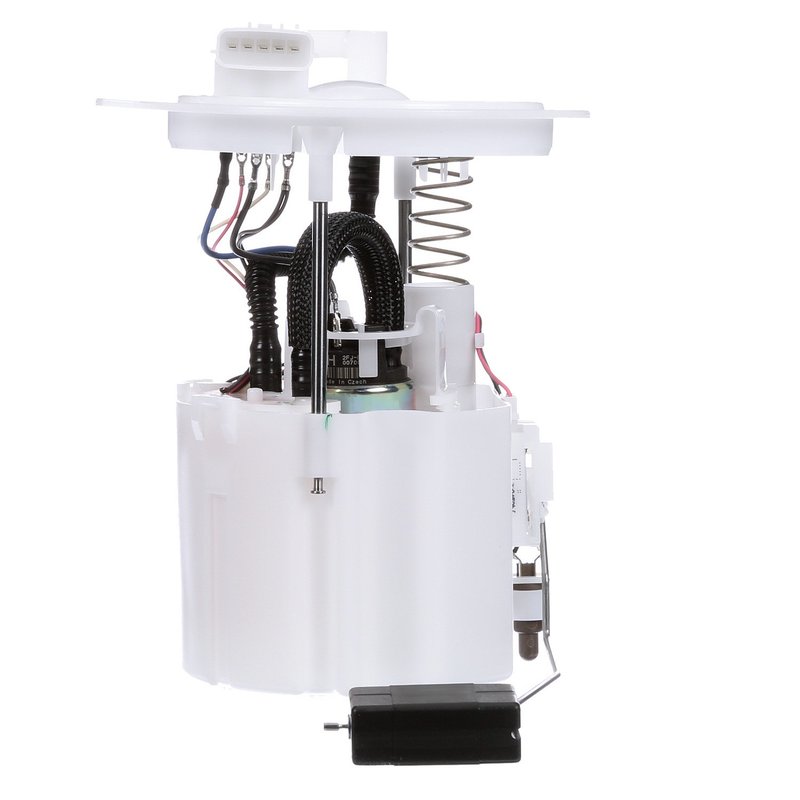

Delphi FG1958 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Nissan Sentra

The Delphi FG1958 fuel pump module assembly is designed specifically for Nissan Sentra models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel flow and pressure to maintain optimal engine performance.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Compatible with gasoline fuel systems in Nissan Sentra vehicles
• Includes internal strainer and regulator for clean fuel delivery
• Quick connect outlet with 0.375 inch outside diameter
• Five male blade terminals for secure electrical connections
• Standard replacement grade with an average flow rating of 32 liters per hour
• System pressure rated at 50 psi for stable fuel supply

Detailed Product Features and Specifications

The Delphi FG1958 fuel pump module assembly is engineered as an in-tank electric pump designed to meet the fuel delivery requirements of Nissan Sentra models. It operates at 12 volts and features a built-in fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The pump includes an internal strainer to filter out contaminants before fuel reaches the engine, helping to protect the fuel system components.

This module has a quick connect outlet with a 0.375 inch outside diameter, facilitating straightforward installation and secure fuel line attachment. The assembly uses five male blade terminals to ensure reliable electrical connections. It is designed to maintain a system pressure of 50 psi, supporting consistent fuel flow with an average rating of 32 liters per hour. The resistance values range from 81 ohms when empty to 4 ohms when full, indicating proper operation of the fuel level sender.

Compatible Nissan Sentra Fuel Pump Replacement

This fuel pump module assembly is compatible with Nissan Sentra vehicles requiring a standard replacement fuel pump module. The part number FG1958 corresponds to this specific Delphi unit, ensuring fitment and function for the intended models.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses inaccurate fuel gauge readings due to faulty sender assembly
• Eliminates fuel pump noise caused by worn or failing pumps
• Prevents low fuel pressure conditions affecting engine performance
• Replaces damaged or clogged internal strainers impacting fuel flow

Installation Notes and Tips

Installation of the Delphi FG1958 fuel pump module assembly should be performed with the fuel tank removed or lowered to access the in-tank pump. Ensure all electrical connections use the five male blade terminals correctly and verify the quick connect outlet is securely attached to the fuel line. It is recommended to inspect the fuel tank for debris before installation and replace any seals or gaskets as needed, since this assembly does not include a gasket or lock ring.

Quality Assurance and Warranty Information

Delphi manufactures the FG1958 fuel pump module assembly to meet standard replacement quality requirements. The product includes a fuel pump module with float arm and an instruction sheet for installation guidance. While no specific warranty details are provided here, Delphi products typically come with manufacturer-backed warranties to ensure reliability and performance in Nissan Sentra applications.
