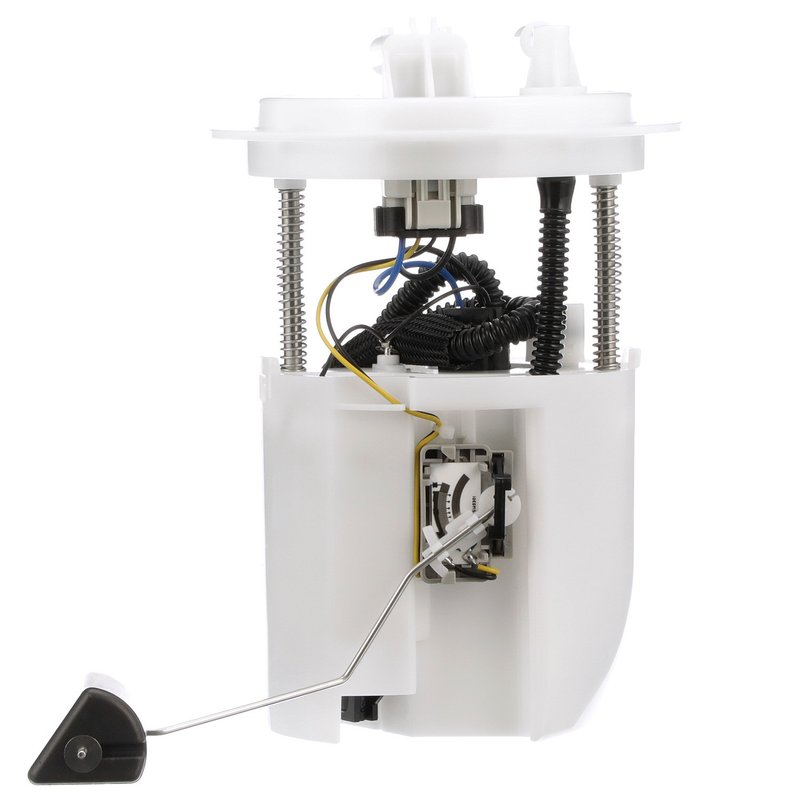

Delphi FG1962 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Dodge Journey

The Delphi FG1962 fuel pump module assembly is designed specifically for Dodge Journey models requiring a reliable in-tank electric fuel pump. Engineered to maintain consistent fuel delivery and pressure, this module ensures optimal engine performance and fuel efficiency.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Four male blade terminals for secure electrical connections
• Standard replacement grade with an average flow rating of 20 and system pressure of 58 psi

Product Features and Specifications

The Delphi FG1962 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type and includes a fuel level sender assembly with a float arm for accurate fuel measurement. The module comes with a gasket or seal to ensure a leak-free installation. The outlet is a quick connect type with a 0.375-inch outside diameter, facilitating straightforward connection to the fuel line. Electrical connections are made via four male blade terminals, providing reliable power delivery. The pump’s resistance ranges from 51 ohms when full to 990 ohms when empty, with an average current draw of 10 amps, supporting consistent fuel flow and pressure at 58 psi.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Dodge Journey vehicles requiring a direct replacement fuel pump module. It is designed for in-tank installation and supports gasoline fuel systems, making it suitable for maintaining proper fuel delivery and engine performance in these models.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates fuel pump noise caused by worn or damaged components
• Prevents fuel leaks with included gasket and seal components

Installation Notes and Tips

When installing the Delphi FG1962 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. Use the included gasket or seal to prevent leaks and verify that all electrical connections are secure with the four male blade terminals. The quick connect outlet simplifies fuel line attachment, but confirm a tight fit to avoid disconnections. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures to maintain safety and performance standards.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications, providing a standard replacement grade part for Dodge Journey vehicles. This product includes a fuel level sender assembly and is tested for consistent flow and pressure performance. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
