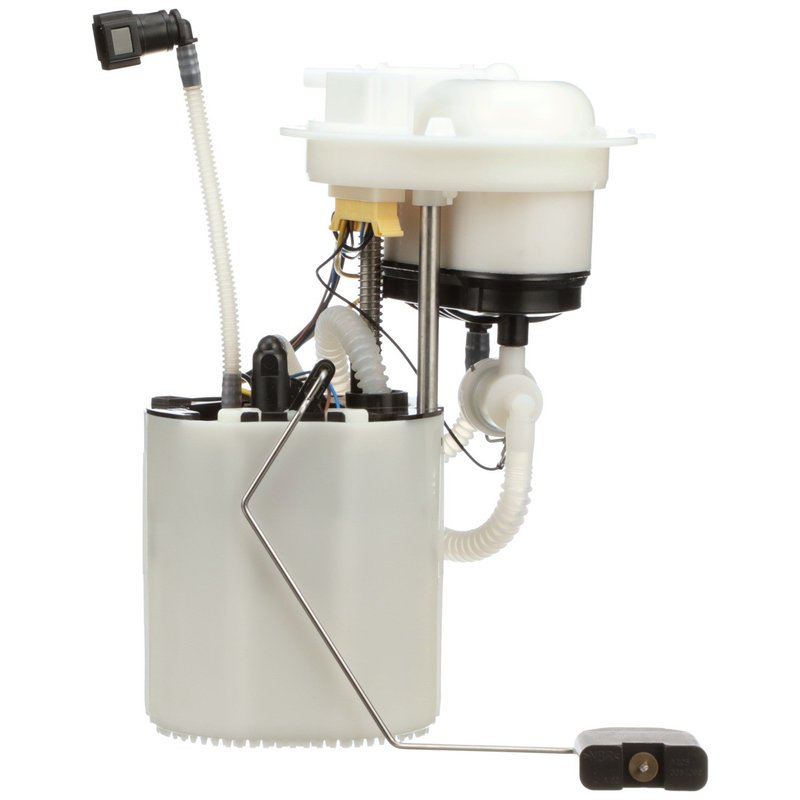

Delphi FG1964 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Volkswagen Passat

The Delphi FG1964 fuel pump module assembly is designed specifically for Volkswagen Passat models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• Outlet outside diameter: 0.313 inches for precise fuel line connection
• Operates on 12.0 volts compatible with standard automotive electrical systems
• Designed for gasoline fuel type with an internal strainer to protect the fuel system
• Includes a fuel level sender assembly with float arm for accurate fuel gauge readings
• Regulator included to maintain system pressure up to 60 psi
• Blade-type male terminals with 5 terminal quantity for secure electrical connections
• Quick connect outlet type with one outlet for efficient fuel delivery
• Average flow rating of 28 liters per hour to meet engine fuel demands
• Standard replacement grade ensuring reliable performance and fitment

Technical Details and Features

The Delphi FG1964 fuel pump module assembly is an electric pump designed for in-tank installation in Volkswagen Passat vehicles. It features an internal strainer inlet type that helps prevent contaminants from entering the fuel system. The module includes a regulator to maintain a consistent system pressure of 58 psi, ensuring stable fuel delivery under various operating conditions. The fuel level sender assembly with float arm is integrated, providing accurate fuel level readings to the vehicle’s dashboard. The pump operates at 12 volts with an average current draw of 10 amps, and the resistance varies from 290 ohms when empty to 50 ohms when full, reflecting its operational status. The quick connect outlet and blade-type male terminals simplify installation and electrical connections.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Volkswagen Passat models requiring part number FG1964. It is designed to replace the original in-tank fuel pump module, restoring proper fuel delivery and fuel level sensing functions.

• Resolves fuel delivery issues such as engine hesitation or stalling
• Corrects inaccurate fuel gauge readings caused by faulty sender units
• Replaces worn or damaged fuel pump modules to restore fuel pressure
• Eliminates fuel system leaks related to pump module failure
• Addresses electrical connection problems with blade terminal design

Installation Notes and Tips

When installing the Delphi FG1964 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. The quick connect outlet and blade terminals facilitate straightforward connections, but verify all electrical contacts are secure and free of corrosion. Since the gasket or seal is not included, reuse the original or install a new compatible seal to prevent leaks. Follow manufacturer instructions carefully to maintain system integrity and safety.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG1964 is a standard replacement grade part, tested for durability and performance under typical operating conditions. While specific warranty details may vary, Delphi products generally come with a limited warranty covering defects in materials and workmanship to provide confidence in your purchase.
