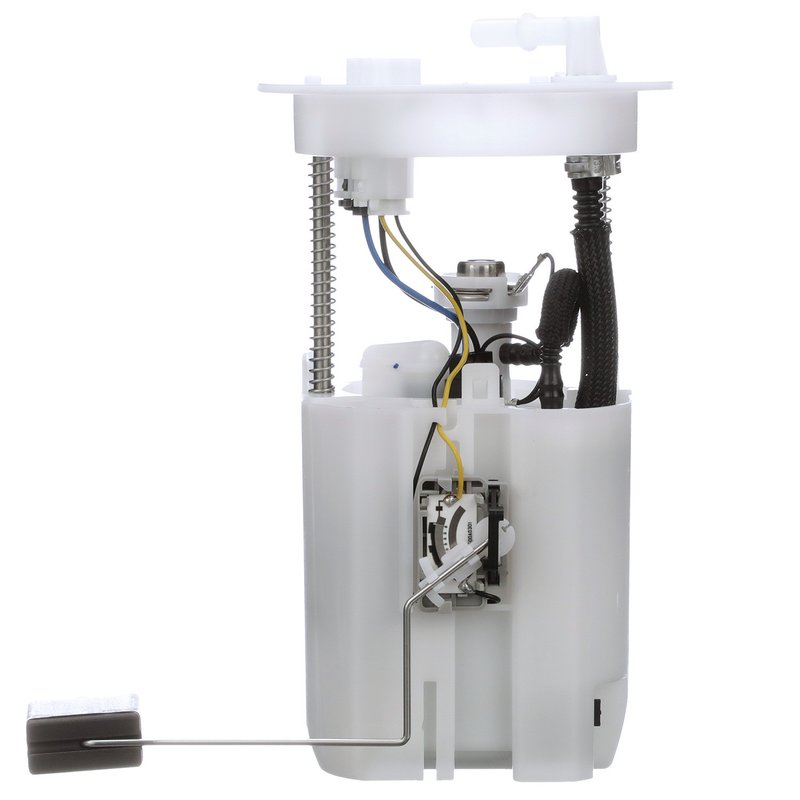

Delphi FG1965 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Honda Accord

The Delphi FG1965 fuel pump module assembly is designed specifically for Honda Accord models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and efficient operation for gasoline engines.

Key Features of Delphi FG1965 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel flow connection
• Operates on 12.0 volts, compatible with standard automotive electrical systems
• Includes an integrated fuel pressure regulator maintaining up to 58 psi maximum pressure
• Equipped with a blade-type terminal, featuring 4 male terminals for secure electrical connections
• Comes with a gasket, lock ring, and internal strainer to ensure proper sealing and filtration
• Quick connect outlet type with a single outlet for streamlined installation
• Includes a fuel level sender assembly with float arm for accurate fuel gauge readings
• Designed as a standard replacement part for in-tank installation
• Average current draw of 5 amps for efficient power consumption

Detailed Description of the Delphi FG1965 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1965) is engineered for use in Honda Accord vehicles requiring a reliable fuel delivery system. The electric pump operates at 12 volts and is designed to maintain a system pressure of 55 psi, with a maximum pressure rating of 58 psi. The module includes an internal strainer to prevent contaminants from entering the fuel system, and a quick connect outlet for ease of installation. The integrated fuel pressure regulator ensures consistent fuel flow, while the included fuel level sender assembly provides accurate fuel level readings to the vehicle’s dashboard. The assembly comes complete with a gasket, lock ring, and installation instructions to facilitate a proper and secure fit within the fuel tank.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Honda Accord models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel leaks by providing a new gasket and lock ring for secure sealing
• Improves fuel filtration with the included internal strainer to protect engine components

Installation Notes and Tips

• Ensure vehicle battery is disconnected before beginning installation to prevent electrical hazards
• Carefully remove the old fuel pump module from the tank, noting the orientation of the float arm and electrical connectors
• Replace the gasket and lock ring with the new components included to prevent fuel leaks
• Verify all electrical connections are secure on the blade terminals before reassembling
• Test fuel pump operation and fuel gauge accuracy before completing reassembly

Quality Assurance and Warranty Information

The Delphi FG1965 fuel pump module assembly is manufactured to meet OEM specifications for Honda Accord vehicles. It is a standard replacement grade part designed for durability and reliable performance. Delphi provides quality assurance backed by industry standards, ensuring the part functions correctly when installed according to instructions. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
