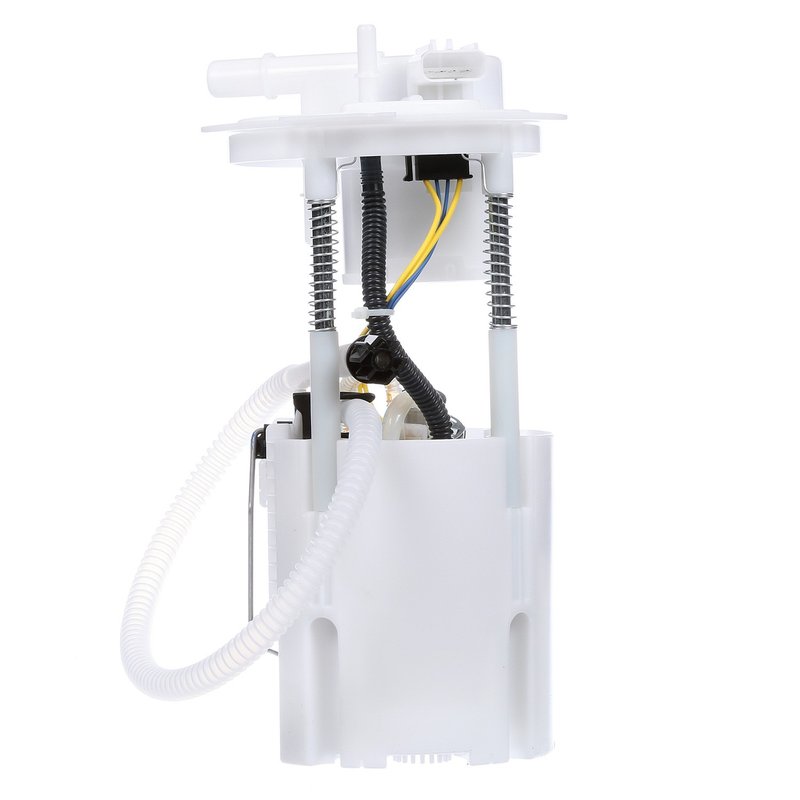

Delphi FG1968 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Jeep Cherokee and Chrysler 200

Delphi FG1968 is a standard replacement fuel pump module assembly for select Jeep Cherokee and Chrysler 200 applications. It combines the pump, fuel level sender, regulator, seal, and strainer in an in-tank design built for 12-volt gasoline fuel systems.

With OE heritage built into the design, this Delphi fuel pump module assembly supports direct replacement service for vehicles that need stable fuel delivery and accurate tank level reporting. It is a practical choice for Jeep Cherokee fuel pump module assembly replacement and Chrysler 200 fuel pump module assembly service.

Key Features

• In-tank electric fuel pump module assembly for gasoline applications
• 12.0-volt operation with a 58 psi system pressure rating
• Fuel pressure regulator included
• Fuel level sender assembly included
• Strainer and gasket/seal included
• Quick-connect outlet design with 3 outlet ports
• Blade terminals, 4-terminal male connection
• Standard replacement grade for service repair
• Delphi FG1968 part number for direct identification

Product Details

Delphi FG1968 is engineered as an in-tank fuel pump module assembly for gas-powered vehicles. It includes the pump module, float arm, seal, and instruction sheet, along with an internal strainer and fuel pressure regulator. The module is built around Delphi’s OE-focused manufacturing background, drawing on decades of supplier experience for modern vehicle fuel delivery systems. This part cross-references DFG1968 and SP7254M for the same application.

Compatible with 2016-2020 Jeep Cherokee and 2015-2017 Chrysler 200, this Delphi FG1968 fuel pump module assembly addresses common fuel delivery and fuel level sender service needs in the same OE-style package. Search terms such as Jeep Cherokee fuel pump module assembly, Chrysler 200 fuel pump module assembly, and Delphi FG1968 help identify the correct replacement quickly.

Common Issues This Part Can Help Solve

• Hard starting caused by weak or inconsistent fuel delivery
• Engine stalling from insufficient fuel pressure
• Fuel gauge readings that no longer match tank level
• Fuel starvation under load or during acceleration
• Fuel system leaks at the module seal area

Installation Notes

Before installation, clean the fuel tank to reduce the risk of future seal problems, as noted for the listed applications. Verify the outlet style, terminal configuration, and system pressure match the vehicle requirements before installation. This module uses an in-tank layout with quick-connect outlets and a blade terminal connection.

Quality Assurance

Delphi builds aftermarket parts using OE experience and knowledge developed through long-term supplier relationships with major automakers. FG1968 is a standard replacement fuel pump module assembly intended to meet the needs of the listed Jeep Cherokee and Chrysler 200 applications with the correct fuel delivery and sender functions.
