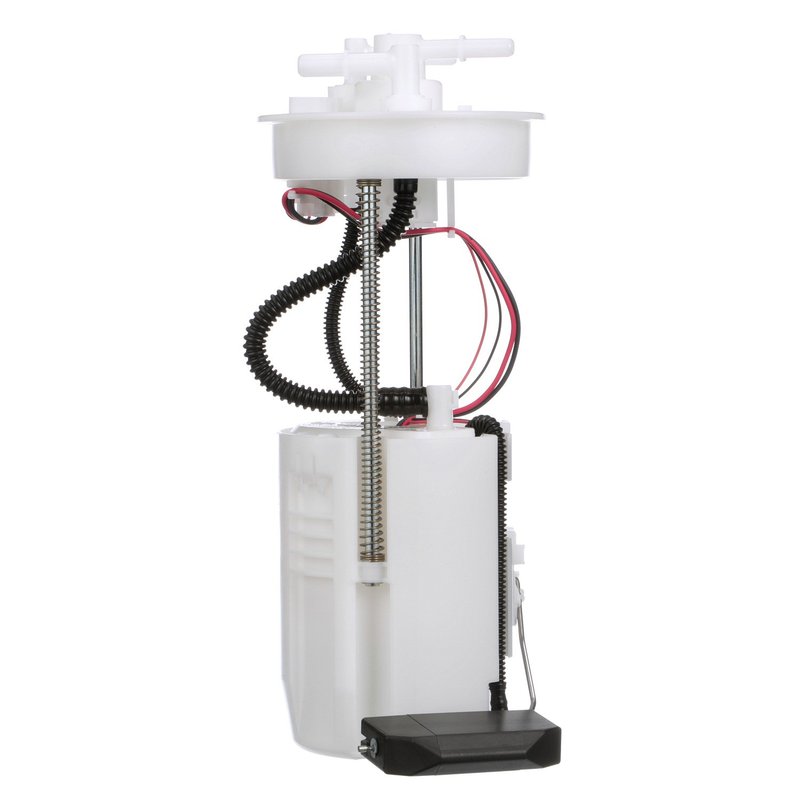

Delphi FG1975 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Honda Fit

The Delphi FG1975 fuel pump module assembly is designed specifically for Honda Fit models requiring a reliable in-tank electric fuel pump. Engineered to maintain consistent fuel delivery and pressure, this module ensures optimal engine performance and fuel efficiency.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Outlet outside diameter of 0.375 inches with three quick connect outlets
• Blade-type male terminals with four connections for easy wiring
• Standard replacement grade compatible with Honda Fit fuel systems
• System pressure rated at 58 psi for consistent fuel flow

Technical Details and Features

The Delphi FG1975 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer at the inlet to prevent debris from entering the pump, enhancing durability. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The outlet uses a quick connect type with three outlets, each having an outside diameter of 0.375 inches, facilitating straightforward fuel line connections. The pump draws an average current of 10 amps and has resistance values of 780 ohms when empty and 20 ohms when full, ensuring proper electrical performance. The assembly comes with a gasket or seal to maintain a secure and leak-free installation. Note that a lock ring is not included.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Honda Fit models requiring an in-tank electric fuel pump. It is intended as a direct replacement for the original equipment fuel pump module, restoring proper fuel delivery and system pressure.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses inaccurate fuel level readings due to faulty sender units
• Replaces noisy or weak fuel pumps causing poor engine performance
• Fixes fuel leaks by providing a new gasket and sealed assembly
• Restores proper system pressure to maintain engine efficiency

Installation Notes and Tips

Installation of the Delphi FG1975 fuel pump module assembly should be performed with the fuel tank removed or lowered to access the in-tank pump. Ensure all electrical connections use the blade-type male terminals provided, and verify the gasket is properly seated to prevent leaks. The quick connect outlets simplify fuel line attachment but confirm secure connections before reassembling. Follow all safety precautions when working with fuel system components, including depressurizing the fuel system prior to removal.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. This standard replacement grade part undergoes rigorous testing to ensure reliable operation under normal driving conditions. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship.
