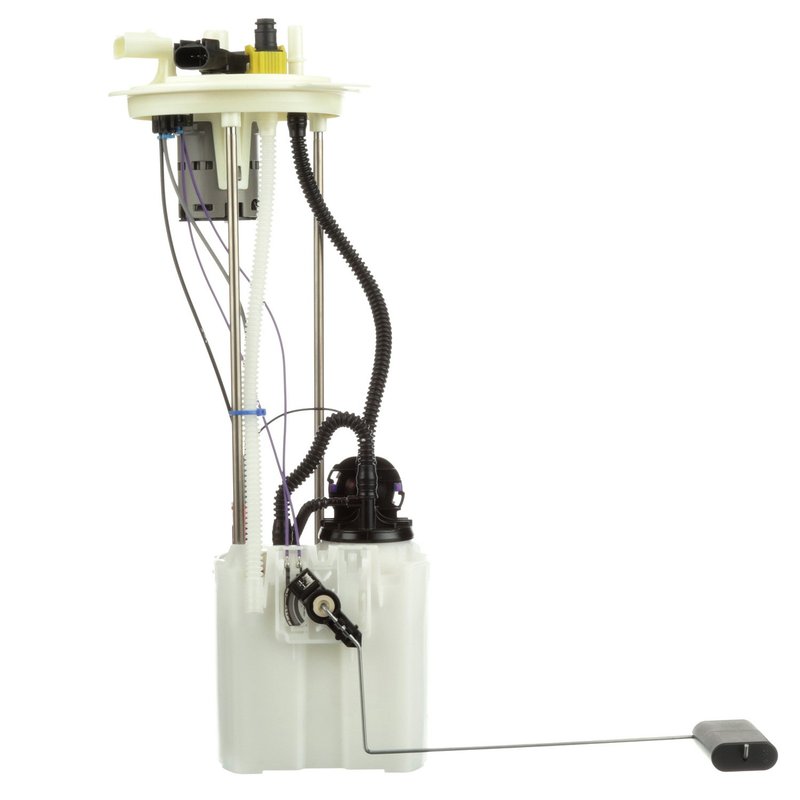

Delphi FG1983 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford E-350 Super Duty

The Delphi FG1983 fuel pump module assembly is designed specifically for the Ford E-350 Super Duty, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent system pressure and includes essential components for optimal performance.

Key Features of Delphi FG1983 Fuel Pump Module

• Voltage: 12.0V electric pump suitable for gas fuel systems
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Maximum pressure rating of 102 psi with a system pressure of 58 psi
• Internal strainer and external strainer inlet for effective fuel filtration
• Quick connect outlet type with three outlets, 0.375 inch outside diameter
• Blade-type male terminals with four terminal quantity for secure electrical connections
• Regulator and vapor pressure sensor included for fuel system regulation and emissions control
• Standard replacement grade designed for direct fit and function

Detailed Description of the Delphi FG1983 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG1983) is engineered for the Ford E-350 Super Duty to maintain consistent fuel delivery and system pressure. Operating at 12 volts, the electric pump supports gasoline fuel systems and features an internal strainer to prevent contaminants from entering the fuel system. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s gauge. The quick connect outlet with three outlets and a 0.375-inch outside diameter ensures compatibility with factory fuel lines. The blade-type male terminals (four in total) facilitate reliable electrical connections. Additionally, the module incorporates a regulator and vapor pressure sensor to maintain proper fuel pressure and support emissions compliance.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford E-350 Super Duty models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions caused by clogged or damaged strainers
• Supports emissions system functionality with integrated vapor pressure sensor

Installation Notes and Tips

• Designed as an in-tank replacement module; ensure proper fuel tank access before installation
• Verify electrical connections match blade-type male terminals with four terminals
• Check fuel line compatibility with quick connect outlets of 0.375 inch diameter
• Follow vehicle manufacturer’s safety procedures when handling fuel system components
• Inspect and clean fuel tank area before installing the new module to prevent contamination

Quality Assurance and Warranty

The Delphi FG1983 fuel pump module assembly is manufactured to meet standard replacement specifications for the Ford E-350 Super Duty. It undergoes rigorous testing to ensure consistent fuel pressure, electrical performance, and durability. This product includes a fuel level sender assembly and vapor pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi’s official documentation.
