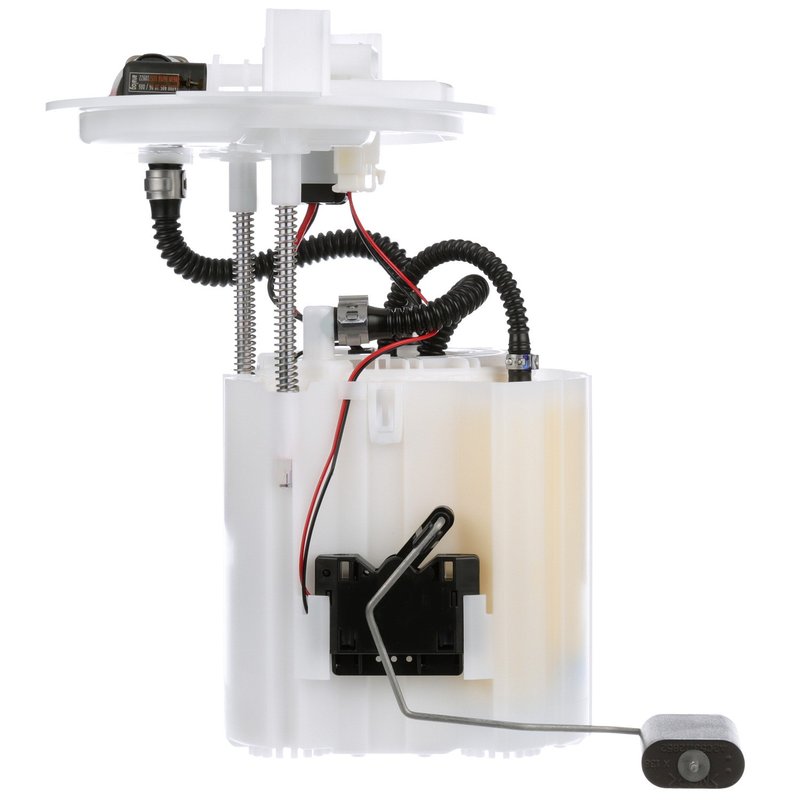

Delphi FG1987 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Mercedes-Benz CLA250 and GLA250

The Delphi FG1987 fuel pump module assembly is designed specifically for Mercedes-Benz CLA250 and GLA250 models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance.

• 12.0 Volt electric fuel pump with internal strainer
• Includes fuel level sender assembly with float arm
• Quick connect outlet with 0.313 inch outside diameter
• Blade-type terminals, 7 male terminals for secure electrical connection
• Regulator and internal strainer included for fuel pressure control and filtration
• Standard replacement grade for reliable performance

Detailed Features and Specifications

The Delphi FG1987 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet type, facilitating easy installation and maintenance. The outlet diameter measures 0.313 inches, compatible with factory fuel lines. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. Electrical connections are made via seven male blade terminals, ensuring a secure and stable connection. The assembly also incorporates a fuel pressure regulator to maintain consistent fuel delivery. This in-tank pump module is engineered to meet the specifications required by Mercedes-Benz CLA250 and GLA250 vehicles.

Applications and Problem Resolution

• Restores proper fuel delivery in Mercedes-Benz CLA250 and GLA250 models
• Resolves fuel gauge inaccuracies by replacing faulty fuel level sender assembly
• Eliminates engine performance issues caused by inconsistent fuel pressure
• Addresses fuel pump failure symptoms such as stalling or hard starts
• Prevents fuel contamination with integrated internal strainer

Installation Notes and Tips

Installation of the Delphi FG1987 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The quick connect outlet simplifies fuel line disconnection and reconnection. Verify all electrical connections are secure on the seven blade terminals. Since the assembly does not include a gasket or lock ring, reuse the original components or source replacements as needed. Follow manufacturer torque specifications and safety procedures during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG1987 is a standard replacement grade part designed for durability and reliable operation in Mercedes-Benz CLA250 and GLA250 vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
