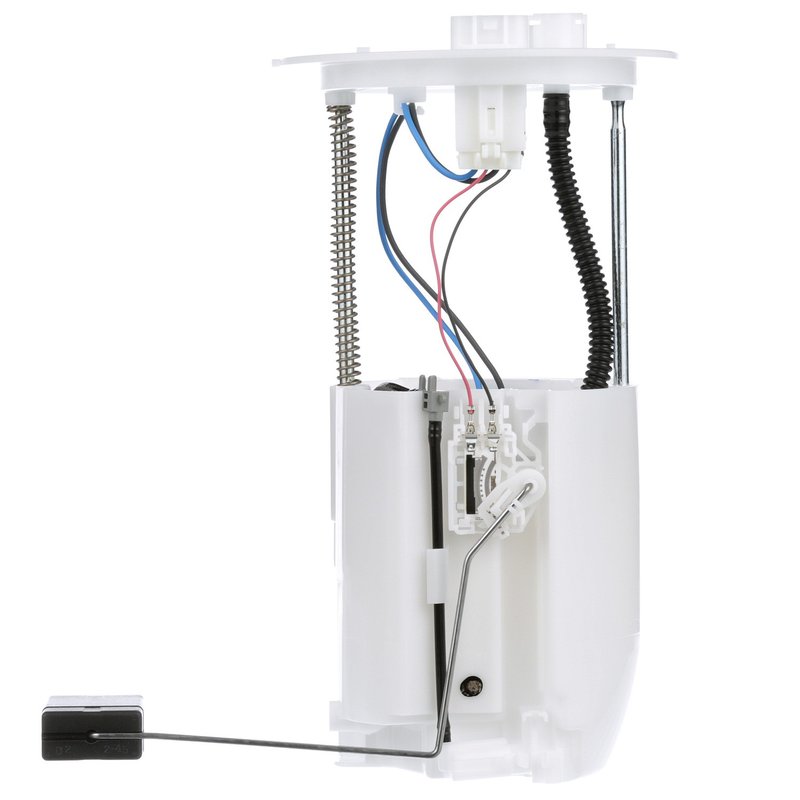

Delphi FG1992 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Toyota Highlander

Restore consistent fuel delivery with this Delphi fuel pump module assembly, part number FG1992. Built as a standard replacement for in-tank applications, it includes the fuel level sender assembly, regulator, and strainer for a direct service solution on select Toyota Highlander models.

Fits 2014-2016 Toyota Highlander, N/A. This Delphi FG1992 fuel pump module assembly is engineered for 12-volt gasoline systems with a 58 psi system pressure specification and an electric pump design.

Key Features

• Delphi FG1992 fuel pump module assembly for in-tank fuel system service
• Includes fuel pump module assembly with float arm and instruction sheet
• Fuel level sender assembly included for accurate tank level reporting
• Regulator included for integrated fuel pressure control
• Strainer included with internal strainer design
• 12.0-volt electric pump for gasoline applications
• Push-in outlet with 0.313 in. outside diameter
• Blade terminals, male terminal gender, 4-terminal configuration
• Standard replacement part for select Toyota Highlander applications

Detailed Description

Delphi FG1992 is a fuel pump module assembly developed for select 2014-2016 Toyota Highlander models. It is an in-tank, gasoline fuel pump module with an integrated regulator, fuel level sender assembly, and internal strainer, making it a practical replacement for vehicles that need restored fuel delivery and tank level signal accuracy. Delphi draws on OE experience and supplier knowledge from its long history supporting major automakers, and that background is reflected in the design and application coverage of this replacement module.

This part cross-references A30507 and SP9177M for the same application. Use Delphi FG1992 when servicing a Toyota Highlander fuel system that requires a 58 psi electric module with a push-in outlet and blade-style terminals.

Common Repair Uses

• Hard starting caused by weak or inconsistent fuel pressure
• Engine hesitation or stalling related to fuel delivery loss
• Inaccurate fuel gauge readings from a worn sender assembly
• Fuel pump noise or reduced pump output in the tank
• Fuel pressure complaints on 2014-2016 Toyota Highlander models

Installation Notes and Tips

Before installation, clean the fuel tank to help prevent future seal problems, as noted for this application. Verify connector style, outlet configuration, and pressure requirements before replacing the module. Because the gasket or seal and lock ring are not included, confirm the vehicle’s service parts condition before beginning the repair.

Quality Assurance

Delphi builds aftermarket parts using OE heritage and application knowledge developed through more than 100 years of experience supplying top automakers. FG1992 is a standard replacement fuel pump module assembly intended to meet the needs of the listed Toyota Highlander fitment.
