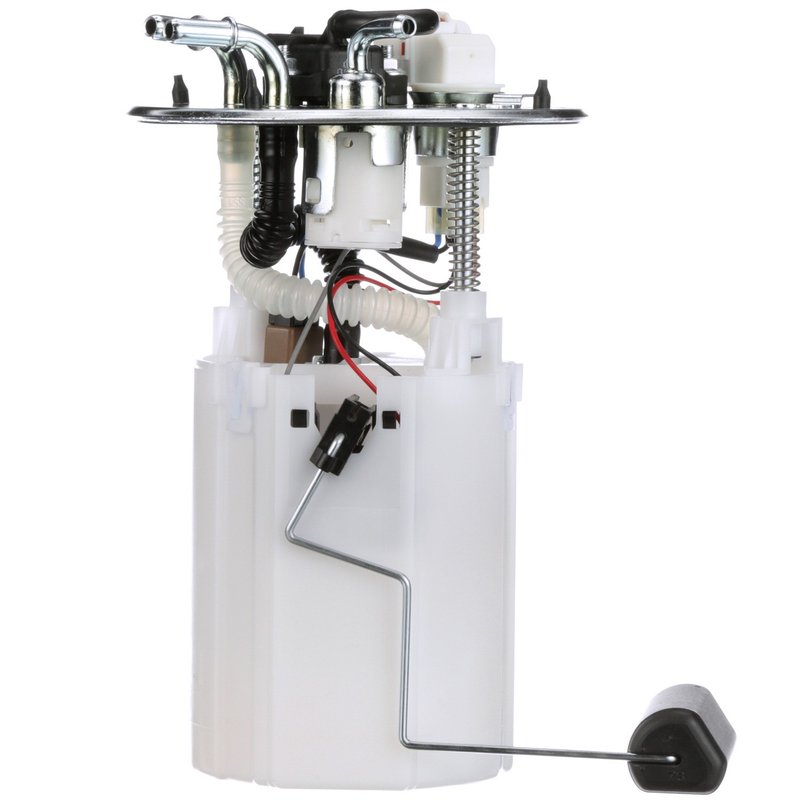

Delphi FG1993 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Kia Rio

The Delphi FG1993 fuel pump module assembly is designed specifically for Kia Rio models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.313 inch outside diameter and three outlet ports
• Blade-type male terminals with five connections for reliable electrical contact
• Designed for gasoline fuel systems with a system pressure of 48 psi
• Standard replacement grade with vapor pressure sensor included

Detailed Product Description

The Delphi FG1993 fuel pump module assembly is engineered as a direct replacement for Kia Rio vehicles, ensuring compatibility and performance. This electric pump operates at 12 volts and features an internal strainer to prevent debris from entering the fuel system. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The regulator is integrated to maintain consistent fuel pressure at 48 psi, supporting efficient engine operation. The quick connect outlet type with three outlets and a 0.313 inch diameter allows for secure and leak-free fuel line connections. The five blade-type male terminals facilitate stable electrical connections, while the included gasket or seal ensures a tight fit within the fuel tank.

Common Applications and Issues Addressed

• Restores proper fuel delivery in Kia Rio models experiencing fuel starvation or engine hesitation
• Replaces faulty fuel level sender assemblies causing inaccurate fuel gauge readings
• Solves issues related to inconsistent fuel pressure affecting engine performance
• Eliminates fuel pump noise or failure due to clogged strainers or worn components
• Addresses electrical connection problems with reliable blade terminal design

Installation Notes and Tips

Installation of the Delphi FG1993 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized and battery disconnected before beginning. The included gasket or seal must be properly seated to prevent leaks. Verify all electrical connections are secure on the five blade terminals. Use the quick connect outlets to attach fuel lines firmly. Follow the instruction sheet provided for detailed installation steps and torque specifications.

Quality Assurance and Warranty

Delphi manufactures the FG1993 fuel pump module assembly to meet OEM standards for fit, form, and function. This standard replacement part includes a vapor pressure sensor and is tested for electrical resistance and current draw to ensure reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
