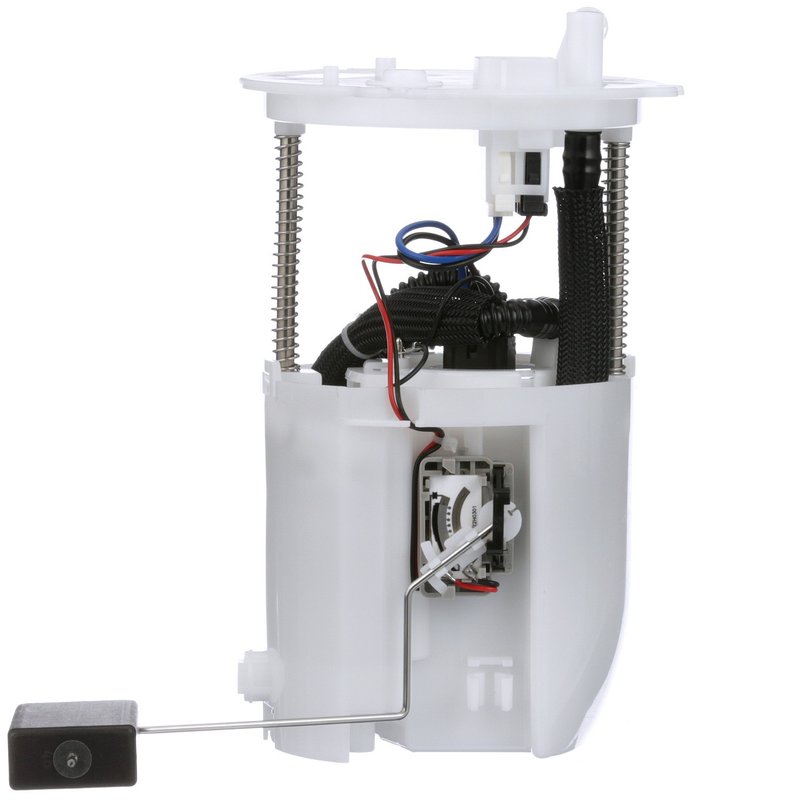

Delphi FG1995 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Mazda 5

The Delphi FG1995 fuel pump module assembly is designed specifically for Mazda 5 models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance and compatibility with your vehicle's fuel system.

• 12.0 Volt electric fuel pump with a maximum pressure of 58 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Internal strainer inlet and quick connect outlet for efficient fuel flow
• Blade-type male terminals with four connections for secure electrical fitment
• Comes with gasket and seal to ensure leak-free installation
• Average flow rating of 24 liters per hour and system pressure of 46 psi
• Standard replacement grade part designed for Mazda 5 fuel systems

Technical Details and Features

The Delphi FG1995 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features a 0.375-inch outlet outside diameter with a quick connect outlet type, facilitating straightforward installation and reliable fuel delivery. The module includes an internal strainer inlet to filter fuel before it reaches the pump, protecting the fuel system from contaminants. The assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. Electrical connections are made via four blade-type male terminals, ensuring a secure and stable connection. The pump’s average current draw is 7 amps, with resistance values of 203 ohms when empty and 10 ohms when full, supporting consistent operation under varying fuel levels.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Mazda 5 models requiring a standard replacement fuel pump module. It is designed for in-tank installation and supports gasoline fuel types. The Delphi FG1995 is suitable for addressing common fuel delivery and fuel level sensor issues in these vehicles.

• Resolves fuel delivery interruptions and inconsistent engine performance
• Replaces faulty or inaccurate fuel level sender assemblies
• Eliminates fuel leaks with included gasket and seal
• Restores proper fuel system pressure for smooth engine operation
• Prevents fuel contamination with internal strainer protection

Installation Notes and Tips

When installing the Delphi FG1995 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid spills and hazards. Verify that the gasket and seal are correctly positioned to prevent leaks. Connect the four blade-type male terminals securely, matching the original wiring configuration. The quick connect outlet simplifies fuel line attachment, but confirm a tight fit to avoid disconnections. Follow the included instruction sheet for detailed installation steps and safety precautions.

Quality Assurance and Warranty

Delphi manufactures the FG1995 fuel pump module assembly to meet standard replacement quality requirements, ensuring reliable performance and durability. The product includes a gasket, seal, and instruction sheet to support proper installation. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
