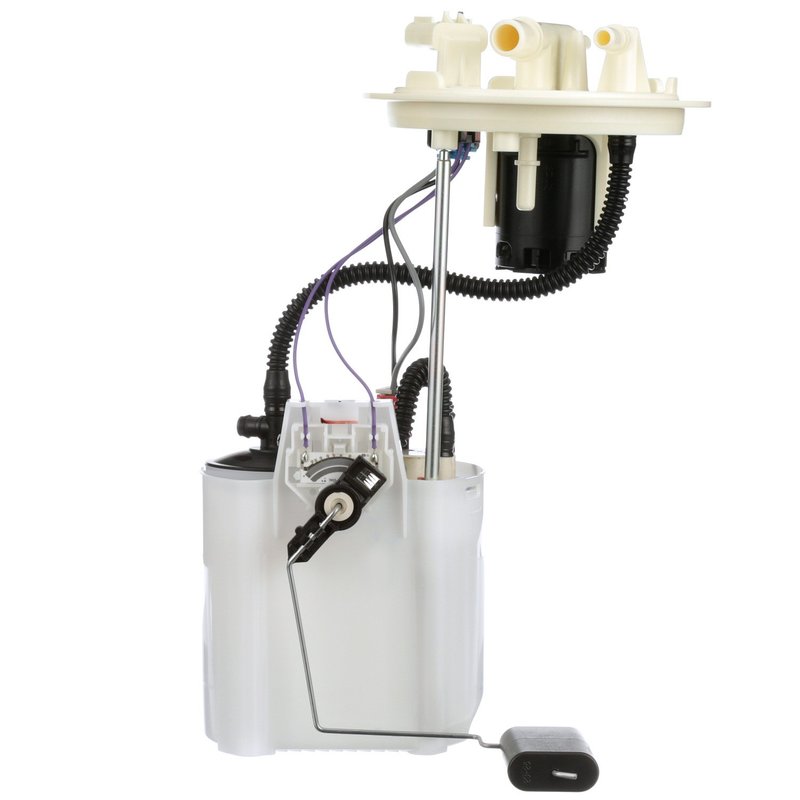

Delphi FG1996 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford F-150

The Delphi FG1996 fuel pump module assembly is designed specifically for Ford F-150 trucks, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components tailored for flex fuel systems.

Key Features of Delphi FG1996 Fuel Pump Module

• 12.0 Volt electric fuel pump with a maximum pressure of 80 psi
• Includes regulator and internal strainer for clean fuel flow
• Fuel level sender assembly with float arm included for precise fuel measurement
• Blade-type male terminals with 4 terminal quantity for secure electrical connections
• Quick connect outlet type with 0.375 inch outside diameter and three outlets
• Designed for in-tank installation compatible with Ford F-150 flex fuel systems
• Average flow rating of 37 liters per hour and system pressure of 58 psi

Detailed Description of the Delphi FG1996 Fuel Pump Module

The Delphi FG1996 fuel pump module assembly is engineered to meet the fuel delivery demands of Ford F-150 trucks running on flex fuel. This electric pump module operates at 12 volts and features an internal strainer to prevent contaminants from entering the fuel system. The included regulator maintains consistent fuel pressure up to 80 psi, ensuring optimal engine performance. The module’s quick connect outlets and blade-type male terminals simplify installation and electrical connectivity. Additionally, the fuel level sender assembly with float arm provides accurate fuel level readings, helping to avoid unexpected fuel shortages. The pump’s resistance ranges from 10 ohms when full to 180 ohms when empty, supporting reliable operation and diagnostics.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford F-150 flex fuel models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel delivery interruptions caused by clogged strainers or filters
• Suitable for restoring proper fuel system function after tank repairs or upgrades

Installation Notes and Tips

• Ensure compatibility with your specific Ford F-150 model year and flex fuel system before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Verify all electrical connections are secure and free of corrosion
• Test fuel pressure and fuel level sender operation after installation

Quality Assurance and Warranty

The Delphi FG1996 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Ford F-150 vehicles. It undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. While specific warranty terms may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship.
