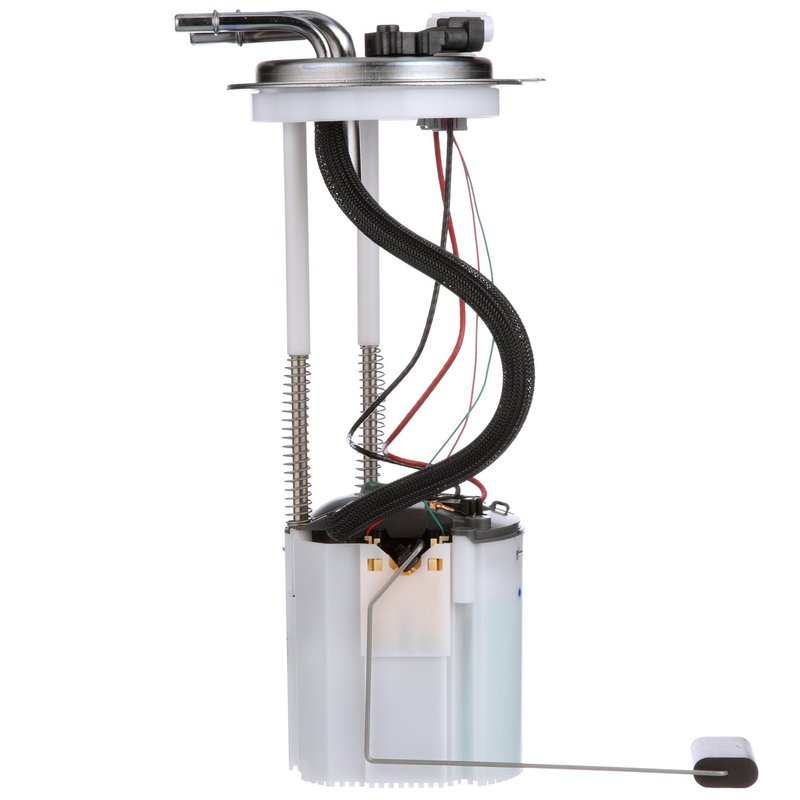

Delphi FG2000 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Vans

The Delphi FG2000 fuel pump module assembly is designed specifically for Chevrolet Express 3500 and GMC Savana 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance for your gas-powered vehicle.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Blade-type male terminals with four connections for reliable electrical contact
• Designed for in-tank installation with a system pressure rating of 62 psi
• Includes vapor pressure sensor for enhanced fuel system monitoring

Technical Details and Features

The Delphi FG2000 fuel pump module assembly operates at 12 volts and is engineered for gas fuel systems. It features an internal strainer inlet and a quick connect outlet type with two outlet ports, each measuring 0.375 inches in outside diameter. The assembly includes a fuel level sender with resistance values ranging from 250 ohms when empty to 40 ohms when full, providing accurate fuel gauge readings. The pump draws an average current of 12 amps and maintains a system pressure of 62 psi, suitable for the fuel delivery requirements of Chevrolet Express 3500 and GMC Savana 3500 vans. The module comes with a regulator, gasket, and strainer included, ensuring a complete replacement solution. The terminal configuration consists of four blade-type male terminals, facilitating straightforward electrical connections. Additionally, the vapor pressure sensor integrated into the module supports fuel system diagnostics and emissions control.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Express 3500 (Gasoline engines)
• GMC Savana 3500 (Gasoline engines)

It is designed as a standard replacement part for in-tank fuel pump modules, suitable for restoring proper fuel delivery and fuel level sensing in these specific van models.

Common Issues Addressed by the Delphi FG2000

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender assembly
• Fuel pressure irregularities affecting engine performance
• Fuel pump noise or overheating from worn internal components
• Fuel system vapor pressure sensor faults impacting emissions control

Installation Notes and Tips

When installing the Delphi FG2000 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. The module is designed for in-tank installation, so proper handling of the fuel tank and associated components is necessary. Use the included gasket and seals to prevent fuel leaks and ensure a secure fit. Verify that the blade-type male terminals align correctly with the vehicle’s wiring harness. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions. Testing fuel pressure and electrical connections after installation is recommended to confirm proper operation.

Quality Assurance and Warranty

Delphi manufactures the FG2000 fuel pump module assembly to meet or exceed OEM specifications for Chevrolet and GMC vehicles. This standard replacement part undergoes rigorous testing to ensure durability and reliable performance under normal operating conditions. The product includes a fuel level sender assembly and vapor pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the parts provider, but Delphi typically offers limited warranties covering defects in materials and workmanship.
