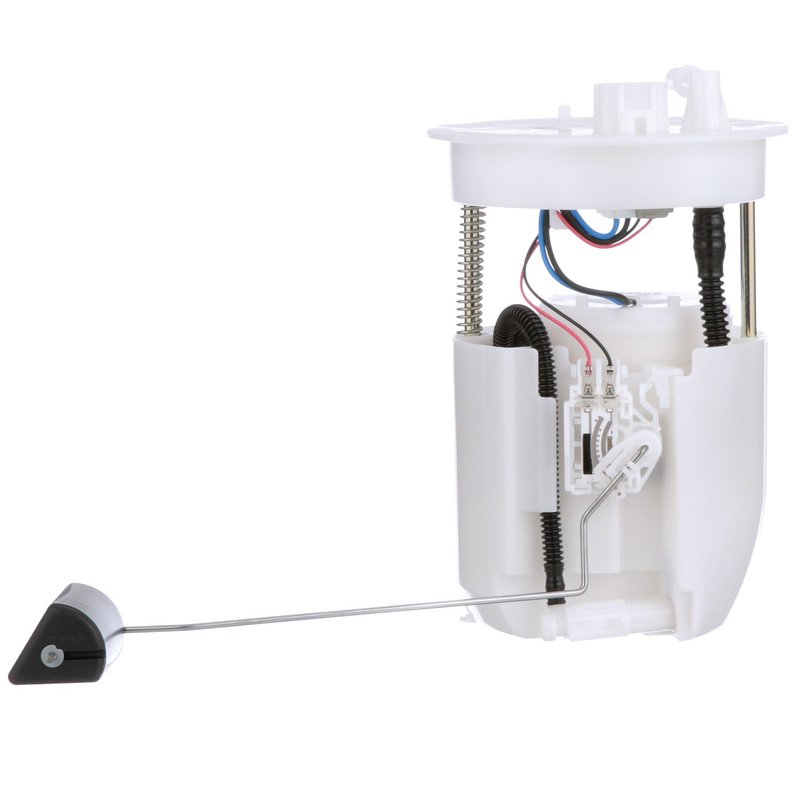

Delphi FG2004 Fuel Pump Module Assembly
OE Quality 60-Day Returns
Delphi

Delphi FG2004 Fuel Pump Module Assembly

Brand Delphi FG2004
Average Current Draw 10
Fuel Level Sender Assembly Included Yes
Fuel Type Gas
Gasket Or Seal Included No
In Tank or External In Tank
Inlet Type Strainer
Internal Or External Strainer Internal
Item Grade Standard Replacement
Lock Ring Included No
Outlet Outside Diameter 0.375
Outlet Quantity 1
Outlet Type Quick Connect
Package Contents Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
Pump Type Electric
Regulator Included Yes
Resistance Ohms Empty 250.0
Resistance Ohms Full 20.0
Strainer Included Yes
System Pressure 62 psi
Terminal Gender Male
Terminal Quantity 4
Terminal Type Blade
Vapor Pressure Sensor No
Voltage 12.0
Fits Mazda · 8 vehicles

Standard replacement. Direct-fit fuel pump module assembly for straightforward service.

Electric pump. Delivers 62 psi with a 12-volt gas application.

OE heritage. Built from 100 years of OE experience and supplier knowledge.

Cross-references BHN9-60-960, DFG2004 and E16466 for the same application. See all 8.

$560.34Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $560.34
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump Module Assembly options

Delphi FG2004 Fuel Pump Module Assembly

The Delphi FG2004 fuel pump module assembly is a standard replacement for select Mazda 3 applications with in-tank fuel delivery. Built with Delphi’s OE heritage and fuel system experience, it includes the pump module, float arm, fuel level sender assembly, regulator, and strainer for a direct-fit service solution.

Key Features

  • 12-volt electric in-tank fuel pump module assembly
  • Includes fuel level sender assembly and float arm
  • Regulator included for system control
  • Internal strainer included with quick-connect outlet
  • Blade terminals, male terminal design, 4-terminal configuration
  • Standard replacement for gas-powered applications
  • System pressure rated at 62 psi

Detailed Description

Delphi FG2004 is engineered as an in-tank fuel pump module assembly for gas applications, with a 0.375-inch outlet outside diameter and a quick-connect outlet for service-friendly installation. The unit is built around a 12.0-volt electric pump with an average current draw of 10 amps and includes the fuel level sender assembly to support accurate fuel gauge operation. Delphi’s OE background is reflected in the component design and application coverage, making this a practical replacement for Mazda 3 fuel system service.

Fits 2014-2018 Mazda 3, N/A. Fits 2014-2016 Mazda 3, N/A. This part cross-references DFG2004 and P76906 for the same application.

What It Helps Address

  • Hard starting caused by weak or failing fuel delivery
  • Engine stalling from inconsistent fuel pressure
  • Fuel gauge errors tied to sender wear
  • Poor acceleration from inadequate pump output
  • Fuel system service needs on in-tank Mazda 3 applications

Installation Notes and Tips

Before installing a replacement fuel pump module on Mazda 3 models, clean the fuel tank to reduce the risk of contamination-related pump failure. Delphi also recommends using fuel tank cleaning kit FC01 for the 2014-2018 Mazda 3 Japan-built applications. Verify electrical connector style, outlet connection type, and system pressure requirements before installation.

Quality Assurance

Delphi draws on more than 100 years of OE experience and supplies components to major automakers, with aftermarket parts built from that OE knowledge. The FG2004 is a standard replacement fuel pump module assembly intended to meet the needs of select Mazda 3 fuel system repairs.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2018Mazda3N/AJapan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2017Mazda3N/AJapan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2016Mazda3N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2016Mazda3N/AJapan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2015Mazda3N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2015Mazda3N/AJapan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
2014Mazda3N/AClean fuel tank before installing fuel pump to prevent future seal problems.
2014Mazda3N/AJapan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BHN9-60-960DFG2004E16466P76906PE01-13-ZE1PE18-13-35XPEAR-13-350SP4157M
