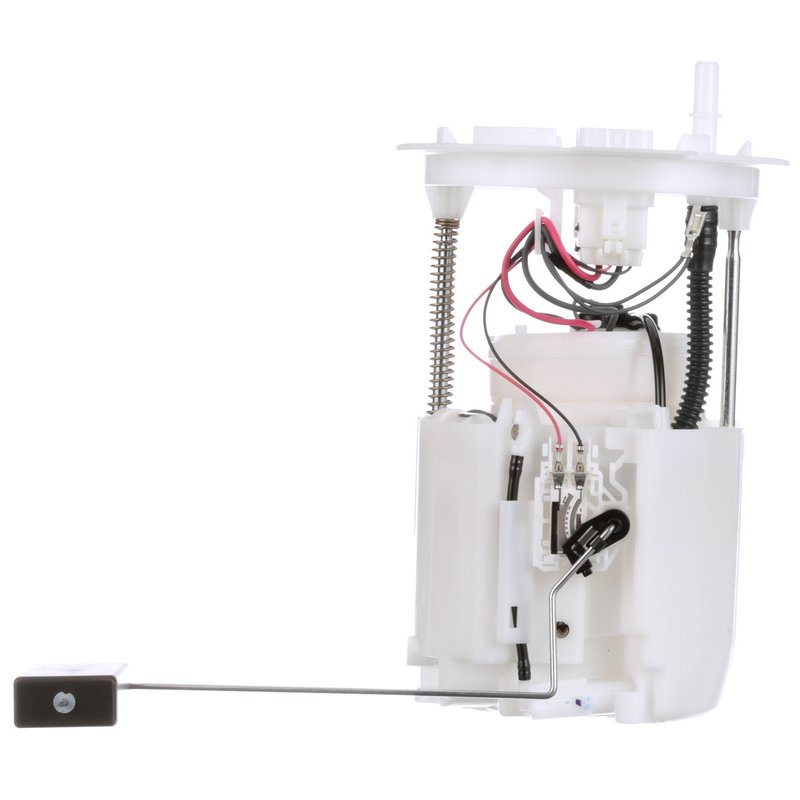

Delphi FG2057 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG2057 fuel pump module assembly is designed for reliable fuel delivery in select Ford and Lincoln vehicles. Engineered as an in-tank electric fuel pump, it ensures consistent fuel flow and accurate fuel level readings for your Ford Edge or Lincoln MKX.

• 12.0 Volt electric fuel pump with internal strainer
• Includes fuel level sender assembly with float arm
• Outlet outside diameter of 0.375 inches with quick connect outlet
• Blade-type terminals, 4 male terminals for secure electrical connection
• Regulator and internal strainer included for fuel system protection

Technical Details and Features

The Delphi FG2057 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch diameter, facilitating efficient fuel flow. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. Electrical connections are made via four male blade terminals, ensuring a secure and reliable connection. The assembly also incorporates a fuel pressure regulator to maintain optimal fuel pressure within the system.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Edge
• Lincoln MKX

It is designed as a direct replacement part for these models, ensuring proper fit and function when replacing the original fuel pump module.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings on the dashboard
• Fuel pressure fluctuations causing engine performance issues
• Fuel pump noise or electrical connection problems
• Clogged fuel strainer affecting fuel flow

Installation Notes and Tips

Installation of the Delphi FG2057 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Handle the fuel pump carefully to avoid damage to the internal strainer and float arm. Verify all electrical connections are secure and terminals are properly seated. Use appropriate tools for the quick connect outlet to avoid fuel line damage. Follow vehicle-specific service manual instructions for safe and correct installation.

Quality Assurance and Warranty

The Delphi FG2057 is a standard replacement grade fuel pump module assembly manufactured to meet OEM specifications. It undergoes rigorous testing to ensure durability and reliable performance in Ford Edge and Lincoln MKX vehicles. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
