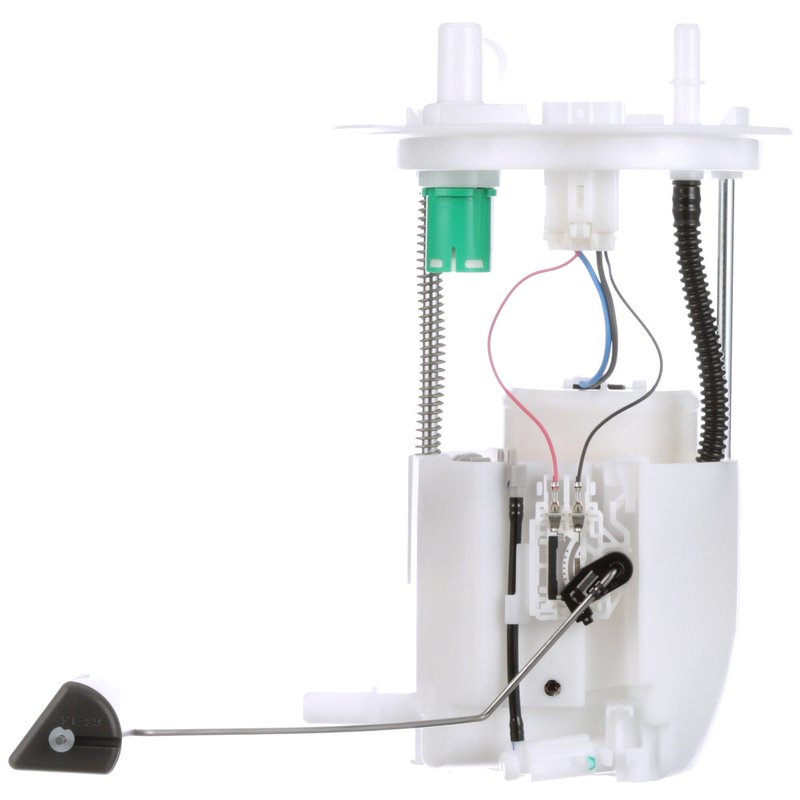

Delphi FG2058 Fuel Pump Module Assembly - Right

Delphi FG2058 Fuel Pump Module Assembly Overview

The Delphi FG2058 fuel pump module assembly is designed specifically for Ford Taurus X models, providing reliable fuel delivery with integrated fuel level sensing. This in-tank electric fuel pump module ensures consistent fuel pressure and efficient operation for gasoline engines.

• Compatible with Ford Taurus X vehicles
• 12.0 Volt electric fuel pump with internal strainer
• Includes fuel level sender assembly with float arm
• Regulator included for maintaining 65 psi system pressure
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals, 4 in total
• Standard replacement grade for reliable performance

Technical Details and Features

The Delphi FG2058 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375 inch outside diameter, ensuring secure and efficient fuel flow. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel level readings. The regulator maintains a system pressure of 65 psi, optimizing engine performance. Electrical connections use four male blade terminals for straightforward installation. This module is positioned on the right side of the fuel tank and is intended as a standard replacement part for Ford Taurus X models.

Common Applications and Problem Resolution

• Restores proper fuel pressure in Ford Taurus X fuel systems
• Replaces faulty or worn fuel pump modules causing engine hesitation
• Resolves inaccurate fuel gauge readings with integrated sender assembly
• Eliminates fuel delivery interruptions due to clogged strainers
• Addresses electrical connection issues with blade terminal design

Installation Notes and Tips

Installation of the Delphi FG2058 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The module features quick connect outlets and blade terminals for easier connection. Note that the package does not include a gasket or lock ring, so reuse or replacement of these components may be necessary. Follow the included instruction sheet carefully to avoid damage to the float arm or electrical terminals during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG2058 is a standard replacement grade part designed to provide reliable service life. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
