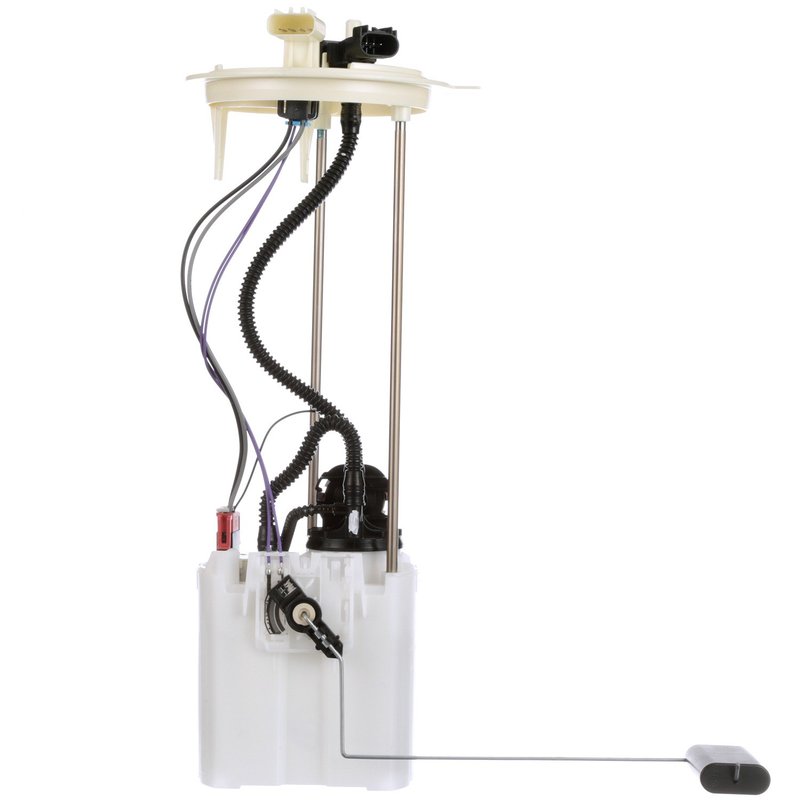

Delphi FG2059 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG2059 fuel pump module assembly is designed specifically for Ford F-350 Super Duty trucks. This in-tank electric fuel pump module ensures reliable fuel delivery and accurate fuel level readings for flex fuel applications.

• 12.5 Volt electric pump with an average current draw of 11 amps
• Includes internal strainer and fuel level sender assembly with float arm
• Maximum pressure rating of 120 psi and system pressure of 55 psi
• Quick connect outlet with 0.375 inch outside diameter
• Blade-type male terminals with four terminal connections
• Regulator and vapor pressure sensor included for optimal fuel system performance

Technical Details and Features

The Delphi FG2059 fuel pump module assembly is engineered for the Ford F-350 Super Duty, supporting flex fuel systems. It features an internal strainer inlet type and a quick connect outlet type, facilitating efficient fuel flow and easy installation. The pump operates at 12.5 volts and maintains a system pressure of 55 psi, with a maximum pressure capacity of 120 psi. The module includes a regulator and vapor pressure sensor to maintain consistent fuel pressure and monitor vapor emissions.

The assembly comes with four blade-type male terminals, ensuring secure electrical connections. Resistance values range from 180 ohms when empty to 10 ohms when full, providing accurate fuel level readings through the included fuel level sender assembly. The average flow rating is 48, supporting the fuel demands of the F-350 Super Duty's engine.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Ford F-350 Super Duty trucks equipped with flex fuel systems. It is a standard replacement part designed to restore proper fuel delivery and fuel level monitoring in these vehicles.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Corrects inaccurate fuel gauge readings caused by faulty sender units
• Replaces worn or damaged in-tank fuel pump modules
• Addresses fuel pressure inconsistencies affecting engine performance
• Supports vapor pressure sensor functions for emissions control

Installation Notes and Tips

Installation of the Delphi FG2059 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the blade-type male terminals provided. The quick connect outlet simplifies fuel line attachment. Verify that the regulator and vapor pressure sensor are properly connected to maintain system integrity. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG2059 is a standard replacement grade part designed for durability and reliable operation in Ford F-350 Super Duty trucks. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
