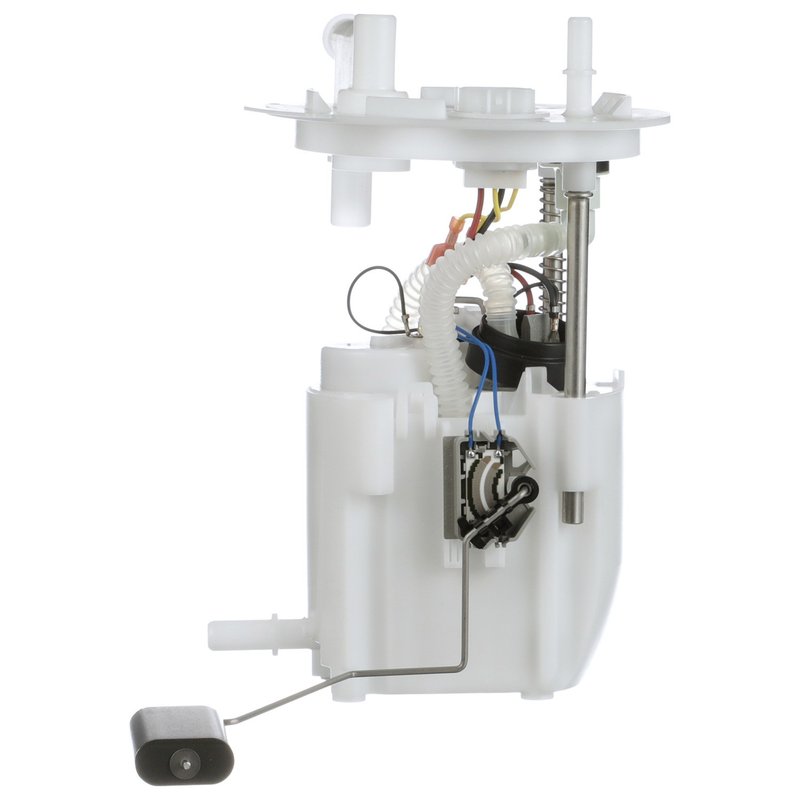

Delphi FG2069 Fuel Pump Module Assembly - Right

Delphi Fuel Pump Module Assembly Overview

The Delphi FG2069 fuel pump module assembly is designed for reliable fuel delivery in select Ford and Lincoln vehicles. Engineered as an in-tank electric fuel pump, it ensures consistent fuel pressure and flow for optimal engine performance in models like the Ford Taurus and Lincoln MKS.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Compatible with gasoline fuel systems in Ford Taurus and Lincoln MKS
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter for efficient fuel flow
• Standard replacement grade with 4 blade-type male terminals

Technical Specifications and Features

The FG2069 fuel pump module assembly operates at a system pressure of 65 psi with a maximum pressure rating of 68 psi, providing steady fuel delivery to the engine. It features an internal strainer inlet and a quick connect outlet, designed for ease of installation and maintenance. The pump draws an average current of 11 amps and delivers an average flow rating of 26 liters per hour, suitable for the fuel demands of the Ford Taurus and Lincoln MKS. The assembly includes a fuel level sender with resistance values ranging from 10 ohms (full) to 180 ohms (empty), enabling accurate fuel gauge readings.

Compatible Vehicles and Applications

This Delphi fuel pump module assembly FG2069 is compatible with the following vehicles:

• Ford Taurus (Gasoline models)
• Lincoln MKS (Gasoline models)

It is designed specifically for right-side tank positioning and is intended for use in gasoline fuel systems requiring a 12-volt electric pump with integrated fuel level sending capabilities.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pressure drops leading to poor engine performance or hesitation
• Fuel pump noise or failure from worn internal components
• Fuel contamination issues mitigated by the included internal strainer

Installation Notes and Tips

Installation of the Delphi FG2069 fuel pump module assembly requires removal of the fuel tank or access through the service panel. Ensure the gasket and seal included in the package are properly seated to prevent leaks. The quick connect outlet simplifies fuel line connection, while the 4 blade-type male terminals require secure electrical connections. Verify the correct orientation for the right-side tank position and follow vehicle-specific service manual instructions for safe handling of fuel system components.

Quality Assurance and Warranty

Delphi manufactures this fuel pump module assembly to meet standard replacement grade specifications, ensuring compatibility and durability for Ford Taurus and Lincoln MKS vehicles. The product includes a fuel level sender assembly and comes with an instruction sheet to assist with installation. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
