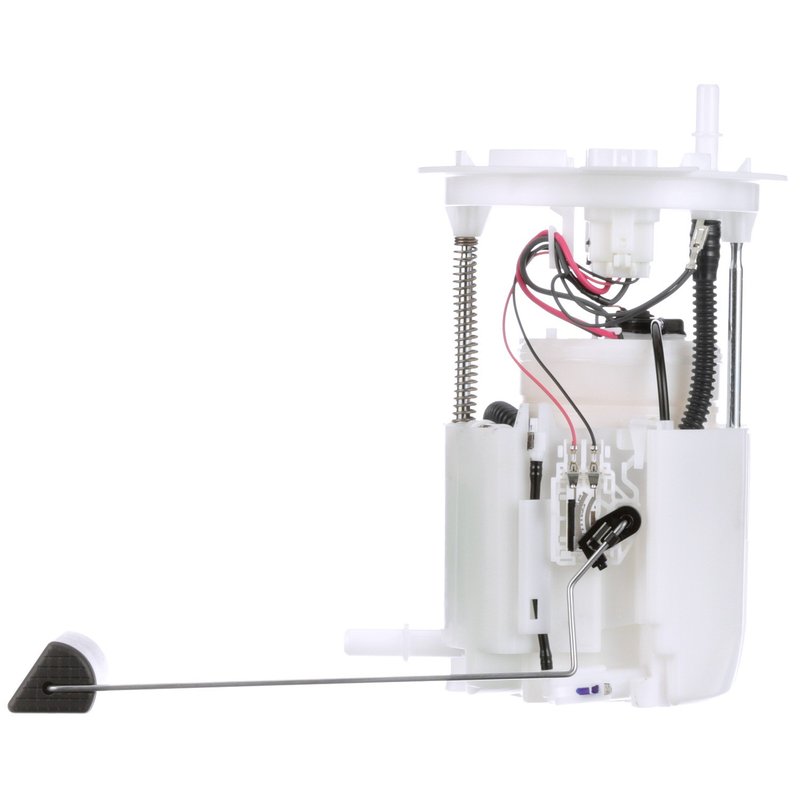

Delphi FG2076 Fuel Pump Module Assembly - Left
| Brand | Delphi FG2076 |
|---|---|
| Position | Left |
| Average Current Draw | 10 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 180.0 |
| Resistance Ohms Full | 10.0 |
| Strainer Included | Yes |
| System Pressure | 51 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Ford and Lincoln · 11 vehicles |
Standard replacement. OE heritage and knowledge built into every aftermarket part.
Electric in-tank design. Delivers reliable fuel delivery with a built-in regulator and sender.
Complete assembly. Includes a strainer, seal, and instruction sheet for easier installation.
Cross-references DFG2076, F2GZ 9H307-A and F2GZ 9H307-G for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Ford Edge
Delphi FG2076 is an in-tank fuel pump module assembly for gas applications, built for the left side on select Ford Edge and Lincoln Nautilus models. It combines the pump, fuel level sender, regulator, seal, and strainer in one OE-style replacement package for direct service work.
Key Features
- Fits 2015 Ford Edge, left; 2016-2019 Ford Edge, left; 2020-2024 Ford Edge, left; and 2019 Lincoln Nautilus, left
- 12-volt electric in-tank fuel pump module assembly for gasoline systems
- Integrated fuel pressure regulator with 51 psi system pressure
- Fuel level sender assembly included with 180 ohms empty and 10 ohms full resistance
- Quick-connect outlet with 0.375 in. outside diameter
- Blade terminals, male terminal gender, 4 terminal quantity
- Gasket or seal included; strainer included with internal strainer design
- Standard replacement grade from Delphi FG2076
Detailed Description
Delphi FG2076 is engineered as a direct replacement fuel pump module assembly for Ford Edge and Lincoln Nautilus applications that use an in-tank gasoline fuel delivery system. Delphi draws on OE heritage and supplier experience to build aftermarket parts with the same application knowledge used in original equipment development. This module includes the fuel pump, float arm, seal, strainer, and fuel level sender assembly, making it a practical service solution for restoring fuel delivery and tank-level reporting. The part number FG2076 is also referenced in interchange listings for DFG2076, F2GZ 9H307-A, F2GZ 9H307-G, and PFS-1068 for the same application.
Common Repair Uses
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Incorrect fuel gauge readings from a worn sender
- Fuel starvation under load from a failing in-tank pump
- Fuel system service on a Ford Edge or Lincoln Nautilus left-side tank module
Installation Notes and Tips
Confirm left-side placement before installation and verify the quick-connect outlet and blade terminal configuration match the vehicle harness and fuel line connection. Delphi notes that fuel tank contamination is a leading cause of premature pump failure; clean the fuel tank before installing the replacement module, especially on 2015-2019 Ford Edge and 2019 Lincoln Nautilus applications. For 2015 Ford Edge, Delphi recommends cleaning the tank before installation and using fuel tank cleaning kit FC01. Always inspect the tank, lines, and electrical connectors before final assembly.
Quality Assurance
Delphi builds this fuel pump module assembly using OE-focused engineering and application knowledge developed through long-term supplier experience with major automakers. FG2076 is a standard replacement part designed for the specified Ford Edge and Lincoln Nautilus fitments.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Ford | Edge | — | — | 2.0L | L4 | Left | — |
| 2023 | Ford | Edge | — | — | 2.0L | L4 | Left | — |
| 2022 | Ford | Edge | — | — | 2.0L | L4 | Left | — |
| 2021 | Ford | Edge | — | AWD | 2.0L | L4 | Left | — |
| 2020 | Ford | Edge | — | AWD | 2.0L | L4 | Left | — |
| 2019 | Ford | Edge | — | AWD | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2019 | Lincoln | Nautilus | — | AWD | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Ford | Edge | — | AWD | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Ford | Edge | — | AWD | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | Ford | Edge | — | AWD | — | — | Left | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | Ford | Edge | Titanium | AWD | — | — | Left | From 01/19/2015; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
