Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

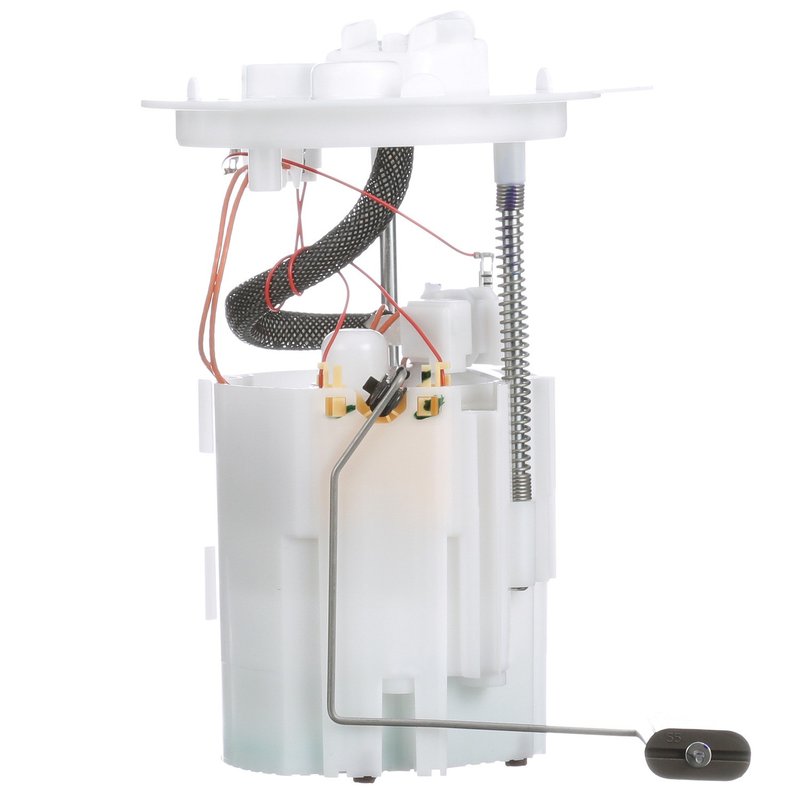

Delphi FG2079 Fuel Pump Module Assembly
| Brand | Delphi FG2079 |
|---|---|
| Outlet Outside Diameter | 0.313 |
| Voltage | 12.0 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 1 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 463.0 |
| Resistance Ohms Full | 51.0 |
| Internal Or External Strainer | Internal |
| Average Current Draw | 10 |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel pump module assembly w/float arm, seal, instruction sheet |
| System Pressure | 51 psi |
| Vapor Pressure Sensor | No |
| Product line | Discontinued |
| Fits | Ford · 11 vehicles |
Standard replacement. Built as a direct-fit fuel pump module assembly.
Electric pump. Delivers 51 psi for dependable fuel delivery.
Includes seal. Comes with a strainer, regulator, and fuel level sender.
Cross-references CFG2079, FV6Z 9A299-A and FV6Z 9H307-C for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Ford C-Max
This Delphi fuel pump module assembly is a standard replacement for the in-tank fuel delivery system on the 2013-2018 Ford C-Max. Built with Delphi’s OE heritage and application knowledge, it includes the fuel pump module assembly with float arm, seal, and instruction sheet for a direct-fit service solution.
Key Features
- Part number FG2079 fuel pump module assembly
- Fits 2013-2018 Ford C-Max, in tank
- 12.0V electric pump for gasoline applications
- System pressure rated at 51 psi
- Fuel level sender assembly included
- Regulator included for integrated fuel system service
- Quick-connect outlet with one outlet port
- Strainer and gasket or seal included
- Blade terminals, male terminal gender, 4 terminals
- Standard replacement grade for OE-style service
Detailed Description
Delphi FG2079 is an in-tank fuel pump module assembly engineered for gasoline-powered Ford C-Max models from 2013 through 2018. It combines the pump, fuel level sender assembly, regulator, strainer, and seal into one service part, helping restore proper fuel delivery and tank level reporting. Delphi’s OE background and broad aftermarket coverage are reflected in the design and component selection for this application. This part cross-references Ford OE numbers FV6Z 9A299-A and FV6Z 9H307-C for the same application.
What It Is Used For
- Restoring fuel pressure on a Ford C-Max with hard-start or no-start symptoms
- Correcting fuel starvation caused by a worn in-tank pump
- Repairing inaccurate fuel gauge readings from a failing sender assembly
- Addressing fuel delivery issues related to a weak regulator or clogged strainer
- Replacing a noisy or inconsistent electric fuel pump module
Installation Notes and Tips
Fits 2013-2018 Ford C-Max, in tank. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify connector style, outlet type, and system pressure before installation. The module uses a quick-connect outlet, blade terminals, and a male terminal configuration.
Quality Assurance
Delphi builds this FG2079 module using OE-based engineering knowledge developed through long-term supplier experience with major automakers. The result is a standard replacement fuel pump module assembly intended to meet the needs of the listed Ford C-Max applications.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2018 | Ford | C-Max | — | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2017 | Ford | C-Max | Hybrid Titanium | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2017 | Ford | C-Max | Hybrid SE | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2016 | Ford | C-Max | Hybrid SEL | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2016 | Ford | C-Max | Hybrid SE | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2015 | Ford | C-Max | Hybrid SEL | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2015 | Ford | C-Max | Hybrid SE | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2014 | Ford | C-Max | Hybrid SEL | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2014 | Ford | C-Max | Hybrid SE | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2013 | Ford | C-Max | Hybrid SEL | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2013 | Ford | C-Max | Hybrid SE | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| No rows match your filter. | ||||
