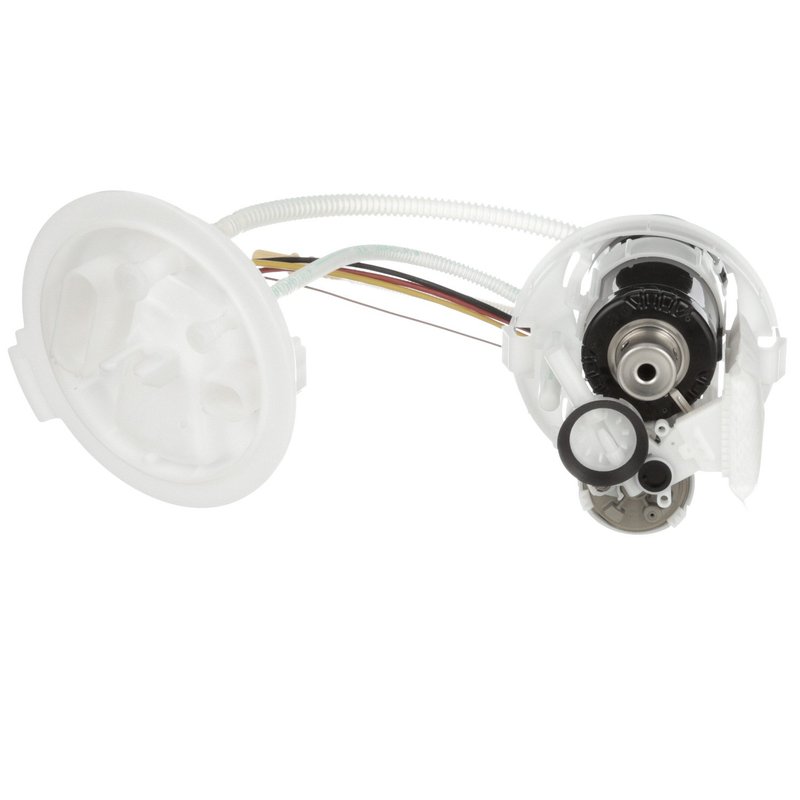

Delphi FG2093 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Audi Models

The Delphi FG2093 fuel pump module assembly is designed to provide consistent fuel delivery for select Audi vehicles. Engineered as a standard replacement part, this electric in-tank fuel pump module ensures proper fuel flow and filtration for models including the Audi A4, A4 allroad, A4 Quattro, A5 Quattro, A5 Sportback, S4, S5, and S5 Sportback.

• Electric fuel pump module assembly with part number FG2093
• Compatible with Audi A4, A4 allroad, A4 Quattro, A5 Quattro, A5 Sportback, S4, S5, and S5 Sportback
• 12.0 Volt operation with an average current draw of 10 amps
• Includes external strainer inlet and quick connect outlet (0.375 inch diameter)
• Regulator and strainer included for optimal fuel pressure and filtration
• Four male blade terminals for secure electrical connections
• In-tank installation design for direct fuel delivery
• Standard replacement grade without fuel level sender assembly or vapor pressure sensor

Detailed Product Description

The Delphi FG2093 fuel pump module assembly is an electric pump designed for in-tank installation, delivering reliable fuel flow to the engine. It operates at 12 volts with an average current draw of 10 amps, suitable for gasoline fuel systems. The module features an external strainer inlet to prevent debris from entering the fuel system and a quick connect outlet with a 0.375-inch outside diameter for efficient fuel delivery. The included regulator maintains proper fuel pressure, ensuring consistent engine performance. The assembly has four male blade terminals, providing secure and straightforward electrical connections. This module does not include a fuel level sender assembly or vapor pressure sensor, focusing solely on fuel delivery functions.

Compatible Audi Models and Applications

This fuel pump module assembly is compatible with a range of Audi vehicles, including:

• Audi A4 and A4 allroad
• Audi A4 Quattro
• Audi A5 Quattro and A5 Sportback
• Audi S4
• Audi S5 and S5 Sportback

It is designed to replace the original equipment fuel pump module in these models, ensuring proper fit and function.

Common Issues Addressed by the Delphi FG2093

• Intermittent or complete fuel delivery failure
• Engine stalling or hesitation due to inconsistent fuel pressure
• Fuel pump noise or abnormal operation
• Reduced engine performance or power loss
• Fuel system contamination due to clogged strainers

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your specific Audi model and year before replacement
• Handle the fuel pump module carefully to avoid damage to the strainer and electrical terminals
• Follow manufacturer instructions included with the product for proper installation procedures
• Inspect the fuel tank and related components for contamination or damage during replacement

Quality Assurance and Warranty

The Delphi FG2093 fuel pump module assembly is manufactured to meet standard replacement quality requirements. Delphi is a recognized brand in automotive fuel delivery components, ensuring reliable performance and durability. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation for exact warranty terms.
