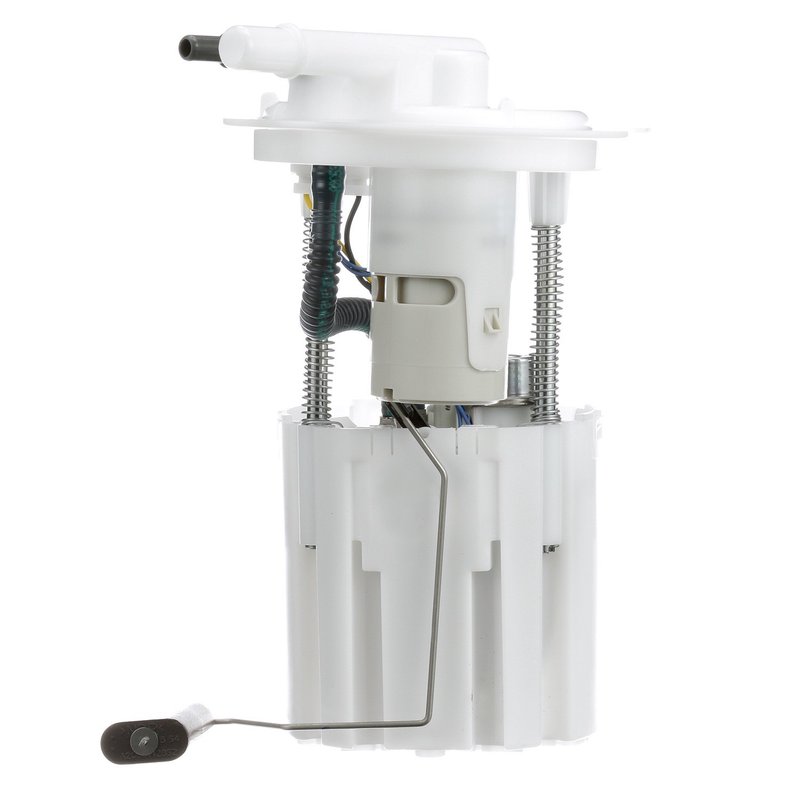

Delphi FG2104 Fuel Pump Module Assembly

Fuel Pump Module Assembly for 2008 GM Vans

Delphi FG2104 is an in-tank fuel pump module assembly built for 12-volt flex-fuel applications with OE-style fuel delivery control. It includes the fuel level sender assembly, regulator, strainer, gasket or seal, and vapor pressure sensor for a direct replacement on select 2008 Chevrolet Uplander and Pontiac Montana models.

Key Features

• In-tank electric fuel pump module assembly for flex-fuel systems
• 12.0-volt design with a maximum pressure rating of 64.0
• Integrated fuel pressure regulator and vapor pressure sensor
• Fuel level sender assembly included with 40.0 ohms full and 250.0 ohms empty resistance
• Quick-connect outlet design with two outlets and blade terminals
• Strainer and gasket or seal included for service replacement
• Delphi FG2104 is built from OE heritage and application knowledge

Detailed Description

Delphi FG2104 is a standard replacement fuel pump module assembly engineered for in-tank installation and consistent fuel delivery in select 2008 Chevrolet Uplander and 2008 Pontiac Montana vehicles. It is configured for flex fuel use, features an average flow rating of 37, and operates with an average current draw of 10. The module uses a quick-connect outlet, male blade terminals, and a 4-terminal layout for straightforward integration with the vehicle’s fuel system. Delphi FG2104 also cross-references 19167796 and 19208975 for the same application.

Delphi draws on more than a century of OE experience, supplying components to major automakers and applying that knowledge to aftermarket fuel system parts. That background is reflected in the module’s OE-style construction and application-specific design for the Chevrolet Uplander and Pontiac Montana.

Common Problems This Part Can Address

• Hard starting caused by weak or inconsistent fuel delivery
• Fuel pressure loss that affects drivability and throttle response
• Inaccurate fuel level readings from a worn sender assembly
• Fuel system faults related to a failing in-tank pump module
• Vapor pressure sensor issues tied to the original module assembly

Installation Notes and Tips

Fits 2008 Chevrolet Uplander, N/A. Fits 2008 Pontiac Montana, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems, as noted in the fitment data. Verify connector style, outlet configuration, and system requirements before installation. Use the included seals and strainer during service, and confirm the tank is properly secured after replacement.

Quality Assurance

Delphi builds this fuel pump module assembly using OE-based engineering knowledge developed through long-term supplier experience with major automakers. The FG2104 is a standard replacement part intended to meet the demands of the listed applications with the included regulator, sender, strainer, and vapor pressure sensor.
