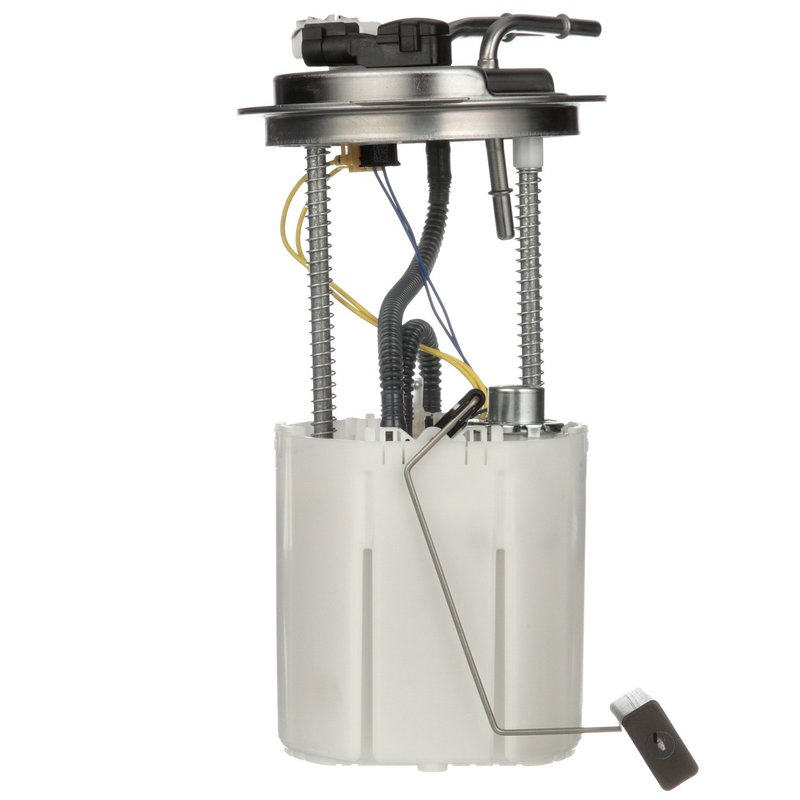

Delphi FG2105 Fuel Pump Module Assembly
| Brand | Delphi FG2105 |
|---|---|
| Average Current Draw | 16 |
| Average Flow Rating | 34 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 87.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seals, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 250.0 |
| Resistance Ohms Full | 40.0 |
| Strainer Included | Yes |
| System Pressure | 84 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | Yes |
| Voltage | 12.0 |
| Fits | Cadillac, Chevrolet, and GMC · 6 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built from Delphi's century of OE experience and supplier knowledge.
Complete assembly. Includes pump, float arm, seals, strainer, and fuel level sender.
Cross-references Spectra Premium SP6750M, 13512934 and 13582493 for the same application. See all 6.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for GM SUVs
The Delphi FG2105 fuel pump module assembly is a standard replacement for select 2015-2016 Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon applications. Built with Delphi’s OE heritage and fuel system experience, it combines the pump, sender, regulator, and sealing components needed for in-tank fuel delivery service.
With a 12-volt electric design, quick-connect outlets, and an integrated fuel level sender, this module is built for direct replacement service on gas-powered GM SUVs that require stable fuel pressure and accurate tank level reporting.
Key Features
- Delphi FG2105 fuel pump module assembly for in-tank fuel delivery
- Fits 2015-2016 Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon
- 12.0-volt electric pump for gas applications
- Integrated fuel pressure regulator and vapor pressure sensor
- Fuel level sender assembly included for tank level monitoring
- Quick-connect outlet design with blade terminals
- Strainer and gasket or seal included
- Standard replacement part built from OE-focused fuel system knowledge
Detailed Description
The Delphi FG2105 is a fuel pump module assembly engineered for in-tank installation on select Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon models from 2015-2016. It includes the pump module, float arm, seals, and instruction sheet, along with an internal strainer, fuel level sender assembly, regulator, and vapor pressure sensor. The module is designed for gas fuel systems and supports system pressure requirements up to 84 psi, with a maximum pressure rating of 87.0.
Delphi draws on long-standing OE supply experience to build aftermarket fuel components with the fit, function, and system integration expected in modern fuel delivery repairs. The FG2105 uses quick-connect outlets, a blade terminal connection, and an in-tank electric pump layout to support direct replacement service on the listed GM SUV applications. This part cross-references Spectra Premium SP6750M for the same application.
Common Problems This Part Can Address
- Hard starting caused by weak or inconsistent fuel delivery
- Engine stalling from low fuel pressure
- Incorrect fuel gauge readings from a worn sender
- Fuel pressure regulation issues within the tank module
- Fuel system faults related to a failing in-tank pump assembly
Installation Notes and Tips
Fits 2015-2016 Cadillac Escalade, N/A. Fits 2015-2016 Chevrolet Tahoe, N/A. Fits 2015-2016 GMC Yukon, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify connector style, outlet configuration, and pressure requirements before installation. Always confirm the tank is free of contamination before placing the new module into service.
Quality Assurance
Delphi builds this fuel pump module assembly using OE-focused engineering and fuel system experience developed through supply relationships with major automakers. The FG2105 is a standard replacement part intended to restore proper fuel delivery, sender operation, and system pressure control on the listed GM applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2016 | Cadillac | Escalade | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | Chevrolet | Tahoe | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | GMC | Yukon | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | Cadillac | Escalade | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | Chevrolet | Tahoe | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | GMC | Yukon | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
