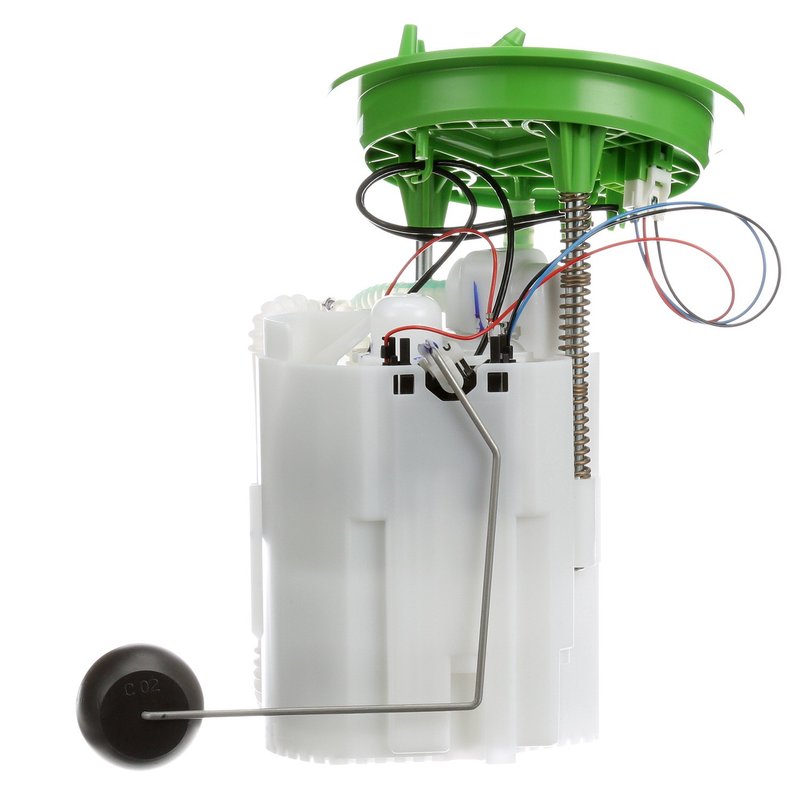

Delphi FG2115 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Audi and Volkswagen

Delphi FG2115 is a standard replacement fuel pump module assembly for select Audi and Volkswagen applications. It combines the pump, fuel level sender assembly, regulator, and internal strainer in one in-tank unit for 12-volt gasoline systems with a 58 psi system pressure rating.

Built from Delphi’s OE heritage and aftermarket experience, this module is specified for Audi A3 Quattro, S3, TT Quattro, TTS Quattro, and Volkswagen Golf R, Golf Alltrack, and Golf SportWagen applications listed below. Part number FG2115 is also referenced by cross numbers used in the same application.

• 12.0-volt electric in-tank fuel pump module assembly
• Fuel type: gas
• System pressure: 58 psi
• Regulator included
• Fuel level sender assembly included
• Strainer included; internal strainer design
• Quick-connect outlet, 0.375 in. outlet outside diameter
• 7-terminal male blade connection
• Average current draw: 10 amps
• Standard replacement grade

OE-Style Construction and Application Details

Delphi FG2115 is engineered as an in-tank fuel pump module assembly with a float arm and instruction sheet included in the package contents. The unit uses a quick-connect outlet, blade terminals, and an integrated regulator to support the fuel delivery requirements of the listed Audi and Volkswagen platforms. Delphi’s OE background is reflected in the part’s application coverage and component layout, making FG2115 a direct replacement choice for vehicles that use this configuration.

This part cross-references 5Q0 919 087 AH and 5Q0 919 673 AK for the same application. Delphi FG2115 is listed for Audi A3 Quattro, Audi S3, Audi TT Quattro, Audi TTS Quattro, Volkswagen Golf R, Volkswagen Golf Alltrack, and Volkswagen Golf SportWagen applications across the model years shown below.

Common Problems This Part Can Address

• Hard starting caused by weak fuel delivery
• Engine stalling from inconsistent pump output
• Fuel gauge errors related to a failing sender assembly
• Low fuel pressure conditions in gasoline systems
• Noise or drivability issues from a worn in-tank pump module

Installation Notes and Tips

Before installing a replacement fuel pump module, clean the fuel tank to reduce the risk of contamination-related seal or pump problems. For 2016 Audi A3 Quattro applications, fuel tank contamination is specifically noted as a concern, and use of fuel tank cleaning kit FC01 is recommended. Verify connector style, outlet type, and system pressure before installation, and confirm the vehicle uses the listed in-tank gasoline configuration.

• Fits 2015 Audi A3 Quattro, N/A
• Fits 2016 Audi A3 Quattro, N/A
• Fits 2017-2019 Audi A3 Quattro, N/A
• Fits 2020 Audi A3 Quattro, N/A
• Fits 2022-2024 Audi A3 Quattro, N/A
• Fits 2015-2020 Audi S3, N/A
• Fits 2016-2020 Audi TT Quattro, N/A
• Fits 2021-2023 Audi TT Quattro, N/A
• Fits 2021-2023 Audi TTS Quattro, N/A
• Fits 2016-2020 Audi TTS Quattro, N/A
• Fits 2017-2019 Volkswagen Golf Alltrack, N/A
• Fits 2015-2019 Volkswagen Golf R, N/A
• Fits 2017-2019 Volkswagen Golf SportWagen, N/A

Quality Assurance

Delphi draws on more than a century of OE experience and a broad aftermarket portfolio to produce replacement fuel system components for a wide range of vehicles and model years. FG2115 is a standard replacement fuel pump module assembly built to match the listed application requirements for Audi and Volkswagen platforms.
