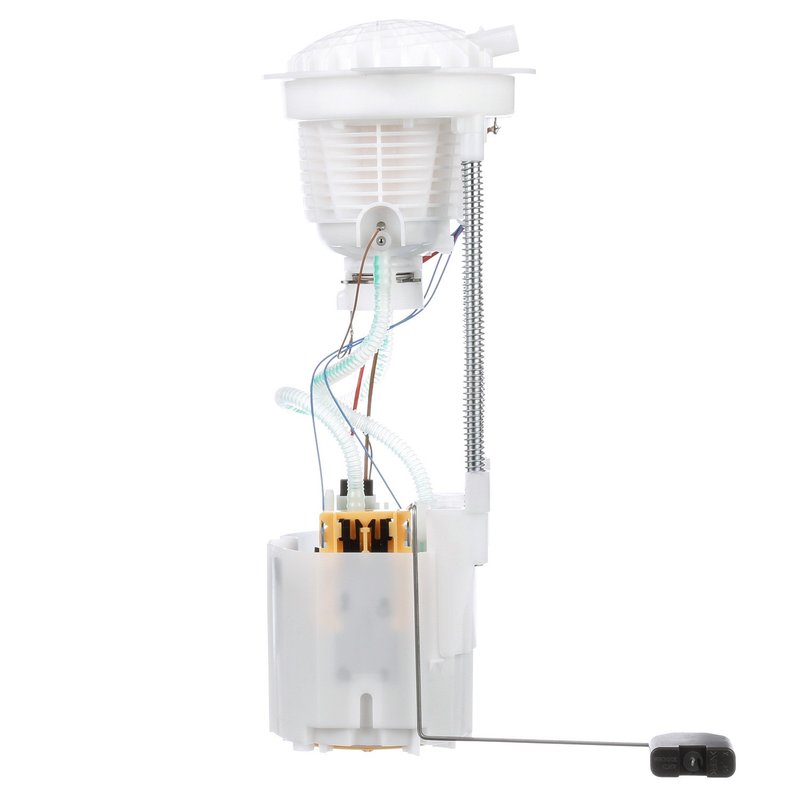

Delphi FG2117 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Dodge Ram 2500

The Delphi FG2117 fuel pump module assembly is designed specifically for Dodge Ram 2500 models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 volts operation
• Includes fuel level sender assembly with float arm
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Regulator and gasket/seal included for secure installation
• Designed for gasoline fuel systems with a maximum pressure of 65 psi
• Four male blade terminals for electrical connection
• Average flow rating of 48 liters per hour and system pressure of 43 psi
• Standard replacement grade compatible with Dodge Ram 2500

Detailed Product Description

The Delphi FG2117 fuel pump module assembly is an in-tank electric pump designed to meet the fuel delivery requirements of Dodge Ram 2500 trucks. Operating at 12 volts, this module features an internal strainer inlet to prevent debris from entering the fuel system and a quick connect outlet with a 0.375-inch outside diameter for secure fuel line attachment. The assembly includes a fuel level sender with a float arm, providing accurate fuel gauge readings. The integrated regulator maintains system pressure up to 65 psi, ensuring consistent fuel flow at an average of 48 liters per hour. Electrical connections are made via four male blade terminals, supporting reliable power delivery and signal transmission. The package includes a gasket and seal to ensure a leak-free installation.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pumps in Dodge Ram 2500 models
• Resolves fuel delivery problems such as engine sputtering or stalling
• Fixes inaccurate fuel level readings due to sender assembly failure
• Addresses low fuel pressure causing poor engine performance
• Eliminates fuel leaks with included gasket and seal components

Installation Notes and Tips

• Ensure the vehicle is depressurized and battery disconnected before installation
• Use the included gasket and seal to prevent fuel leaks
• Verify electrical connections match the four male blade terminals on the module
• Handle the float arm carefully to avoid damage during installation
• Confirm compatibility with Dodge Ram 2500 fuel system before replacement

Quality Assurance and Warranty

The Delphi FG2117 fuel pump module assembly is manufactured to meet standard replacement quality requirements. Each unit undergoes rigorous testing to ensure proper flow rate, pressure regulation, and electrical performance. While specific warranty details may vary, Delphi products typically include a limited warranty against defects in materials and workmanship when installed according to manufacturer guidelines.
