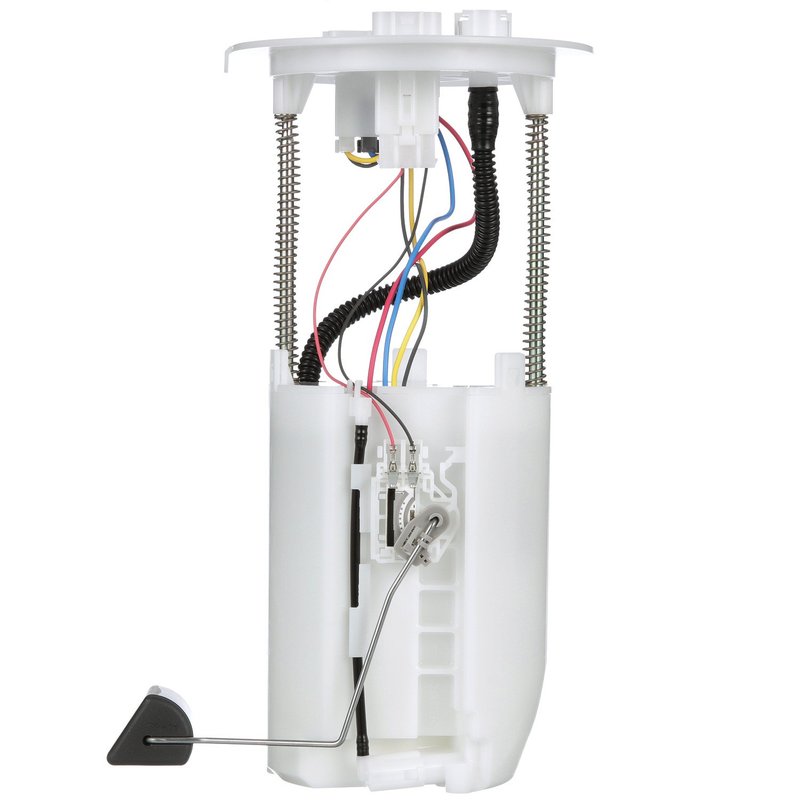

Delphi FG2130 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG2130 fuel pump module assembly is designed specifically for Toyota Tacoma models, providing reliable in-tank fuel delivery. This electric fuel pump module ensures consistent fuel pressure and includes an integrated fuel level sender assembly for accurate fuel gauge readings.

• 12.0 Volt electric fuel pump with 50 psi system pressure
• Includes internal strainer and fuel level sender assembly
• Push-in outlet type with 0.313 inch outside diameter
• Four male blade terminals for secure electrical connections
• Compatible with gasoline fuel systems

Technical Details and Features

The Delphi FG2130 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Toyota Tacoma vehicles. It features an internal strainer inlet type to prevent debris from entering the fuel system, enhancing pump longevity. The module includes a regulator to maintain consistent fuel pressure at 50 psi, ensuring optimal engine performance. The outlet is a single push-in type with a 0.313 inch outside diameter, designed for secure fuel line attachment. Electrical connections are made via four male blade terminals, supporting reliable current flow with an average draw of 10 amps. Resistance values range from 410 ohms when empty to 15 ohms when full, corresponding to the integrated fuel level sender assembly that provides accurate fuel level readings.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Toyota Tacoma models requiring a standard replacement fuel pump. It is intended for in-tank installation and is suitable for addressing common fuel delivery issues such as:

• Intermittent or no fuel delivery causing engine stalling
• Inaccurate fuel gauge readings due to faulty sender assembly
• Low fuel pressure affecting engine performance
• Fuel pump noise or failure from clogged strainers
• Electrical connection problems with worn terminals

Installation Notes and Tips

When installing the Delphi FG2130 fuel pump module assembly, ensure the vehicle’s fuel tank is properly depressurized and emptied to avoid spills. The module is designed for in-tank installation and does not include a gasket or lock ring, so reuse or replacement of these components may be necessary depending on the vehicle’s condition. Verify that the four male blade terminals align correctly with the vehicle’s wiring harness. The push-in outlet connection should be securely attached to prevent fuel leaks. Follow the included instruction sheet carefully to ensure proper installation and operation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG2130 is a standard replacement grade part, tested for durability and performance under typical operating conditions. While specific warranty details are not provided here, Delphi products generally come with a limited warranty covering defects in materials and workmanship. Consult the product packaging or Delphi’s official documentation for exact warranty terms.
