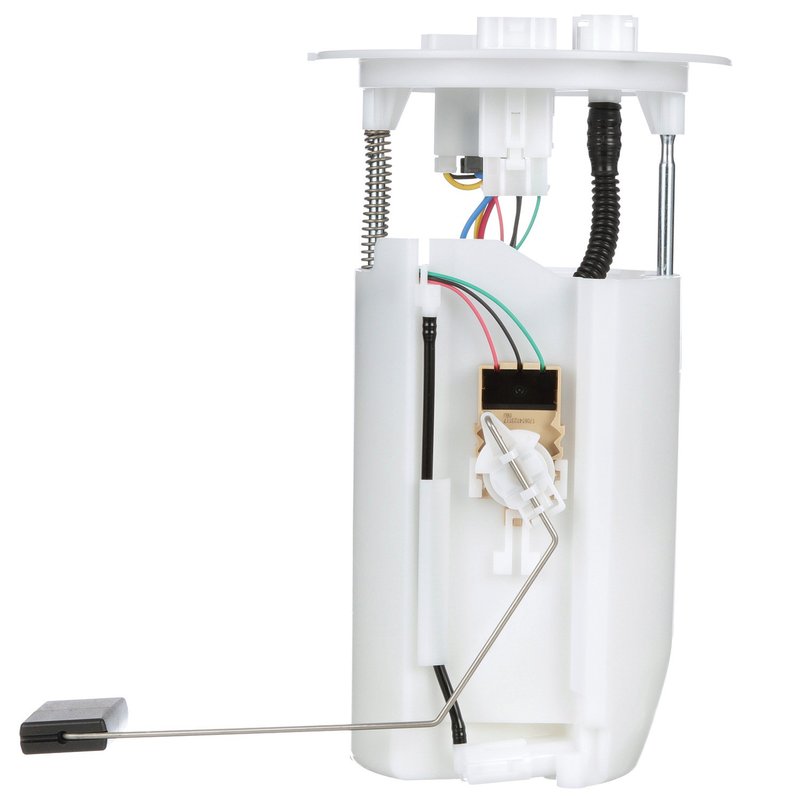

Delphi FG2133 Fuel Pump Module Assembly
| Brand | Delphi FG2133 |
|---|---|
| Outlet Outside Diameter | 0.313 |
| Voltage | 12.0 |
| Fuel Type | Gas |
| Regulator Included | Yes |
| Terminal Type | Blade |
| Gasket Or Seal Included | No |
| Terminal Quantity | 4 |
| Lock Ring Included | No |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Push in |
| Outlet Quantity | 1 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 460.0 |
| Resistance Ohms Full | 35.0 |
| Internal Or External Strainer | Internal |
| Average Current Draw | 10 |
| Pump Type | Electric |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel pump module assembly w/float arm, instruction sheet |
| Vapor Pressure Sensor | No |
| Product line | Discontinued |
| Fits | Lexus and Toyota · 12 vehicles |
OE heritage. Built with decades of original-equipment experience for service replacement.
Integrated module. Includes the pump, regulator, and fuel level sender in one assembly.
Gasoline system. Configured for 12-volt in-tank fuel delivery on standard replacement applications.
Cross-references 23070-31030, 23070-36010 and 77020-0E130 for the same application. See all 4.
Fuel Pump Module Assembly Overview
The Delphi FG2133 fuel pump module assembly is a standard replacement for select Lexus and Toyota applications. It combines an in-tank electric pump, fuel level sender assembly, and regulator in one unit for gasoline systems.
Key Features
- 12-volt electric fuel pump module for gasoline applications
- Includes fuel level sender assembly and regulator
- Internal strainer with inlet strainer included
- Blade terminals with male terminal design
- Push-in outlet connection for service replacement
- Standard replacement grade for select OE-style applications
Detailed Description
Delphi FG2133 is built as an in-tank fuel pump module assembly for vehicles that use a gasoline fuel system and integrated level sensing. The module includes a fuel level sender assembly, a regulator, and a strainer, helping consolidate key fuel delivery components into one replacement unit. Delphi draws on OE experience and supplier knowledge developed over decades of original-equipment production, and the FG2133 reflects that background in a service part format. This part cross-references Toyota and Lexus OE numbers such as 23070-31030 and 77020-0E130 for the same application.
Compatible With Lexus RX350, Toyota Highlander, and Lexus RX350L applications listed below. The Delphi FG2133 is also referenced by part number FG2133 for catalog and search use.
What It Is Used For
- Restoring fuel delivery when the original pump no longer maintains pressure
- Replacing a worn fuel level sender that causes inaccurate gauge readings
- Addressing fuel starvation caused by a failing in-tank pump module
- Replacing a regulator-equipped module in gasoline fuel systems
- Servicing an OE-style fuel pump assembly with integrated sender components
Installation Notes and Tips
Fits 2021-2022 Lexus RX350, N/A. Fits 2016-2020 Lexus RX350, N/A. Fits 2020 Lexus RX350L, N/A. Fits 2019 Lexus RX350L, N/A. Fits 2017-2019 Toyota Highlander, N/A. For 2016-2020 Lexus RX350 and 2020-2019 Lexus RX350L applications, clean the fuel tank before installation to reduce the risk of premature pump failure or seal problems. The fitment notes also recommend using fuel tank cleaning kit FC01 where specified.
Quality Assurance
Delphi builds this replacement part using OE heritage and knowledge developed over 100 years of original-equipment experience. The FG2133 is a standard replacement fuel pump module assembly for service use.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2022 | Lexus | RX350 | 3.5L | V6 | — |
| 2021 | Lexus | RX350 | 3.5L | V6 | — |
| 2020 | Lexus | RX350 | — | — | Fitment: Except Japan Built - Fuel tank contamination may cause premature fuel pump failure; clean fuel tank before installing replacement pump; suggest using fuel tank cleaning kit FC01.; Discontinued |
| 2020 | Lexus | RX350L | — | — | To 08/2019; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended.; Discontinued |
| 2019 | Lexus | RX350 | — | — | Fitment: Except Japan Built - Fuel tank contamination may cause premature fuel pump failure; clean fuel tank before installing replacement pump; suggest using fuel tank cleaning kit FC01.; Discontinued |
| 2019 | Lexus | RX350L | — | — | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2019 | Toyota | Highlander | — | — | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2018 | Lexus | RX350 | — | — | Fitment: Except Japan Built - Fuel tank contamination may cause premature fuel pump failure; clean fuel tank before installing replacement pump; suggest using fuel tank cleaning kit FC01.; Discontinued |
| 2018 | Toyota | Highlander | — | — | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2017 | Lexus | RX350 | — | — | Fitment: Except Japan Built - Fuel tank contamination may cause premature fuel pump failure; clean fuel tank before installing replacement pump; suggest using fuel tank cleaning kit FC01.; Discontinued |
| 2017 | Toyota | Highlander | — | — | Clean fuel tank before installing fuel pump to prevent future seal problems.; Discontinued |
| 2016 | Lexus | RX350 | — | — | Fitment: Except Japan Built - Fuel tank contamination may cause premature fuel pump failure; clean fuel tank before installing replacement pump; suggest using fuel tank cleaning kit FC01.; Discontinued |
