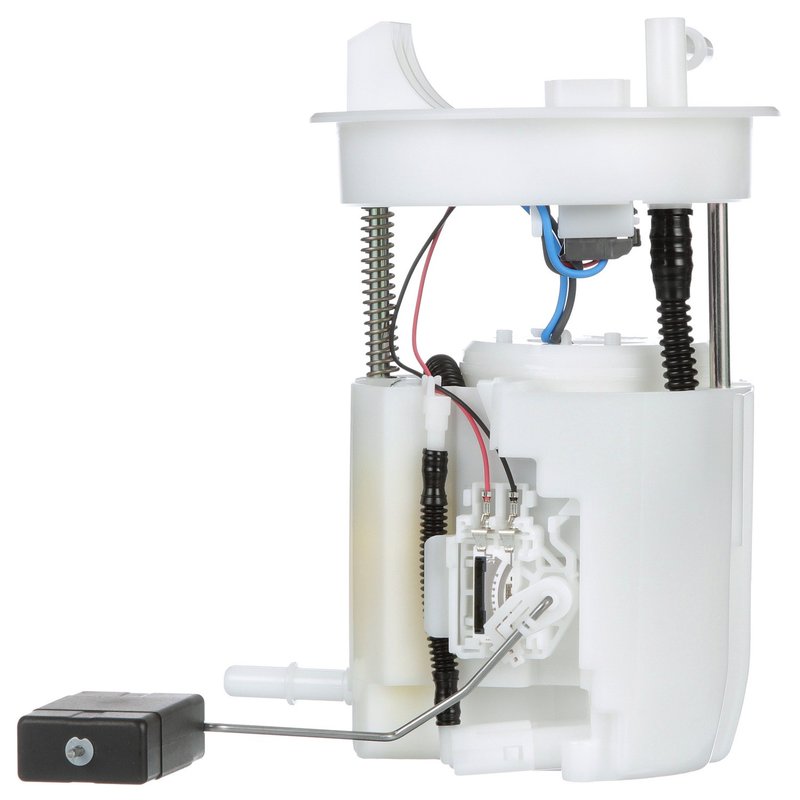

Delphi FG2134 Fuel Pump Module Assembly

Fuel Pump Module Assembly for Toyota 86 and Scion FR-S

Delphi FG2134 is an in-tank fuel pump module assembly for select Toyota 86 and Scion FR-S applications. It combines the electric pump, fuel level sender assembly, regulator, and strainer in one OE-style replacement package for direct fuel system service.

Key Features

• In-tank electric fuel pump module assembly
• 12-volt gasoline application with blade terminals
• Fuel pressure regulator included
• Fuel level sender assembly included
• Internal strainer included; quick-connect outlet
• Standard replacement design for OE-style service
• Maximum pressure rating of 73.0 and system pressure of 51 PSI
• Delphi FG2134 fuel pump module assembly for targeted fuel delivery repair

OE Heritage and Product Line Details

Delphi builds this fuel pump module assembly using OE-focused engineering developed from long-term supplier experience with major automakers. The brand line emphasizes aftermarket parts built from original equipment knowledge, with coverage across a wide range of vehicles and model years. Delphi FG2134 follows that approach with the pump, sender, regulator, and strainer integrated for service on the fuel delivery system.

Detailed Description

Compatible With 2013-2016 Scion FR-S and 2017-2020 Toyota 86, this fuel pump module assembly is built for in-tank installation and gasoline fuel systems. It features a 12.0-volt electric pump, a quick-connect outlet, one outlet with a 0.375 outside diameter, and a 4-terminal male blade connection. The module includes the fuel level sender assembly and internal strainer, while the gasket or seal and lock ring are not included. Delphi FG2134 is a direct-fit fuel system service part for drivers replacing a worn or failing module on the Scion FR-S or Toyota 86.

This part cross-references Denso E9151M for the same application.

Common Problems This Part Can Address

• Hard starting caused by weak fuel delivery
• Engine hesitation or stalling from inconsistent pump output
• Incorrect fuel gauge readings from a failing sender assembly
• Low fuel pressure related to pump wear
• Fuel delivery noise or reduced flow from an aging in-tank module

Installation Notes and Tips

Before installing the fuel pump module assembly, clean the fuel tank thoroughly to help prevent future seal problems. Verify connector style, outlet type, and fuel system specifications before installation. Because the gasket or seal and lock ring are not included, confirm the vehicle’s service requirements before beginning the repair.

Quality Assurance

Delphi draws on more than a century of OE experience and supplier knowledge used by leading automakers. FG2134 is a standard replacement fuel pump module assembly built around OE-style fitment and fuel system requirements for the listed Toyota 86 and Scion FR-S applications.
