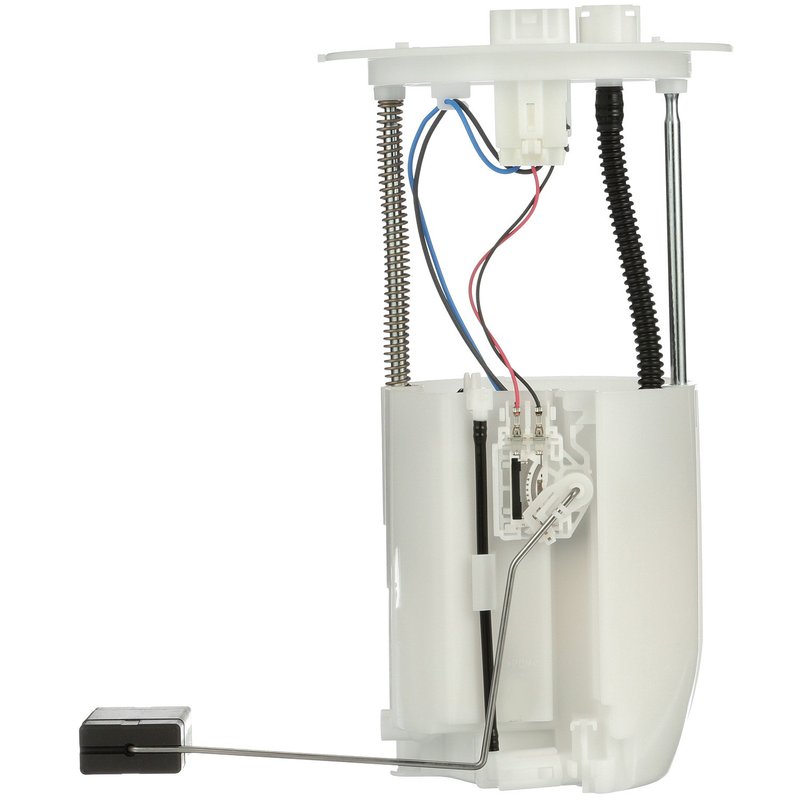

Delphi FG2144 Fuel Pump Module Assembly
| Brand | Delphi FG2144 |
|---|---|
| Average Current Draw | 10 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Outlet Outside Diameter | 0.313 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 410.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Toyota · 6 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Electric in-tank design. Delivers consistent fuel flow with a quick-connect outlet.
OE heritage. Built from Delphi's long experience supplying top automakers.
Cross-references 77020-0E090, CFG2144 and SP9179M for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Highlander
The Delphi FG2144 fuel pump module assembly is a standard replacement for select Toyota Highlander applications. It combines the in-tank pump, fuel level sender assembly, regulator, and strainer in one unit to restore fuel delivery and tank level reporting.
- Fits 2014-2019 Toyota Highlander
- 12.0V electric in-tank fuel pump module assembly
- Fuel type: gas
- Regulator included for integrated fuel system service
- Fuel level sender assembly included
- Strainer included with internal strainer design
- Quick-connect outlet with one outlet port
- Blade terminals, 4-terminal male connection
- System pressure: 44 psi
- Average current draw: 10 amps
OE-Style Fuel System Replacement
Delphi FG2144 is built from OE heritage and application knowledge developed through long-term supplier experience with major automakers. This fuel pump module assembly is engineered for gas-powered Toyota Highlander models from 2014 through 2019 and is a direct-fit service part for restoring consistent fuel pressure and sender operation. Part number FG2144 is also referenced by cross numbers 77020-0E090 and SP9179M for the same application.
Common Problems This Part Can Address
- Hard starting caused by weak or inconsistent fuel delivery
- Engine hesitation or stalling related to low fuel pressure
- Inaccurate fuel gauge readings from a worn sender assembly
- Fuel starvation from a restricted or failing in-tank pump module
- Fuel system service needs on a Toyota Highlander with an aging module
Installation Notes and Tips
Clean the fuel tank before installing the fuel pump to prevent future seal problems, as noted for this application. Verify the outlet style, terminal layout, and system pressure match the original unit before installation. This module uses an in-tank electric pump with a quick-connect outlet and does not include a gasket or seal, so inspect the tank sealing components during service.
Quality Assurance
Delphi draws on OE-level engineering experience and a broad aftermarket portfolio to support replacement parts for a wide range of vehicles and model years. FG2144 is a standard replacement fuel pump module assembly for Toyota Highlander fuel system repair.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Toyota | Highlander | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2018 | Toyota | Highlander | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2017 | Toyota | Highlander | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2016 | Toyota | Highlander | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2015 | Toyota | Highlander | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2014 | Toyota | Highlander | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
