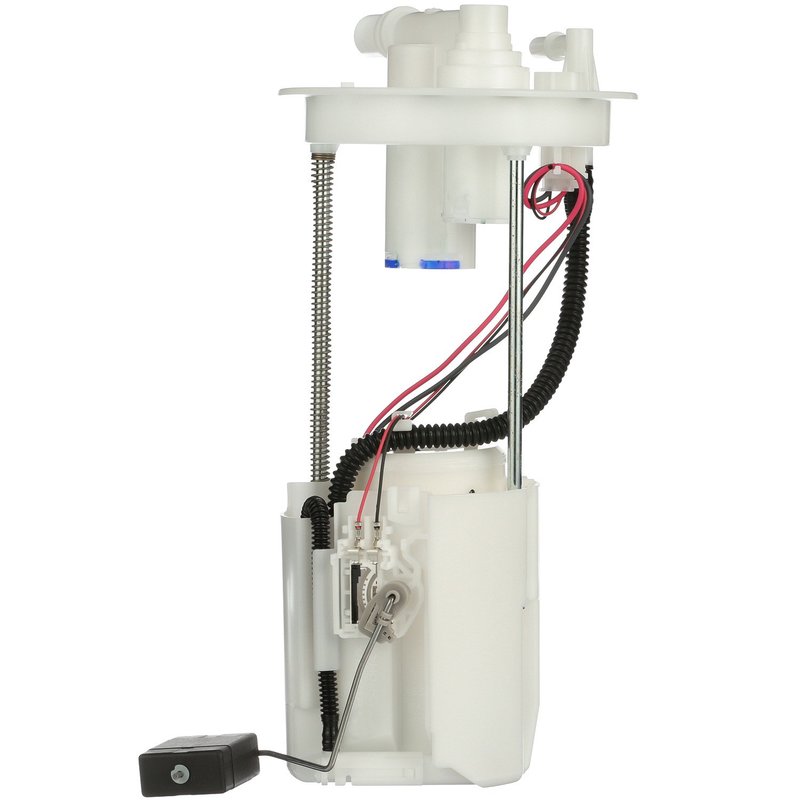

Delphi FG2145 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Acura ILX

The Delphi FG2145 fuel pump module assembly is designed specifically for Acura ILX models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components for a seamless fit.

Key Features of Delphi FG2145 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel flow
• Operates on 12.0 volts, compatible with standard automotive electrical systems
• Designed for gasoline fuel type
• Includes built-in fuel pressure regulator for stable fuel pressure
• Blade-type terminals with four male connectors for secure electrical connections
• Comes with gasket, seal, and lock ring for proper installation and leak prevention
• Internal strainer inlet and included strainer to filter fuel contaminants
• Quick connect outlet type with two outlets for efficient fuel delivery
• In-tank pump design for direct fuel supply and reduced noise
• Fuel level sender assembly with float arm included for accurate fuel gauge readings
• Standard replacement grade suitable for maintaining factory performance
• Average current draw of 10 amps ensuring efficient power consumption

Detailed Description of the Delphi FG2145 Fuel Pump Module

The Delphi FG2145 fuel pump module assembly is engineered to meet the specific requirements of the Acura ILX fuel system. This electric in-tank pump features an internal strainer inlet that helps prevent debris from entering the fuel system, protecting engine components. The integrated fuel pressure regulator maintains consistent fuel pressure, optimizing engine performance and fuel efficiency. With blade-type terminals and four male connectors, the electrical connections are secure and reliable. The quick connect outlet design with two outlets facilitates straightforward installation and fuel flow management. Additionally, the included fuel level sender assembly with float arm provides accurate fuel level data to the vehicle’s dashboard, ensuring drivers have precise fuel monitoring.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump modules in Acura ILX vehicles
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Eliminates fuel delivery interruptions caused by clogged or damaged strainers
• Addresses electrical connection issues with blade terminal design

Installation Notes and Tips

When installing the Delphi FG2145 fuel pump module assembly, ensure the gasket and seal are properly seated to prevent fuel leaks. The lock ring included with the module secures the assembly firmly in the fuel tank. Verify that the blade terminals are connected correctly to avoid electrical faults. It is recommended to inspect the fuel tank for debris before installation to prolong the life of the new pump. Follow vehicle-specific service manual instructions for safe removal and installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It is a standard replacement grade part designed to restore original fuel system performance in Acura ILX models. While specific warranty details are not provided, Delphi products typically come with manufacturer-backed quality assurance to ensure reliability and durability.
