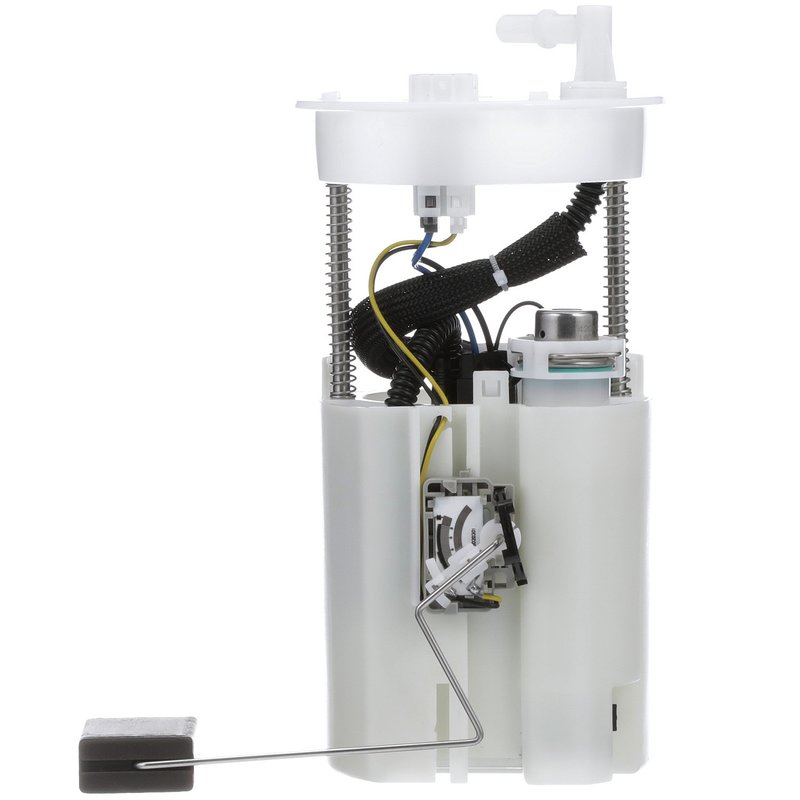

Delphi FG2155 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Acura and Honda Vehicles

The Delphi FG2155 fuel pump module assembly is designed to provide consistent fuel delivery for select Acura and Honda models. Engineered for in-tank installation, this electric fuel pump module ensures proper fuel pressure and flow to maintain engine performance.

Key Features of the Delphi FG2155 Fuel Pump Module

• Electric pump type with a 12.0-volt rating for efficient operation
• Includes an internal strainer and fuel level sender assembly for accurate fuel monitoring
• Regulator included to maintain system pressure at 51 psi with a maximum pressure of 59 psi
• Quick connect outlet with a 0.375-inch outside diameter for secure fuel line attachment
• Blade-type male terminals with four connections for reliable electrical contact
• Comes with gasket, seal, and lock ring to ensure proper sealing and installation
• Average flow rating of 31 and average current draw of 6 amps for balanced performance

Detailed Description of the Delphi FG2155 Fuel Pump Module Assembly

This fuel pump module assembly is designed specifically for in-tank installation in Acura Crosstour and Honda RLX models. The electric pump operates at 12 volts and features an internal strainer to prevent debris from entering the fuel system. The included fuel level sender assembly provides accurate fuel level readings, while the regulator maintains consistent system pressure at 51 psi, with a maximum pressure rating of 59 psi. The quick connect outlet with a 0.375-inch diameter allows for easy and secure fuel line connections. Four blade-type male terminals ensure stable electrical connections, supporting the pump's average current draw of 6 amps. The package includes essential seals, a gasket, and a lock ring to facilitate proper installation and prevent leaks.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Acura Crosstour and Honda RLX vehicles
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions caused by clogged strainers or damaged pump components
• Restores proper fuel flow to improve engine performance and drivability

Installation Notes and Tips

Ensure the vehicle’s fuel system is depressurized before removing the old fuel pump module. The Delphi FG2155 is designed for in-tank installation and includes a lock ring for secure mounting. Verify that all seals and gaskets are properly seated to prevent fuel leaks. Use the blade-type male terminals to connect the electrical wiring securely. Follow manufacturer torque specifications for the lock ring and fittings to maintain system integrity.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG2155 is a standard replacement grade part, backed by Delphi’s quality control processes. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure reliable operation in Acura Crosstour and Honda RLX vehicles.
